Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,416,646
ssj_ops@100% per JVM = 97,005
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,510,618
Calibration 2     12,501,232
Calibration 3     12,470,137
ssj_ops@calibrated=12,485,684
100% 99.4% 12,485,684 12,416,646
90% 90.1% 11,237,116 11,246,869
80% 79.9% 9,988,547 9,982,111
70% 69.9% 8,739,979 8,732,737
60% 60.0% 7,491,411 7,493,624
50% 50.0% 6,242,842 6,240,439
40% 40.0% 4,994,274 4,990,981
30% 30.0% 3,745,705 3,749,359
20% 20.0% 2,497,137 2,499,258
10% 10.0% 1,248,568 1,248,726
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node04.001 93,748
SLES12SP5-Node04.002 99,675
SLES12SP5-Node04.003 96,737
SLES12SP5-Node04.004 99,101
SLES12SP5-Node04.005 97,384
SLES12SP5-Node04.006 97,263
SLES12SP5-Node04.007 97,156
SLES12SP5-Node04.008 96,951
SLES12SP5-Node04.009 97,298
SLES12SP5-Node04.010 97,670
SLES12SP5-Node04.011 93,947
SLES12SP5-Node04.012 100,697
SLES12SP5-Node04.013 98,144

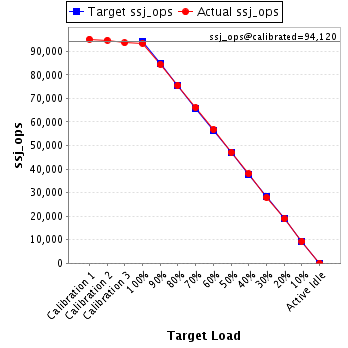

SLES12SP5-Node04.014 93,397
SLES12SP5-Node04.015 96,144
SLES12SP5-Node04.016 94,868
SLES12SP5-Node04.017 100,594
SLES12SP5-Node04.018 99,914
SLES12SP5-Node04.019 95,172
SLES12SP5-Node04.020 95,934
SLES12SP5-Node04.021 100,310
SLES12SP5-Node04.022 92,182
SLES12SP5-Node04.023 98,608
SLES12SP5-Node04.024 99,120
SLES12SP5-Node04.025 97,742
SLES12SP5-Node04.026 92,702
SLES12SP5-Node04.027 97,817
SLES12SP5-Node04.028 93,535
SLES12SP5-Node04.029 97,558
SLES12SP5-Node04.030 96,224
SLES12SP5-Node04.031 97,681
SLES12SP5-Node04.032 94,925
SLES12SP5-Node04.033 99,541
SLES12SP5-Node04.034 95,291
SLES12SP5-Node04.035 98,704
SLES12SP5-Node04.036 100,001
SLES12SP5-Node04.037 99,237
SLES12SP5-Node04.038 94,418
SLES12SP5-Node04.039 96,795
SLES12SP5-Node04.040 94,004
SLES12SP5-Node04.041 99,177
SLES12SP5-Node04.042 95,949
SLES12SP5-Node04.043 100,280
SLES12SP5-Node04.044 93,351
SLES12SP5-Node04.045 94,431
SLES12SP5-Node04.046 98,235
SLES12SP5-Node04.047 100,175
SLES12SP5-Node04.048 97,390
SLES12SP5-Node04.049 93,442
SLES12SP5-Node04.050 102,129
SLES12SP5-Node04.051 97,428
SLES12SP5-Node04.052 97,674
SLES12SP5-Node04.053 100,827
SLES12SP5-Node04.054 97,543
SLES12SP5-Node04.055 99,313
SLES12SP5-Node04.056 96,192
SLES12SP5-Node04.057 95,562
SLES12SP5-Node04.058 99,531
SLES12SP5-Node04.059 97,071
SLES12SP5-Node04.060 92,862
SLES12SP5-Node04.061 98,946
SLES12SP5-Node04.062 93,435
SLES12SP5-Node04.063 94,775
SLES12SP5-Node04.064 96,794
SLES12SP5-Node04.065 98,727
SLES12SP5-Node04.066 99,720
SLES12SP5-Node04.067 93,193
SLES12SP5-Node04.068 97,372
SLES12SP5-Node04.069 94,254

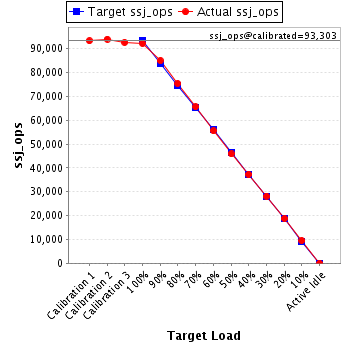

SLES12SP5-Node04.070 92,202
SLES12SP5-Node04.071 91,125

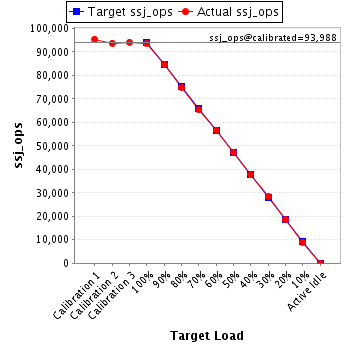

SLES12SP5-Node04.072 93,777
SLES12SP5-Node04.073 100,020
SLES12SP5-Node04.074 96,041
SLES12SP5-Node04.075 98,047
SLES12SP5-Node04.076 98,710
SLES12SP5-Node04.077 99,740

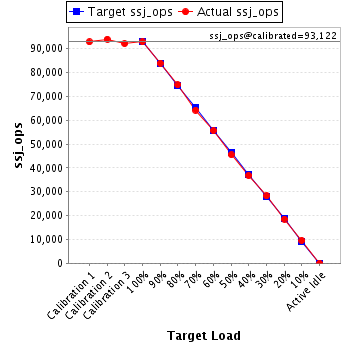

SLES12SP5-Node04.078 92,896
SLES12SP5-Node04.079 100,086
SLES12SP5-Node04.080 98,187
SLES12SP5-Node04.081 93,929
SLES12SP5-Node04.082 100,569
SLES12SP5-Node04.083 96,568

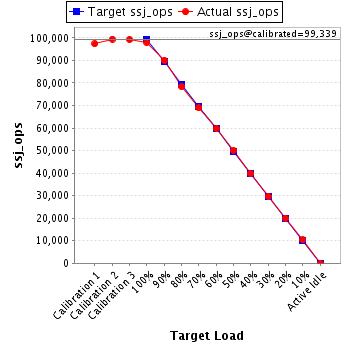

SLES12SP5-Node04.084 97,893
SLES12SP5-Node04.085 98,235
SLES12SP5-Node04.086 98,516
SLES12SP5-Node04.087 92,675
SLES12SP5-Node04.088 98,190
SLES12SP5-Node04.089 98,607
SLES12SP5-Node04.090 96,079
SLES12SP5-Node04.091 96,446
SLES12SP5-Node04.092 93,096
SLES12SP5-Node04.093 96,377

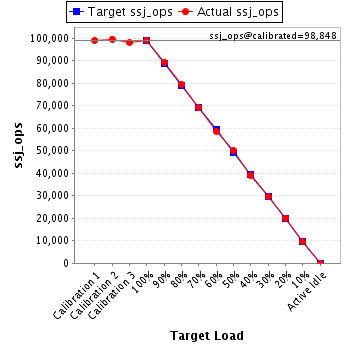

SLES12SP5-Node04.094 99,165
SLES12SP5-Node04.095 94,687
SLES12SP5-Node04.096 93,835
SLES12SP5-Node04.097 100,897
SLES12SP5-Node04.098 97,962
SLES12SP5-Node04.099 95,299
SLES12SP5-Node04.100 97,053
SLES12SP5-Node04.101 94,135
SLES12SP5-Node04.102 99,538
SLES12SP5-Node04.103 93,451
SLES12SP5-Node04.104 96,727
SLES12SP5-Node04.105 99,913
SLES12SP5-Node04.106 100,923
SLES12SP5-Node04.107 99,444
SLES12SP5-Node04.108 97,781
SLES12SP5-Node04.109 101,171
SLES12SP5-Node04.110 99,212

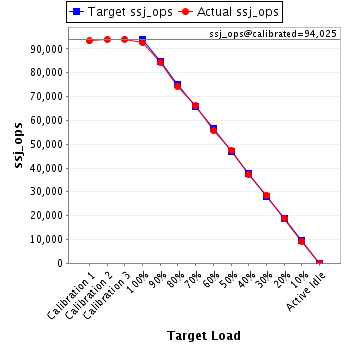

SLES12SP5-Node04.111 92,629
SLES12SP5-Node04.112 96,944
SLES12SP5-Node04.113 91,177
SLES12SP5-Node04.114 100,736
SLES12SP5-Node04.115 97,861
SLES12SP5-Node04.116 100,914
SLES12SP5-Node04.117 99,160
SLES12SP5-Node04.118 96,899
SLES12SP5-Node04.119 96,925
SLES12SP5-Node04.120 99,682
SLES12SP5-Node04.121 96,473
SLES12SP5-Node04.122 92,613
SLES12SP5-Node04.123 93,695
SLES12SP5-Node04.124 97,568
SLES12SP5-Node04.125 95,569
SLES12SP5-Node04.126 96,013
SLES12SP5-Node04.127 99,885
SLES12SP5-Node04.128 98,730
ssj_ops@100% 12,416,646
ssj_ops@100% per JVM 97,005

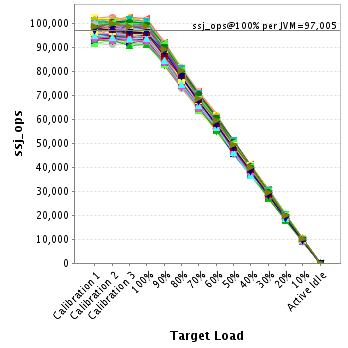

Graph of per-instance results

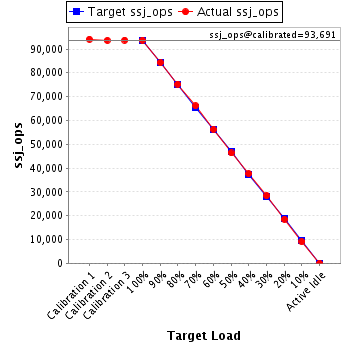

JVM 'SLES12SP5-Node04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,132
Calibration 2     93,618
Calibration 3     93,764
ssj_ops@calibrated=93,691
100% 100.1% 93,691 93,748
90% 90.0% 84,322 84,323
80% 80.3% 74,953 75,234
70% 70.6% 65,584 66,125
60% 60.1% 56,215 56,279
50% 49.5% 46,846 46,332
40% 40.1% 37,476 37,599
30% 30.3% 28,107 28,365
20% 19.8% 18,738 18,512
10% 9.7% 9,369 9,062
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,077
Calibration 2     100,148
Calibration 3     99,888
ssj_ops@calibrated=100,018
100% 99.7% 100,018 99,675
90% 91.6% 90,016 91,635
80% 80.0% 80,014 79,969
70% 70.7% 70,013 70,747
60% 59.7% 60,011 59,746
50% 50.2% 50,009 50,229
40% 39.9% 40,007 39,896
30% 29.6% 30,005 29,640
20% 19.8% 20,004 19,809
10% 10.0% 10,002 9,979
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,343
Calibration 2     97,678
Calibration 3     97,787
ssj_ops@calibrated=97,732
100% 99.0% 97,732 96,737
90% 89.8% 87,959 87,725
80% 80.8% 78,186 78,956
70% 70.7% 68,413 69,141
60% 59.5% 58,639 58,110
50% 50.6% 48,866 49,450
40% 40.2% 39,093 39,240
30% 30.3% 29,320 29,583
20% 19.8% 19,546 19,306
10% 10.4% 9,773 10,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,388
Calibration 2     100,261
Calibration 3     99,540
ssj_ops@calibrated=99,901
100% 99.2% 99,901 99,101
90% 89.7% 89,911 89,583
80% 78.8% 79,920 78,730
70% 69.8% 69,930 69,682
60% 60.0% 59,940 59,988
50% 50.0% 49,950 49,953
40% 39.9% 39,960 39,894
30% 29.8% 29,970 29,721
20% 20.3% 19,980 20,261
10% 10.0% 9,990 9,962
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,873
Calibration 2     97,679
Calibration 3     98,038
ssj_ops@calibrated=97,859
100% 99.5% 97,859 97,384
90% 90.0% 88,073 88,087
80% 79.8% 78,287 78,084
70% 70.2% 68,501 68,680
60% 59.8% 58,715 58,509
50% 50.1% 48,929 49,074
40% 40.3% 39,143 39,425
30% 30.2% 29,358 29,521
20% 20.0% 19,572 19,570
10% 9.7% 9,786 9,524
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,482
Calibration 2     97,836
Calibration 3     97,050
ssj_ops@calibrated=97,443
100% 99.8% 97,443 97,263
90% 90.5% 87,699 88,195
80% 80.3% 77,954 78,208
70% 70.0% 68,210 68,224
60% 60.8% 58,466 59,208
50% 50.0% 48,721 48,727
40% 39.8% 38,977 38,756
30% 30.1% 29,233 29,348
20% 20.6% 19,489 20,118
10% 9.7% 9,744 9,465
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,829
Calibration 2     97,168
Calibration 3     97,317
ssj_ops@calibrated=97,242
100% 99.9% 97,242 97,156
90% 89.4% 87,518 86,902
80% 80.0% 77,794 77,749
70% 70.4% 68,069 68,474
60% 59.7% 58,345 58,070
50% 50.0% 48,621 48,620
40% 39.4% 38,897 38,314
30% 30.3% 29,173 29,512
20% 20.4% 19,448 19,821
10% 9.9% 9,724 9,591
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,639
Calibration 2     98,661
Calibration 3     98,029
ssj_ops@calibrated=98,345
100% 98.6% 98,345 96,951
90% 90.1% 88,510 88,646
80% 80.3% 78,676 79,007
70% 70.4% 68,841 69,269
60% 59.6% 59,007 58,580
50% 49.3% 49,172 48,533
40% 39.0% 39,338 38,324
30% 30.0% 29,503 29,487
20% 20.0% 19,669 19,707
10% 10.2% 9,834 10,050
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,059
Calibration 2     98,001
Calibration 3     97,499
ssj_ops@calibrated=97,750
100% 99.5% 97,750 97,298
90% 90.7% 87,975 88,629
80% 79.1% 78,200 77,314
70% 69.4% 68,425 67,872
60% 59.8% 58,650 58,481
50% 51.0% 48,875 49,842
40% 40.5% 39,100 39,589
30% 29.9% 29,325 29,270
20% 20.1% 19,550 19,600
10% 10.1% 9,775 9,858
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,506
Calibration 2     98,042
Calibration 3     98,940
ssj_ops@calibrated=98,491
100% 99.2% 98,491 97,670
90% 89.8% 88,642 88,401
80% 80.3% 78,793 79,114
70% 69.7% 68,944 68,629
60% 59.2% 59,095 58,330
50% 50.0% 49,245 49,265
40% 40.7% 39,396 40,095
30% 29.9% 29,547 29,432
20% 19.9% 19,698 19,645
10% 10.1% 9,849 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,045
Calibration 2     94,672
Calibration 3     93,935
ssj_ops@calibrated=94,303
100% 99.6% 94,303 93,947
90% 90.1% 84,873 84,949
80% 80.0% 75,443 75,448
70% 70.3% 66,012 66,297
60% 59.4% 56,582 55,978
50% 51.1% 47,152 48,194
40% 39.3% 37,721 37,051
30% 29.9% 28,291 28,180
20% 19.7% 18,861 18,568
10% 10.2% 9,430 9,608
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,771
Calibration 2     101,072
Calibration 3     101,395
ssj_ops@calibrated=101,234
100% 99.5% 101,234 100,697
90% 90.1% 91,110 91,180
80% 80.3% 80,987 81,268
70% 69.5% 70,864 70,360
60% 60.7% 60,740 61,404
50% 50.1% 50,617 50,675
40% 40.0% 40,493 40,479
30% 30.3% 30,370 30,631
20% 20.2% 20,247 20,495
10% 9.8% 10,123 9,946
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,621
Calibration 2     99,501
Calibration 3     98,196
ssj_ops@calibrated=98,848
100% 99.3% 98,848 98,144
90% 90.2% 88,964 89,120
80% 79.4% 79,079 78,522
70% 69.8% 69,194 68,986
60% 59.9% 59,309 59,179
50% 50.5% 49,424 49,949
40% 40.4% 39,539 39,937
30% 30.1% 29,655 29,734
20% 20.3% 19,770 20,036
10% 10.3% 9,885 10,225
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,137
Calibration 2     94,682
Calibration 3     93,558
ssj_ops@calibrated=94,120
100% 99.2% 94,120 93,397
90% 89.7% 84,708 84,406
80% 80.2% 75,296 75,447
70% 70.3% 65,884 66,137
60% 60.3% 56,472 56,799
50% 50.1% 47,060 47,107
40% 40.4% 37,648 38,017
30% 29.7% 28,236 27,915
20% 20.0% 18,824 18,862
10% 9.9% 9,412 9,296
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,849
Calibration 2     97,273
Calibration 3     97,032
ssj_ops@calibrated=97,152
100% 99.0% 97,152 96,144
90% 90.3% 87,437 87,752
80% 78.7% 77,722 76,487
70% 69.6% 68,007 67,588
60% 59.7% 58,291 57,956
50% 49.3% 48,576 47,895
40% 40.0% 38,861 38,867
30% 30.3% 29,146 29,391
20% 20.0% 19,430 19,437
10% 10.0% 9,715 9,694
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,236
Calibration 2     95,358
Calibration 3     95,961
ssj_ops@calibrated=95,660
100% 99.2% 95,660 94,868
90% 90.6% 86,094 86,684
80% 78.7% 76,528 75,273
70% 68.9% 66,962 65,948
60% 59.9% 57,396 57,309
50% 49.9% 47,830 47,766
40% 40.1% 38,264 38,316
30% 30.1% 28,698 28,787
20% 19.6% 19,132 18,707
10% 10.2% 9,566 9,716
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,273
Calibration 2     100,761
Calibration 3     101,109
ssj_ops@calibrated=100,935
100% 99.7% 100,935 100,594
90% 90.0% 90,841 90,813
80% 80.2% 80,748 80,903
70% 69.7% 70,654 70,334
60% 59.9% 60,561 60,480
50% 50.4% 50,467 50,874
40% 40.0% 40,374 40,396
30% 30.4% 30,280 30,694
20% 19.6% 20,187 19,812
10% 10.3% 10,093 10,350
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,569
Calibration 2     99,873
Calibration 3     98,733
ssj_ops@calibrated=99,303
100% 100.6% 99,303 99,914
90% 89.2% 89,373 88,578
80% 79.7% 79,442 79,117
70% 69.5% 69,512 69,050
60% 59.8% 59,582 59,406
50% 50.3% 49,651 49,930
40% 39.9% 39,721 39,649
30% 30.0% 29,791 29,783
20% 19.9% 19,861 19,776
10% 9.9% 9,930 9,812
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,933
Calibration 2     97,406
Calibration 3     96,403
ssj_ops@calibrated=96,904
100% 98.2% 96,904 95,172
90% 90.8% 87,214 87,946
80% 79.9% 77,523 77,454
70% 71.1% 67,833 68,902
60% 60.9% 58,143 59,027
50% 50.4% 48,452 48,798
40% 40.0% 38,762 38,761
30% 30.7% 29,071 29,762
20% 20.5% 19,381 19,878
10% 9.9% 9,690 9,545
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,266
Calibration 2     95,384
Calibration 3     95,873
ssj_ops@calibrated=95,628
100% 100.3% 95,628 95,934
90% 91.3% 86,065 87,334
80% 79.9% 76,503 76,391
70% 70.7% 66,940 67,580
60% 59.8% 57,377 57,192
50% 50.4% 47,814 48,236
40% 39.1% 38,251 37,356
30% 30.4% 28,688 29,042
20% 20.2% 19,126 19,314
10% 9.9% 9,563 9,487
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,516
Calibration 2     101,206
Calibration 3     100,317
ssj_ops@calibrated=100,762
100% 99.6% 100,762 100,310
90% 89.7% 90,685 90,363
80% 79.3% 80,609 79,920
70% 69.3% 70,533 69,819
60% 60.6% 60,457 61,017
50% 50.2% 50,381 50,577
40% 39.7% 40,305 40,046
30% 29.7% 30,228 29,954
20% 20.1% 20,152 20,233
10% 9.8% 10,076 9,883
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,625
Calibration 2     91,100
Calibration 3     91,649
ssj_ops@calibrated=91,375
100% 100.9% 91,375 92,182
90% 90.7% 82,237 82,844
80% 79.7% 73,100 72,871
70% 70.2% 63,962 64,101
60% 60.4% 54,825 55,208
50% 49.7% 45,687 45,438
40% 40.1% 36,550 36,621
30% 30.1% 27,412 27,521
20% 20.0% 18,275 18,315
10% 10.3% 9,137 9,392
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,300
Calibration 2     99,212
Calibration 3     99,018
ssj_ops@calibrated=99,115
100% 99.5% 99,115 98,608
90% 89.7% 89,203 88,943
80% 80.8% 79,292 80,055
70% 69.3% 69,380 68,695
60% 60.0% 59,469 59,480
50% 50.2% 49,557 49,727
40% 40.0% 39,646 39,616
30% 30.0% 29,734 29,739
20% 20.4% 19,823 20,187
10% 9.9% 9,911 9,824
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,150
Calibration 2     100,214
Calibration 3     101,431
ssj_ops@calibrated=100,822
100% 98.3% 100,822 99,120
90% 91.0% 90,740 91,786
80% 79.9% 80,658 80,565
70% 70.2% 70,576 70,780
60% 60.1% 60,493 60,581
50% 50.1% 50,411 50,527
40% 40.0% 40,329 40,281
30% 29.5% 30,247 29,763
20% 20.2% 20,164 20,345
10% 9.8% 10,082 9,897
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,957
Calibration 2     99,509
Calibration 3     98,963
ssj_ops@calibrated=99,236
100% 98.5% 99,236 97,742
90% 91.0% 89,313 90,279
80% 79.6% 79,389 78,943
70% 70.3% 69,465 69,727
60% 59.8% 59,542 59,383
50% 50.9% 49,618 50,499
40% 39.6% 39,694 39,248
30% 30.3% 29,771 30,065
20% 20.0% 19,847 19,833
10% 10.1% 9,924 10,037
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,175
Calibration 2     92,515
Calibration 3     92,070
ssj_ops@calibrated=92,293
100% 100.4% 92,293 92,702
90% 89.2% 83,063 82,368
80% 79.5% 73,834 73,394
70% 70.1% 64,605 64,731
60% 59.6% 55,376 54,983
50% 49.4% 46,146 45,637
40% 40.1% 36,917 37,052
30% 30.3% 27,688 27,997
20% 19.7% 18,459 18,165
10% 10.0% 9,229 9,192
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,789
Calibration 2     98,020
Calibration 3     98,902
ssj_ops@calibrated=98,461
100% 99.3% 98,461 97,817
90% 89.8% 88,615 88,450
80% 80.7% 78,769 79,472
70% 70.0% 68,923 68,930
60% 60.4% 59,077 59,476
50% 49.5% 49,231 48,783
40% 39.5% 39,384 38,931
30% 30.1% 29,538 29,595
20% 19.9% 19,692 19,592
10% 10.1% 9,846 9,898
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,917
Calibration 2     93,485
Calibration 3     93,025
ssj_ops@calibrated=93,255
100% 100.3% 93,255 93,535
90% 90.4% 83,930 84,298
80% 81.2% 74,604 75,714
70% 70.5% 65,279 65,763
60% 60.0% 55,953 55,986
50% 50.5% 46,628 47,047
40% 40.1% 37,302 37,357
30% 30.4% 27,977 28,337
20% 20.1% 18,651 18,720
10% 10.0% 9,326 9,279
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,348
Calibration 2     98,113
Calibration 3     97,798
ssj_ops@calibrated=97,956
100% 99.6% 97,956 97,558
90% 89.9% 88,160 88,031
80% 80.4% 78,365 78,761
70% 69.3% 68,569 67,906
60% 59.6% 58,773 58,360
50% 49.2% 48,978 48,170
40% 39.9% 39,182 39,104
30% 30.7% 29,387 30,046
20% 19.9% 19,591 19,483
10% 9.8% 9,796 9,571
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,816
Calibration 2     96,557
Calibration 3     95,711
ssj_ops@calibrated=96,134
100% 100.1% 96,134 96,224
90% 90.0% 86,521 86,480
80% 80.0% 76,907 76,874
70% 69.5% 67,294 66,861
60% 59.8% 57,680 57,478
50% 49.4% 48,067 47,536
40% 39.8% 38,454 38,236
30% 29.7% 28,840 28,549
20% 20.0% 19,227 19,228
10% 10.2% 9,613 9,800
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,323
Calibration 2     98,626
Calibration 3     98,054
ssj_ops@calibrated=98,340
100% 99.3% 98,340 97,681
90% 90.0% 88,506 88,508
80% 79.8% 78,672 78,492
70% 69.9% 68,838 68,722
60% 58.6% 59,004 57,654
50% 50.4% 49,170 49,527
40% 39.7% 39,336 39,058
30% 30.4% 29,502 29,882
20% 20.1% 19,668 19,762
10% 10.1% 9,834 9,954
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,921
Calibration 2     96,013
Calibration 3     96,412
ssj_ops@calibrated=96,213
100% 98.7% 96,213 94,925
90% 91.5% 86,591 88,035
80% 79.8% 76,970 76,797
70% 70.6% 67,349 67,880
60% 60.6% 57,728 58,283
50% 50.5% 48,106 48,600
40% 39.8% 38,485 38,248
30% 29.0% 28,864 27,925
20% 20.1% 19,243 19,359
10% 10.4% 9,621 9,962
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,625
Calibration 2     99,160
Calibration 3     99,367
ssj_ops@calibrated=99,263
100% 100.3% 99,263 99,541
90% 90.9% 89,337 90,187
80% 80.2% 79,410 79,624
70% 69.3% 69,484 68,766
60% 60.0% 59,558 59,589
50% 49.7% 49,632 49,333
40% 39.4% 39,705 39,064
30% 29.5% 29,779 29,292
20% 20.0% 19,853 19,850
10% 9.8% 9,926 9,742
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,378
Calibration 2     97,390
Calibration 3     97,066
ssj_ops@calibrated=97,228
100% 98.0% 97,228 95,291
90% 90.1% 87,505 87,557
80% 80.8% 77,782 78,542
70% 69.6% 68,060 67,627
60% 59.5% 58,337 57,843
50% 50.0% 48,614 48,639
40% 40.1% 38,891 38,979
30% 30.0% 29,168 29,132
20% 20.6% 19,446 20,053
10% 10.1% 9,723 9,812
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,785
Calibration 2     99,911
Calibration 3     99,264
ssj_ops@calibrated=99,587
100% 99.1% 99,587 98,704
90% 91.0% 89,629 90,654
80% 79.9% 79,670 79,546
70% 69.6% 69,711 69,326
60% 60.8% 59,752 60,561
50% 50.9% 49,794 50,646
40% 40.3% 39,835 40,146
30% 30.4% 29,876 30,258
20% 19.6% 19,917 19,495
10% 9.9% 9,959 9,825
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,296
Calibration 2     99,646
Calibration 3     99,979
ssj_ops@calibrated=99,813
100% 100.2% 99,813 100,001
90% 89.3% 89,831 89,144
80% 79.5% 79,850 79,351
70% 69.6% 69,869 69,454
60% 59.9% 59,888 59,783
50% 50.2% 49,906 50,107
40% 40.2% 39,925 40,126
30% 30.4% 29,944 30,311
20% 19.7% 19,963 19,690
10% 10.0% 9,981 9,994
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,085
Calibration 2     99,238
Calibration 3     100,588
ssj_ops@calibrated=99,913
100% 99.3% 99,913 99,237
90% 88.0% 89,922 87,928
80% 80.2% 79,930 80,162
70% 69.3% 69,939 69,272
60% 60.0% 59,948 59,957
50% 49.8% 49,956 49,740
40% 39.6% 39,965 39,524
30% 29.6% 29,974 29,531
20% 20.4% 19,983 20,421
10% 10.1% 9,991 10,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,501
Calibration 2     94,520
Calibration 3     93,592
ssj_ops@calibrated=94,056
100% 100.4% 94,056 94,418
90% 90.0% 84,650 84,604
80% 79.4% 75,245 74,651
70% 70.0% 65,839 65,808
60% 59.7% 56,434 56,136
50% 50.3% 47,028 47,338
40% 39.5% 37,622 37,128
30% 30.4% 28,217 28,618
20% 19.5% 18,811 18,348
10% 10.0% 9,406 9,397
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,351
Calibration 2     97,695
Calibration 3     97,468
ssj_ops@calibrated=97,581
100% 99.2% 97,581 96,795
90% 90.0% 87,823 87,804
80% 79.3% 78,065 77,375
70% 68.1% 68,307 66,470
60% 60.1% 58,549 58,600
50% 49.2% 48,791 47,987
40% 40.2% 39,032 39,208
30% 29.8% 29,274 29,112
20% 19.8% 19,516 19,300
10% 9.7% 9,758 9,450
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,015
Calibration 2     94,862
Calibration 3     94,577
ssj_ops@calibrated=94,719
100% 99.2% 94,719 94,004
90% 89.8% 85,247 85,076
80% 79.7% 75,776 75,528
70% 69.5% 66,304 65,807
60% 60.4% 56,832 57,201
50% 49.7% 47,360 47,069
40% 40.2% 37,888 38,031
30% 30.0% 28,416 28,454
20% 19.8% 18,944 18,712
10% 9.8% 9,472 9,250
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,386
Calibration 2     99,753
Calibration 3     99,239
ssj_ops@calibrated=99,496
100% 99.7% 99,496 99,177
90% 90.3% 89,547 89,874
80% 79.2% 79,597 78,835
70% 70.0% 69,647 69,653
60% 60.6% 59,698 60,323
50% 49.9% 49,748 49,602
40% 40.0% 39,799 39,825
30% 29.6% 29,849 29,412
20% 20.1% 19,899 19,970
10% 9.8% 9,950 9,771
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,903
Calibration 2     97,725
Calibration 3     96,982
ssj_ops@calibrated=97,353
100% 98.6% 97,353 95,949
90% 89.9% 87,618 87,508
80% 79.7% 77,883 77,580
70% 71.4% 68,147 69,553
60% 60.7% 58,412 59,106
50% 49.1% 48,677 47,843
40% 40.1% 38,941 39,067
30% 30.0% 29,206 29,236
20% 20.5% 19,471 19,990
10% 9.8% 9,735 9,554
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,445
Calibration 2     100,663
Calibration 3     101,129
ssj_ops@calibrated=100,896
100% 99.4% 100,896 100,280
90% 90.1% 90,807 90,895
80% 79.7% 80,717 80,400
70% 70.3% 70,627 70,950
60% 59.3% 60,538 59,809
50% 49.2% 50,448 49,606
40% 40.1% 40,359 40,483
30% 30.3% 30,269 30,598
20% 20.5% 20,179 20,667
10% 9.9% 10,090 9,992
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,575
Calibration 2     93,766
Calibration 3     93,144
ssj_ops@calibrated=93,455
100% 99.9% 93,455 93,351
90% 90.1% 84,109 84,164
80% 80.5% 74,764 75,275
70% 70.7% 65,418 66,048
60% 59.9% 56,073 55,967
50% 49.8% 46,727 46,529
40% 40.2% 37,382 37,532
30% 30.4% 28,036 28,405
20% 19.5% 18,691 18,217
10% 10.3% 9,345 9,662
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,781
Calibration 2     94,902
Calibration 3     94,459
ssj_ops@calibrated=94,680
100% 99.7% 94,680 94,431
90% 89.6% 85,212 84,859
80% 80.7% 75,744 76,375
70% 70.0% 66,276 66,298
60% 59.5% 56,808 56,346
50% 49.5% 47,340 46,841
40% 40.3% 37,872 38,109
30% 30.2% 28,404 28,620
20% 20.0% 18,936 18,953
10% 9.7% 9,468 9,225
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,098
Calibration 2     98,999
Calibration 3     99,251
ssj_ops@calibrated=99,125
100% 99.1% 99,125 98,235
90% 89.5% 89,213 88,740
80% 79.9% 79,300 79,157
70% 71.0% 69,388 70,331
60% 61.2% 59,475 60,661
50% 49.5% 49,563 49,098
40% 39.9% 39,650 39,595
30% 30.5% 29,738 30,192
20% 20.0% 19,825 19,812
10% 9.7% 9,913 9,633
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,378
Calibration 2     100,707
Calibration 3     101,149
ssj_ops@calibrated=100,928
100% 99.3% 100,928 100,175
90% 90.2% 90,835 91,013
80% 79.6% 80,742 80,366
70% 70.0% 70,649 70,692
60% 60.0% 60,557 60,549
50% 50.8% 50,464 51,240
40% 40.1% 40,371 40,475
30% 30.4% 30,278 30,649
20% 20.1% 20,186 20,237
10% 10.2% 10,093 10,254
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,826
Calibration 2     98,037
Calibration 3     98,163
ssj_ops@calibrated=98,100
100% 99.3% 98,100 97,390
90% 91.0% 88,290 89,254
80% 79.9% 78,480 78,351
70% 70.4% 68,670 69,033
60% 60.4% 58,860 59,238
50% 49.3% 49,050 48,368
40% 39.8% 39,240 39,077
30% 30.2% 29,430 29,583
20% 20.1% 19,620 19,686
10% 9.7% 9,810 9,508
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,950
Calibration 2     94,019
Calibration 3     93,962
ssj_ops@calibrated=93,991
100% 99.4% 93,991 93,442
90% 89.3% 84,592 83,972
80% 79.4% 75,193 74,589
70% 70.2% 65,794 65,954
60% 59.8% 56,394 56,169
50% 49.2% 46,995 46,243
40% 39.8% 37,596 37,417
30% 29.7% 28,197 27,925
20% 19.9% 18,798 18,709
10% 10.1% 9,399 9,454
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,035
Calibration 2     101,772
Calibration 3     102,380
ssj_ops@calibrated=102,076
100% 100.1% 102,076 102,129
90% 90.0% 91,868 91,904
80% 79.8% 81,661 81,452
70% 69.9% 71,453 71,378
60% 60.3% 61,246 61,530
50% 50.2% 51,038 51,233
40% 40.1% 40,830 40,961
30% 30.3% 30,623 30,946
20% 19.8% 20,415 20,179
10% 10.1% 10,208 10,321
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,468
Calibration 2     99,152
Calibration 3     98,213
ssj_ops@calibrated=98,682
100% 98.7% 98,682 97,428
90% 89.4% 88,814 88,252
80% 79.5% 78,946 78,459
70% 69.9% 69,078 68,938
60% 59.9% 59,209 59,122
50% 49.8% 49,341 49,128
40% 40.0% 39,473 39,515
30% 29.9% 29,605 29,483
20% 19.5% 19,736 19,212
10% 10.1% 9,868 10,012
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,710
Calibration 2     98,769
Calibration 3     98,434
ssj_ops@calibrated=98,601
100% 99.1% 98,601 97,674
90% 89.5% 88,741 88,267
80% 79.7% 78,881 78,609
70% 70.3% 69,021 69,354
60% 60.1% 59,161 59,256
50% 50.1% 49,301 49,448
40% 39.5% 39,441 38,927
30% 30.2% 29,580 29,769
20% 20.3% 19,720 19,989
10% 10.2% 9,860 10,037
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,002
Calibration 2     101,944
Calibration 3     101,964
ssj_ops@calibrated=101,954
100% 98.9% 101,954 100,827
90% 89.7% 91,759 91,480
80% 80.5% 81,564 82,075
70% 69.9% 71,368 71,280
60% 59.5% 61,173 60,693
50% 48.8% 50,977 49,779
40% 39.8% 40,782 40,603
30% 30.2% 30,586 30,817
20% 20.2% 20,391 20,575
10% 10.3% 10,195 10,454
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,059
Calibration 2     98,445
Calibration 3     96,788
ssj_ops@calibrated=97,617
100% 99.9% 97,617 97,543
90% 89.9% 87,855 87,738
80% 79.1% 78,093 77,252
70% 71.1% 68,332 69,359
60% 59.6% 58,570 58,168
50% 49.0% 48,808 47,797
40% 40.7% 39,047 39,702
30% 31.1% 29,285 30,317
20% 19.8% 19,523 19,354
10% 10.1% 9,762 9,854
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,626
Calibration 2     100,296
Calibration 3     99,459
ssj_ops@calibrated=99,878
100% 99.4% 99,878 99,313
90% 90.5% 89,890 90,348
80% 80.9% 79,902 80,843
70% 69.4% 69,914 69,318
60% 59.7% 59,927 59,645
50% 49.8% 49,939 49,785
40% 40.2% 39,951 40,122
30% 29.7% 29,963 29,671
20% 19.7% 19,976 19,700
10% 9.7% 9,988 9,650
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,141
Calibration 2     97,383
Calibration 3     96,215
ssj_ops@calibrated=96,799
100% 99.4% 96,799 96,192
90% 89.9% 87,119 87,051
80% 79.5% 77,439 76,925
70% 69.5% 67,759 67,266
60% 59.9% 58,080 58,002
50% 50.5% 48,400 48,919
40% 39.6% 38,720 38,375
30% 30.6% 29,040 29,600
20% 19.8% 19,360 19,175
10% 9.7% 9,680 9,437
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,866
Calibration 2     96,543
Calibration 3     95,913
ssj_ops@calibrated=96,228
100% 99.3% 96,228 95,562
90% 89.6% 86,605 86,211
80% 79.3% 76,983 76,287
70% 70.4% 67,360 67,766
60% 60.6% 57,737 58,312
50% 50.4% 48,114 48,529
40% 39.1% 38,491 37,619
30% 30.1% 28,868 28,944
20% 19.6% 19,246 18,865
10% 10.2% 9,623 9,829
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,223
Calibration 2     100,328
Calibration 3     100,333
ssj_ops@calibrated=100,330
100% 99.2% 100,330 99,531
90% 90.3% 90,297 90,552
80% 79.8% 80,264 80,079
70% 70.3% 70,231 70,536
60% 60.7% 60,198 60,862
50% 49.6% 50,165 49,812
40% 39.7% 40,132 39,831
30% 30.2% 30,099 30,280
20% 20.3% 20,066 20,399
10% 10.2% 10,033 10,217
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,164
Calibration 2     97,266
Calibration 3     98,787
ssj_ops@calibrated=98,027
100% 99.0% 98,027 97,071
90% 89.4% 88,224 87,607
80% 78.8% 78,421 77,265
70% 69.5% 68,619 68,164
60% 60.8% 58,816 59,562
50% 49.9% 49,013 48,961
40% 40.0% 39,211 39,205
30% 30.1% 29,408 29,492
20% 20.0% 19,605 19,596
10% 10.0% 9,803 9,793
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,674
Calibration 2     94,206
Calibration 3     92,846
ssj_ops@calibrated=93,526
100% 99.3% 93,526 92,862
90% 90.8% 84,173 84,954
80% 80.4% 74,821 75,210
70% 68.7% 65,468 64,269
60% 60.0% 56,116 56,110
50% 50.5% 46,763 47,275
40% 40.3% 37,410 37,733
30% 30.4% 28,058 28,417
20% 20.0% 18,705 18,750
10% 9.8% 9,353 9,171
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,366
Calibration 2     99,459
Calibration 3     99,409
ssj_ops@calibrated=99,434
100% 99.5% 99,434 98,946
90% 89.8% 89,491 89,278
80% 80.9% 79,547 80,439
70% 69.5% 69,604 69,152
60% 60.0% 59,660 59,654
50% 49.4% 49,717 49,077
40% 39.9% 39,774 39,697
30% 30.4% 29,830 30,192
20% 19.9% 19,887 19,798
10% 9.8% 9,943 9,754
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,610
Calibration 2     94,003
Calibration 3     93,153
ssj_ops@calibrated=93,578
100% 99.8% 93,578 93,435
90% 90.7% 84,220 84,848
80% 79.4% 74,862 74,317
70% 69.4% 65,505 64,969
60% 59.7% 56,147 55,857
50% 50.5% 46,789 47,214
40% 39.9% 37,431 37,304
30% 30.3% 28,073 28,353
20% 20.4% 18,716 19,121
10% 9.7% 9,358 9,108
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,927
Calibration 2     94,638
Calibration 3     95,664
ssj_ops@calibrated=95,151
100% 99.6% 95,151 94,775
90% 89.6% 85,636 85,261
80% 79.4% 76,121 75,557
70% 70.6% 66,606 67,130
60% 60.4% 57,091 57,491
50% 50.4% 47,576 47,939
40% 40.5% 38,060 38,529
30% 29.7% 28,545 28,227
20% 20.4% 19,030 19,376
10% 9.7% 9,515 9,250
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,906
Calibration 2     97,849
Calibration 3     97,439
ssj_ops@calibrated=97,644
100% 99.1% 97,644 96,794
90% 89.4% 87,880 87,300
80% 80.4% 78,115 78,508
70% 70.2% 68,351 68,533
60% 60.4% 58,586 58,932
50% 49.9% 48,822 48,720
40% 40.5% 39,058 39,551
30% 30.1% 29,293 29,361
20% 20.1% 19,529 19,624
10% 9.8% 9,764 9,579
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,082
Calibration 2     99,537
Calibration 3     99,557
ssj_ops@calibrated=99,547
100% 99.2% 99,547 98,727
90% 89.8% 89,592 89,370
80% 79.1% 79,638 78,717
70% 70.5% 69,683 70,200
60% 60.3% 59,728 60,049
50% 49.4% 49,774 49,178
40% 38.9% 39,819 38,692
30% 30.2% 29,864 30,042
20% 20.1% 19,909 20,041
10% 10.1% 9,955 10,075
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,052
Calibration 2     100,432
Calibration 3     100,675
ssj_ops@calibrated=100,553
100% 99.2% 100,553 99,720
90% 89.8% 90,498 90,268
80% 79.9% 80,443 80,314
70% 70.0% 70,387 70,407
60% 60.0% 60,332 60,288
50% 49.7% 50,277 49,985
40% 40.5% 40,221 40,701
30% 30.1% 30,166 30,245
20% 19.9% 20,111 19,971
10% 10.0% 10,055 10,071
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,153
Calibration 2     93,044
Calibration 3     92,788
ssj_ops@calibrated=92,916
100% 100.3% 92,916 93,193
90% 90.5% 83,625 84,121
80% 80.4% 74,333 74,725
70% 69.6% 65,041 64,679
60% 60.3% 55,750 55,983
50% 50.5% 46,458 46,942
40% 39.1% 37,167 36,375
30% 29.8% 27,875 27,679
20% 19.7% 18,583 18,294
10% 10.2% 9,292 9,471
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,245
Calibration 2     97,755
Calibration 3     97,880
ssj_ops@calibrated=97,817
100% 99.5% 97,817 97,372
90% 90.4% 88,036 88,443
80% 79.7% 78,254 77,971
70% 69.8% 68,472 68,242
60% 60.5% 58,690 59,211
50% 50.4% 48,909 49,302
40% 40.1% 39,127 39,254
30% 29.7% 29,345 29,012
20% 19.6% 19,563 19,187
10% 10.1% 9,782 9,896
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,314
Calibration 2     95,250
Calibration 3     95,730
ssj_ops@calibrated=95,490
100% 98.7% 95,490 94,254
90% 88.5% 85,941 84,537
80% 80.4% 76,392 76,733
70% 69.4% 66,843 66,298
60% 59.9% 57,294 57,245
50% 50.3% 47,745 47,997
40% 40.4% 38,196 38,617
30% 29.9% 28,647 28,571
20% 20.0% 19,098 19,070
10% 9.9% 9,549 9,421
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,275
Calibration 2     93,971
Calibration 3     92,635
ssj_ops@calibrated=93,303
100% 98.8% 93,303 92,202
90% 91.1% 83,973 85,014
80% 80.8% 74,642 75,387
70% 70.3% 65,312 65,570
60% 59.5% 55,982 55,538
50% 49.1% 46,651 45,847
40% 40.0% 37,321 37,279
30% 30.2% 27,991 28,198
20% 20.1% 18,661 18,788
10% 10.2% 9,330 9,521
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,437
Calibration 2     92,710
Calibration 3     91,491
ssj_ops@calibrated=92,100
100% 98.9% 92,100 91,125
90% 89.8% 82,890 82,686
80% 80.6% 73,680 74,248
70% 69.3% 64,470 63,826
60% 60.1% 55,260 55,353
50% 50.3% 46,050 46,286
40% 39.7% 36,840 36,534
30% 30.4% 27,630 27,996
20% 20.4% 18,420 18,825
10% 10.2% 9,210 9,425
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,445
Calibration 2     93,778
Calibration 3     94,198
ssj_ops@calibrated=93,988
100% 99.8% 93,988 93,777
90% 90.2% 84,589 84,772
80% 79.7% 75,190 74,952
70% 69.5% 65,792 65,360
60% 60.4% 56,393 56,728
50% 50.3% 46,994 47,249
40% 40.0% 37,595 37,636
30% 30.2% 28,196 28,342
20% 19.8% 18,798 18,567
10% 9.6% 9,399 9,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,639
Calibration 2     99,985
Calibration 3     100,692
ssj_ops@calibrated=100,338
100% 99.7% 100,338 100,020
90% 90.5% 90,305 90,817
80% 79.7% 80,271 79,929
70% 69.3% 70,237 69,484
60% 60.5% 60,203 60,711
50% 49.5% 50,169 49,642
40% 39.8% 40,135 39,908
30% 29.6% 30,102 29,657
20% 20.0% 20,068 20,093
10% 9.7% 10,034 9,776
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,385
Calibration 2     96,310
Calibration 3     96,245
ssj_ops@calibrated=96,277
100% 99.8% 96,277 96,041
90% 90.7% 86,649 87,304
80% 80.3% 77,022 77,348
70% 70.3% 67,394 67,636
60% 59.8% 57,766 57,613
50% 50.1% 48,139 48,267
40% 39.9% 38,511 38,445
30% 29.9% 28,883 28,799
20% 20.1% 19,255 19,350
10% 9.7% 9,628 9,358
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,716
Calibration 2     99,170
Calibration 3     99,452
ssj_ops@calibrated=99,311
100% 98.7% 99,311 98,047
90% 90.6% 89,380 89,982
80% 80.0% 79,449 79,452
70% 70.3% 69,518 69,804
60% 59.8% 59,586 59,376
50% 50.5% 49,655 50,172
40% 39.8% 39,724 39,542
30% 29.5% 29,793 29,278
20% 19.9% 19,862 19,807
10% 9.9% 9,931 9,808
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,145
Calibration 2     99,539
Calibration 3     98,708
ssj_ops@calibrated=99,123
100% 99.6% 99,123 98,710
90% 91.5% 89,211 90,723
80% 80.2% 79,299 79,457
70% 70.2% 69,386 69,600
60% 59.1% 59,474 58,592
50% 50.9% 49,562 50,436
40% 39.7% 39,649 39,371
30% 30.4% 29,737 30,133
20% 19.7% 19,825 19,502
10% 9.9% 9,912 9,858
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,265
Calibration 2     99,518
Calibration 3     100,239
ssj_ops@calibrated=99,879
100% 99.9% 99,879 99,740
90% 90.1% 89,891 89,997
80% 79.8% 79,903 79,748
70% 70.4% 69,915 70,327
60% 59.5% 59,927 59,382
50% 49.9% 49,939 49,824
40% 40.8% 39,951 40,795
30% 29.6% 29,964 29,604
20% 20.1% 19,976 20,037
10% 10.0% 9,988 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,872
Calibration 2     94,047
Calibration 3     92,197
ssj_ops@calibrated=93,122
100% 99.8% 93,122 92,896
90% 90.2% 83,810 83,991
80% 80.4% 74,498 74,854
70% 69.0% 65,185 64,294
60% 59.8% 55,873 55,690
50% 48.9% 46,561 45,532
40% 39.6% 37,249 36,833
30% 30.3% 27,937 28,237
20% 19.9% 18,624 18,572
10% 10.3% 9,312 9,617
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,874
Calibration 2     101,386
Calibration 3     100,324
ssj_ops@calibrated=100,855
100% 99.2% 100,855 100,086
90% 89.8% 90,770 90,541
80% 80.8% 80,684 81,441
70% 69.3% 70,599 69,913
60% 59.7% 60,513 60,195
50% 50.1% 50,428 50,539
40% 39.4% 40,342 39,772
30% 29.7% 30,257 29,968
20% 20.2% 20,171 20,405
10% 10.1% 10,086 10,175
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,018
Calibration 2     97,863
Calibration 3     98,166
ssj_ops@calibrated=98,014
100% 100.2% 98,014 98,187
90% 89.7% 88,213 87,949
80% 80.3% 78,412 78,742
70% 70.3% 68,610 68,927
60% 60.7% 58,809 59,538
50% 50.1% 49,007 49,138
40% 40.1% 39,206 39,350
30% 30.0% 29,404 29,390
20% 20.3% 19,603 19,915
10% 9.8% 9,801 9,637
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,062
Calibration 2     94,145
Calibration 3     93,258
ssj_ops@calibrated=93,701
100% 100.2% 93,701 93,929
90% 89.3% 84,331 83,712
80% 81.0% 74,961 75,875
70% 69.7% 65,591 65,328
60% 60.6% 56,221 56,794
50% 50.1% 46,851 46,914
40% 40.8% 37,480 38,200
30% 29.0% 28,110 27,196
20% 19.5% 18,740 18,307
10% 10.3% 9,370 9,642
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,388
Calibration 2     100,773
Calibration 3     99,753
ssj_ops@calibrated=100,263
100% 100.3% 100,263 100,569
90% 89.1% 90,236 89,371
80% 80.9% 80,210 81,088
70% 69.7% 70,184 69,841
60% 60.1% 60,158 60,221
50% 50.3% 50,131 50,469
40% 39.8% 40,105 39,862
30% 29.9% 30,079 29,945
20% 19.9% 20,053 19,933
10% 9.8% 10,026 9,812
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,678
Calibration 2     98,261
Calibration 3     97,380
ssj_ops@calibrated=97,820
100% 98.7% 97,820 96,568
90% 90.0% 88,038 88,066
80% 80.1% 78,256 78,345
70% 69.1% 68,474 67,622
60% 60.4% 58,692 59,086
50% 51.1% 48,910 49,945
40% 40.6% 39,128 39,691
30% 29.8% 29,346 29,189
20% 20.2% 19,564 19,762
10% 10.4% 9,782 10,204
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,302
Calibration 2     99,416
Calibration 3     99,262
ssj_ops@calibrated=99,339
100% 98.5% 99,339 97,893
90% 90.6% 89,405 90,045
80% 78.8% 79,471 78,303
70% 69.4% 69,537 68,982
60% 60.2% 59,603 59,770
50% 50.4% 49,669 50,028
40% 40.1% 39,735 39,846
30% 29.9% 29,802 29,715
20% 20.1% 19,868 20,012
10% 10.4% 9,934 10,325
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,519
Calibration 2     98,333
Calibration 3     98,388
ssj_ops@calibrated=98,360
100% 99.9% 98,360 98,235
90% 90.5% 88,524 88,970
80% 80.6% 78,688 79,313
70% 68.8% 68,852 67,629
60% 59.7% 59,016 58,712
50% 50.0% 49,180 49,173
40% 40.2% 39,344 39,531
30% 30.6% 29,508 30,121
20% 20.0% 19,672 19,683
10% 9.9% 9,836 9,775
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,871
Calibration 2     99,705
Calibration 3     99,711
ssj_ops@calibrated=99,708
100% 98.8% 99,708 98,516
90% 90.1% 89,737 89,844
80% 80.2% 79,767 79,918
70% 70.2% 69,796 70,009
60% 59.3% 59,825 59,098
50% 50.6% 49,854 50,428
40% 40.3% 39,883 40,181
30% 29.8% 29,912 29,743
20% 20.3% 19,942 20,245
10% 9.8% 9,971 9,782
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,838
Calibration 2     92,983
Calibration 3     92,456
ssj_ops@calibrated=92,720
100% 100.0% 92,720 92,675
90% 90.5% 83,448 83,897
80% 79.5% 74,176 73,673
70% 68.9% 64,904 63,903
60% 59.4% 55,632 55,059
50% 50.5% 46,360 46,844
40% 39.7% 37,088 36,813
30% 29.6% 27,816 27,412
20% 20.4% 18,544 18,877
10% 10.2% 9,272 9,499
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,482
Calibration 2     98,627
Calibration 3     97,897
ssj_ops@calibrated=98,262
100% 99.9% 98,262 98,190
90% 90.5% 88,436 88,968
80% 79.9% 78,609 78,516
70% 70.5% 68,783 69,297
60% 59.6% 58,957 58,592
50% 50.1% 49,131 49,217
40% 39.6% 39,305 38,883
30% 30.7% 29,479 30,192
20% 20.3% 19,652 19,923
10% 10.1% 9,826 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,903
Calibration 2     99,603
Calibration 3     99,161
ssj_ops@calibrated=99,382
100% 99.2% 99,382 98,607
90% 88.8% 89,444 88,258
80% 79.0% 79,506 78,556
70% 70.1% 69,567 69,636
60% 60.2% 59,629 59,859
50% 49.9% 49,691 49,620
40% 40.4% 39,753 40,161
30% 29.5% 29,815 29,321
20% 20.0% 19,876 19,862
10% 10.0% 9,938 9,900
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,488
Calibration 2     97,601
Calibration 3     96,634
ssj_ops@calibrated=97,117
100% 98.9% 97,117 96,079
90% 89.3% 87,406 86,706
80% 80.2% 77,694 77,865
70% 69.6% 67,982 67,568
60% 60.7% 58,270 58,952
50% 49.9% 48,559 48,466
40% 40.2% 38,847 39,023
30% 30.2% 29,135 29,311
20% 20.1% 19,423 19,496
10% 10.5% 9,712 10,187
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,963
Calibration 2     97,678
Calibration 3     96,414
ssj_ops@calibrated=97,046
100% 99.4% 97,046 96,446
90% 89.9% 87,341 87,282
80% 81.1% 77,637 78,670
70% 69.5% 67,932 67,446
60% 59.6% 58,227 57,793
50% 50.0% 48,523 48,475
40% 40.1% 38,818 38,934
30% 30.1% 29,114 29,217
20% 20.2% 19,409 19,574
10% 9.9% 9,705 9,616
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,870
Calibration 2     94,386
Calibration 3     94,016
ssj_ops@calibrated=94,201
100% 98.8% 94,201 93,096
90% 89.5% 84,781 84,338
80% 79.5% 75,361 74,857
70% 69.6% 65,941 65,530
60% 60.0% 56,521 56,519
50% 49.5% 47,101 46,665
40% 39.9% 37,681 37,609
30% 30.1% 28,260 28,321
20% 20.2% 18,840 19,000
10% 10.1% 9,420 9,554
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,609
Calibration 2     97,733
Calibration 3     97,193
ssj_ops@calibrated=97,463
100% 98.9% 97,463 96,377
90% 89.5% 87,717 87,196
80% 80.0% 77,971 77,960
70% 71.0% 68,224 69,226
60% 60.0% 58,478 58,469
50% 49.2% 48,732 47,968
40% 39.9% 38,985 38,906
30% 30.2% 29,239 29,416
20% 20.0% 19,493 19,476
10% 10.2% 9,746 9,924
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,003
Calibration 2     99,560
Calibration 3     98,136
ssj_ops@calibrated=98,848
100% 100.3% 98,848 99,165
90% 90.4% 88,963 89,348
80% 80.5% 79,078 79,530
70% 70.0% 69,194 69,170
60% 59.4% 59,309 58,749
50% 50.7% 49,424 50,132
40% 39.7% 39,539 39,208
30% 29.8% 29,654 29,462
20% 20.3% 19,770 20,089
10% 9.7% 9,885 9,558
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,657
Calibration 2     94,980
Calibration 3     96,045
ssj_ops@calibrated=95,512
100% 99.1% 95,512 94,687
90% 90.0% 85,961 85,980
80% 80.2% 76,410 76,594
70% 70.2% 66,859 67,040
60% 59.6% 57,307 56,890
50% 49.5% 47,756 47,257
40% 40.1% 38,205 38,284
30% 30.0% 28,654 28,652
20% 20.2% 19,102 19,312
10% 9.9% 9,551 9,487
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,554
Calibration 2     95,350
Calibration 3     94,832
ssj_ops@calibrated=95,091
100% 98.7% 95,091 93,835
90% 89.3% 85,582 84,922
80% 79.6% 76,073 75,725
70% 70.1% 66,564 66,691
60% 60.2% 57,055 57,263
50% 49.9% 47,545 47,435
40% 40.3% 38,036 38,329
30% 29.8% 28,527 28,360
20% 20.0% 19,018 19,031
10% 9.9% 9,509 9,369
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,934
Calibration 2     102,894
Calibration 3     100,544
ssj_ops@calibrated=101,719
100% 99.2% 101,719 100,897
90% 90.7% 91,547 92,310
80% 79.4% 81,375 80,804
70% 70.5% 71,203 71,725
60% 61.3% 61,032 62,379
50% 49.6% 50,860 50,405
40% 40.4% 40,688 41,142
30% 29.1% 30,516 29,624
20% 19.7% 20,344 20,024
10% 9.7% 10,172 9,879
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,540
Calibration 2     98,269
Calibration 3     97,859
ssj_ops@calibrated=98,064
100% 99.9% 98,064 97,962
90% 88.6% 88,258 86,847
80% 80.1% 78,452 78,503
70% 69.2% 68,645 67,901
60% 59.6% 58,839 58,494
50% 49.8% 49,032 48,820
40% 40.5% 39,226 39,676
30% 30.0% 29,419 29,371
20% 19.9% 19,613 19,555
10% 10.2% 9,806 9,975
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,616
Calibration 2     95,735
Calibration 3     95,198
ssj_ops@calibrated=95,466
100% 99.8% 95,466 95,299
90% 89.5% 85,920 85,404
80% 80.0% 76,373 76,390
70% 69.9% 66,826 66,757
60% 60.1% 57,280 57,354
50% 49.9% 47,733 47,640
40% 39.9% 38,187 38,105
30% 30.3% 28,640 28,947
20% 19.7% 19,093 18,830
10% 10.1% 9,547 9,664
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,413
Calibration 2     97,423
Calibration 3     97,622
ssj_ops@calibrated=97,522
100% 99.5% 97,522 97,053
90% 89.8% 87,770 87,543
80% 79.4% 78,018 77,449
70% 70.6% 68,266 68,802
60% 60.7% 58,513 59,154
50% 49.5% 48,761 48,262
40% 39.8% 39,009 38,831
30% 29.7% 29,257 29,004
20% 20.4% 19,504 19,848
10% 10.0% 9,752 9,721
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,782
Calibration 2     95,592
Calibration 3     95,095
ssj_ops@calibrated=95,343
100% 98.7% 95,343 94,135
90% 90.1% 85,809 85,917
80% 79.9% 76,275 76,204
70% 69.8% 66,740 66,568
60% 60.3% 57,206 57,490
50% 49.5% 47,672 47,239
40% 39.6% 38,137 37,768
30% 29.8% 28,603 28,456
20% 20.4% 19,069 19,458
10% 10.1% 9,534 9,608
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,370
Calibration 2     100,281
Calibration 3     100,431
ssj_ops@calibrated=100,356
100% 99.2% 100,356 99,538
90% 89.7% 90,320 89,998
80% 78.9% 80,285 79,192
70% 70.1% 70,249 70,316
60% 59.8% 60,213 60,004
50% 50.9% 50,178 51,090
40% 39.7% 40,142 39,792
30% 30.2% 30,107 30,347
20% 20.0% 20,071 20,083
10% 10.0% 10,036 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,453
Calibration 2     93,969
Calibration 3     93,585
ssj_ops@calibrated=93,777
100% 99.7% 93,777 93,451
90% 91.1% 84,400 85,400
80% 79.7% 75,022 74,709
70% 68.6% 65,644 64,325
60% 59.7% 56,266 56,000
50% 50.7% 46,889 47,510
40% 40.5% 37,511 37,964
30% 30.0% 28,133 28,129
20% 20.6% 18,755 19,284
10% 9.8% 9,378 9,183
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,429
Calibration 2     95,184
Calibration 3     97,926
ssj_ops@calibrated=96,555
100% 100.2% 96,555 96,727
90% 89.8% 86,900 86,710
80% 79.7% 77,244 76,951
70% 70.3% 67,589 67,905
60% 60.4% 57,933 58,273
50% 49.9% 48,278 48,197
40% 40.5% 38,622 39,105
30% 30.0% 28,967 29,000
20% 20.5% 19,311 19,808
10% 10.2% 9,656 9,829
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,657
Calibration 2     100,722
Calibration 3     99,864
ssj_ops@calibrated=100,293
100% 99.6% 100,293 99,913
90% 90.9% 90,264 91,169
80% 80.5% 80,235 80,750
70% 70.3% 70,205 70,537
60% 60.3% 60,176 60,522
50% 50.2% 50,147 50,377
40% 40.0% 40,117 40,152
30% 30.3% 30,088 30,388
20% 20.0% 20,059 20,027
10% 9.9% 10,029 9,883
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,378
Calibration 2     100,550
Calibration 3     101,022
ssj_ops@calibrated=100,786
100% 100.1% 100,786 100,923
90% 89.9% 90,707 90,556
80% 80.9% 80,629 81,545
70% 70.1% 70,550 70,668
60% 61.1% 60,472 61,611
50% 50.3% 50,393 50,671
40% 40.1% 40,314 40,434
30% 29.6% 30,236 29,870
20% 20.1% 20,157 20,217
10% 10.4% 10,079 10,454
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,309
Calibration 2     98,504
Calibration 3     98,893
ssj_ops@calibrated=98,698
100% 100.8% 98,698 99,444
90% 89.9% 88,828 88,704
80% 80.3% 78,959 79,300
70% 69.8% 69,089 68,885
60% 60.3% 59,219 59,522
50% 49.8% 49,349 49,159
40% 39.8% 39,479 39,295
30% 30.1% 29,609 29,725
20% 19.5% 19,740 19,249
10% 10.1% 9,870 9,960
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,433
Calibration 2     98,513
Calibration 3     97,469
ssj_ops@calibrated=97,991
100% 99.8% 97,991 97,781
90% 89.3% 88,192 87,497
80% 79.7% 78,393 78,075
70% 69.4% 68,594 68,017
60% 59.8% 58,794 58,634
50% 50.4% 48,995 49,354
40% 39.9% 39,196 39,128
30% 30.2% 29,397 29,591
20% 20.2% 19,598 19,825
10% 9.9% 9,799 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,169
Calibration 2     101,550
Calibration 3     100,896
ssj_ops@calibrated=101,223
100% 99.9% 101,223 101,171
90% 90.1% 91,101 91,252
80% 80.5% 80,979 81,493
70% 70.5% 70,856 71,390
60% 59.9% 60,734 60,683
50% 49.9% 50,612 50,463
40% 39.9% 40,489 40,413
30% 29.9% 30,367 30,233
20% 20.0% 20,245 20,245
10% 10.0% 10,122 10,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,493
Calibration 2     99,949
Calibration 3     99,545
ssj_ops@calibrated=99,747
100% 99.5% 99,747 99,212
90% 89.9% 89,773 89,692
80% 80.4% 79,798 80,227
70% 70.9% 69,823 70,726
60% 60.5% 59,848 60,387
50% 48.9% 49,874 48,754
40% 39.7% 39,899 39,565
30% 30.6% 29,924 30,502
20% 20.1% 19,949 20,062
10% 10.0% 9,975 9,975
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,332
Calibration 2     93,953
Calibration 3     94,097
ssj_ops@calibrated=94,025
100% 98.5% 94,025 92,629
90% 89.7% 84,622 84,352
80% 79.0% 75,220 74,277
70% 70.2% 65,817 66,047
60% 59.3% 56,415 55,712
50% 50.2% 47,012 47,231
40% 39.6% 37,610 37,253
30% 30.3% 28,207 28,492
20% 19.8% 18,805 18,586
10% 9.9% 9,402 9,319
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,417
Calibration 2     97,082
Calibration 3     97,533
ssj_ops@calibrated=97,308
100% 99.6% 97,308 96,944
90% 90.5% 87,577 88,076
80% 80.0% 77,846 77,860
70% 69.9% 68,115 68,062
60% 58.8% 58,385 57,173
50% 50.2% 48,654 48,806
40% 40.7% 38,923 39,556
30% 30.2% 29,192 29,413
20% 20.0% 19,462 19,468
10% 10.3% 9,731 10,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,398
Calibration 2     92,959
Calibration 3     90,565
ssj_ops@calibrated=91,762
100% 99.4% 91,762 91,177
90% 91.1% 82,586 83,637
80% 80.7% 73,410 74,014
70% 70.5% 64,233 64,737
60% 60.1% 55,057 55,131
50% 50.7% 45,881 46,531
40% 40.9% 36,705 37,537
30% 29.4% 27,529 27,010
20% 19.2% 18,352 17,663
10% 9.9% 9,176 9,087
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,497
Calibration 2     101,415
Calibration 3     102,292
ssj_ops@calibrated=101,853
100% 98.9% 101,853 100,736
90% 89.6% 91,668 91,291
80% 79.1% 81,483 80,591
70% 69.5% 71,297 70,791
60% 60.5% 61,112 61,600
50% 49.9% 50,927 50,780
40% 40.1% 40,741 40,825
30% 29.7% 30,556 30,254
20% 19.5% 20,371 19,822
10% 10.1% 10,185 10,304
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,350
Calibration 2     98,730
Calibration 3     96,920
ssj_ops@calibrated=97,825
100% 100.0% 97,825 97,861
90% 91.5% 88,043 89,550
80% 80.6% 78,260 78,846
70% 69.5% 68,478 68,027
60% 60.6% 58,695 59,276
50% 49.4% 48,913 48,349
40% 39.6% 39,130 38,697
30% 30.1% 29,348 29,475
20% 19.5% 19,565 19,093
10% 10.3% 9,783 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,052
Calibration 2     100,239
Calibration 3     101,477
ssj_ops@calibrated=100,858
100% 100.1% 100,858 100,914
90% 90.2% 90,772 90,938
80% 80.3% 80,687 81,037
70% 70.2% 70,601 70,768
60% 59.9% 60,515 60,398
50% 50.7% 50,429 51,108
40% 38.8% 40,343 39,101
30% 29.9% 30,257 30,191
20% 20.0% 20,172 20,182
10% 10.0% 10,086 10,058
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,050
Calibration 2     100,885
Calibration 3     100,617
ssj_ops@calibrated=100,751
100% 98.4% 100,751 99,160
90% 90.9% 90,676 91,594
80% 80.1% 80,601 80,726
70% 70.3% 70,526 70,867
60% 60.5% 60,451 60,970
50% 50.7% 50,376 51,102
40% 40.4% 40,300 40,746
30% 29.7% 30,225 29,957
20% 19.4% 20,150 19,571
10% 10.2% 10,075 10,281
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,771
Calibration 2     98,383
Calibration 3     97,365
ssj_ops@calibrated=97,874
100% 99.0% 97,874 96,899
90% 89.5% 88,087 87,568
80% 80.0% 78,299 78,301
70% 71.4% 68,512 69,863
60% 59.9% 58,724 58,615
50% 49.3% 48,937 48,277
40% 39.8% 39,150 38,988
30% 29.8% 29,362 29,214
20% 20.0% 19,575 19,610
10% 9.8% 9,787 9,550
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,101
Calibration 2     96,338
Calibration 3     99,334
ssj_ops@calibrated=97,836
100% 99.1% 97,836 96,925
90% 90.5% 88,052 88,542
80% 80.2% 78,269 78,450
70% 70.2% 68,485 68,638
60% 59.2% 58,701 57,945
50% 49.2% 48,918 48,092
40% 40.2% 39,134 39,357
30% 29.7% 29,351 29,071
20% 20.3% 19,567 19,842
10% 10.1% 9,784 9,867
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,656
Calibration 2     100,219
Calibration 3     100,271
ssj_ops@calibrated=100,245
100% 99.4% 100,245 99,682
90% 91.5% 90,220 91,763
80% 80.2% 80,196 80,363
70% 68.9% 70,171 69,099
60% 59.7% 60,147 59,872
50% 50.3% 50,122 50,399
40% 40.3% 40,098 40,437
30% 30.0% 30,073 30,064
20% 20.4% 20,049 20,489
10% 9.7% 10,024 9,708
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,058
Calibration 2     96,771
Calibration 3     97,197
ssj_ops@calibrated=96,984
100% 99.5% 96,984 96,473
90% 90.2% 87,286 87,486
80% 78.6% 77,587 76,210
70% 70.1% 67,889 68,005
60% 59.5% 58,191 57,682
50% 50.7% 48,492 49,176
40% 40.4% 38,794 39,213
30% 29.9% 29,095 29,044
20% 20.1% 19,397 19,467
10% 10.0% 9,698 9,687
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,823
Calibration 2     92,916
Calibration 3     93,137
ssj_ops@calibrated=93,026
100% 99.6% 93,026 92,613
90% 90.1% 83,724 83,861
80% 79.3% 74,421 73,745
70% 69.6% 65,119 64,782
60% 60.6% 55,816 56,369
50% 50.1% 46,513 46,571
40% 40.0% 37,211 37,220
30% 30.7% 27,908 28,583
20% 20.4% 18,605 18,937
10% 9.9% 9,303 9,242
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,723
Calibration 2     94,099
Calibration 3     93,560
ssj_ops@calibrated=93,830
100% 99.9% 93,830 93,695
90% 89.9% 84,447 84,308
80% 79.2% 75,064 74,310
70% 69.9% 65,681 65,598
60% 60.4% 56,298 56,669
50% 49.3% 46,915 46,278
40% 38.9% 37,532 36,500
30% 30.8% 28,149 28,915
20% 20.0% 18,766 18,797
10% 10.4% 9,383 9,750
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,821
Calibration 2     97,921
Calibration 3     97,271
ssj_ops@calibrated=97,596
100% 100.0% 97,596 97,568
90% 89.7% 87,836 87,566
80% 80.1% 78,077 78,136
70% 70.7% 68,317 69,016
60% 59.3% 58,558 57,911
50% 49.4% 48,798 48,164
40% 40.2% 39,038 39,217
30% 30.0% 29,279 29,240
20% 20.3% 19,519 19,775
10% 9.8% 9,760 9,579
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,401
Calibration 2     96,879
Calibration 3     95,864
ssj_ops@calibrated=96,372
100% 99.2% 96,372 95,569
90% 89.9% 86,735 86,685
80% 80.3% 77,098 77,419
70% 70.1% 67,460 67,565
60% 59.9% 57,823 57,682
50% 49.6% 48,186 47,780
40% 40.1% 38,549 38,642
30% 29.6% 28,912 28,504
20% 20.2% 19,274 19,514
10% 9.9% 9,637 9,556
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,889
Calibration 2     97,553
Calibration 3     96,031
ssj_ops@calibrated=96,792
100% 99.2% 96,792 96,013
90% 90.8% 87,113 87,892
80% 80.4% 77,434 77,781
70% 69.7% 67,755 67,464
60% 59.7% 58,075 57,822
50% 50.0% 48,396 48,392
40% 39.6% 38,717 38,362
30% 29.2% 29,038 28,262
20% 19.5% 19,358 18,846
10% 10.0% 9,679 9,658
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,351
Calibration 2     99,773
Calibration 3     100,894
ssj_ops@calibrated=100,333
100% 99.6% 100,333 99,885
90% 90.4% 90,300 90,737
80% 79.7% 80,267 79,947
70% 70.2% 70,233 70,416
60% 60.5% 60,200 60,725
50% 49.2% 50,167 49,398
40% 40.1% 40,133 40,274
30% 29.9% 30,100 30,011
20% 19.9% 20,067 19,987
10% 9.9% 10,033 9,950
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,826
Calibration 2     99,865
Calibration 3     98,475
ssj_ops@calibrated=99,170
100% 99.6% 99,170 98,730
90% 89.8% 89,253 89,046
80% 80.9% 79,336 80,181
70% 69.2% 69,419 68,587
60% 59.8% 59,502 59,296
50% 49.7% 49,585 49,329
40% 40.2% 39,668 39,908
30% 29.6% 29,751 29,383
20% 20.0% 19,834 19,804
10% 10.2% 9,917 10,125
Active Idle   0 0
Graph of results
