Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,394,509
ssj_ops@100% per JVM = 96,832
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,477,286
Calibration 2     12,491,698
Calibration 3     12,441,863
ssj_ops@calibrated=12,466,780
100% 99.4% 12,466,780 12,394,509
90% 90.0% 11,220,102 11,221,796
80% 80.0% 9,973,424 9,974,433
70% 70.1% 8,726,746 8,733,084
60% 60.0% 7,480,068 7,482,619
50% 50.0% 6,233,390 6,232,696
40% 40.1% 4,986,712 4,994,417
30% 30.0% 3,740,034 3,738,587
20% 20.0% 2,493,356 2,495,569
10% 10.0% 1,246,678 1,246,631
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node02.001 92,482
SLES12SP5-Node02.002 98,788
SLES12SP5-Node02.003 91,754
SLES12SP5-Node02.004 101,032
SLES12SP5-Node02.005 98,704
SLES12SP5-Node02.006 92,840
SLES12SP5-Node02.007 94,789
SLES12SP5-Node02.008 97,445
SLES12SP5-Node02.009 95,832
SLES12SP5-Node02.010 100,799
SLES12SP5-Node02.011 95,821
SLES12SP5-Node02.012 95,709
SLES12SP5-Node02.013 99,375
SLES12SP5-Node02.014 91,985
SLES12SP5-Node02.015 99,666
SLES12SP5-Node02.016 94,513
SLES12SP5-Node02.017 100,563
SLES12SP5-Node02.018 98,376
SLES12SP5-Node02.019 92,838
SLES12SP5-Node02.020 96,957
SLES12SP5-Node02.021 96,753
SLES12SP5-Node02.022 95,972
SLES12SP5-Node02.023 92,790
SLES12SP5-Node02.024 95,042
SLES12SP5-Node02.025 100,778
SLES12SP5-Node02.026 102,036
SLES12SP5-Node02.027 100,372
SLES12SP5-Node02.028 95,738
SLES12SP5-Node02.029 97,203
SLES12SP5-Node02.030 95,332
SLES12SP5-Node02.031 93,273
SLES12SP5-Node02.032 96,603
SLES12SP5-Node02.033 94,674
SLES12SP5-Node02.034 99,771
SLES12SP5-Node02.035 102,717
SLES12SP5-Node02.036 101,099
SLES12SP5-Node02.037 97,623
SLES12SP5-Node02.038 93,657
SLES12SP5-Node02.039 95,579
SLES12SP5-Node02.040 98,815
SLES12SP5-Node02.041 101,393
SLES12SP5-Node02.042 97,130
SLES12SP5-Node02.043 97,755
SLES12SP5-Node02.044 100,481
SLES12SP5-Node02.045 94,333
SLES12SP5-Node02.046 90,708
SLES12SP5-Node02.047 93,200
SLES12SP5-Node02.048 91,739
SLES12SP5-Node02.049 96,713
SLES12SP5-Node02.050 101,428
SLES12SP5-Node02.051 98,367
SLES12SP5-Node02.052 98,176
SLES12SP5-Node02.053 92,682
SLES12SP5-Node02.054 96,560
SLES12SP5-Node02.055 98,632
SLES12SP5-Node02.056 93,432
SLES12SP5-Node02.057 96,425
SLES12SP5-Node02.058 97,250
SLES12SP5-Node02.059 94,540
SLES12SP5-Node02.060 94,515
SLES12SP5-Node02.061 103,030
SLES12SP5-Node02.062 92,133
SLES12SP5-Node02.063 101,083
SLES12SP5-Node02.064 102,934
SLES12SP5-Node02.065 99,183
SLES12SP5-Node02.066 97,793
SLES12SP5-Node02.067 98,380
SLES12SP5-Node02.068 95,587
SLES12SP5-Node02.069 94,289
SLES12SP5-Node02.070 96,131
SLES12SP5-Node02.071 97,179
SLES12SP5-Node02.072 99,079
SLES12SP5-Node02.073 99,538
SLES12SP5-Node02.074 97,468
SLES12SP5-Node02.075 96,450
SLES12SP5-Node02.076 95,449
SLES12SP5-Node02.077 97,600
SLES12SP5-Node02.078 96,207
SLES12SP5-Node02.079 99,383
SLES12SP5-Node02.080 97,898
SLES12SP5-Node02.081 98,494
SLES12SP5-Node02.082 94,589
SLES12SP5-Node02.083 95,441
SLES12SP5-Node02.084 98,145
SLES12SP5-Node02.085 95,321
SLES12SP5-Node02.086 93,856
SLES12SP5-Node02.087 92,702
SLES12SP5-Node02.088 99,044
SLES12SP5-Node02.089 98,531
SLES12SP5-Node02.090 96,097
SLES12SP5-Node02.091 93,350
SLES12SP5-Node02.092 95,778
SLES12SP5-Node02.093 101,408
SLES12SP5-Node02.094 97,441
SLES12SP5-Node02.095 95,844
SLES12SP5-Node02.096 95,502
SLES12SP5-Node02.097 97,166
SLES12SP5-Node02.098 96,452
SLES12SP5-Node02.099 99,249
SLES12SP5-Node02.100 97,012
SLES12SP5-Node02.101 96,425
SLES12SP5-Node02.102 92,973
SLES12SP5-Node02.103 97,123
SLES12SP5-Node02.104 97,293
SLES12SP5-Node02.105 93,849
SLES12SP5-Node02.106 93,172
SLES12SP5-Node02.107 97,057
SLES12SP5-Node02.108 98,369
SLES12SP5-Node02.109 95,408
SLES12SP5-Node02.110 94,408
SLES12SP5-Node02.111 100,514
SLES12SP5-Node02.112 91,649
SLES12SP5-Node02.113 95,333
SLES12SP5-Node02.114 100,235
SLES12SP5-Node02.115 94,903
SLES12SP5-Node02.116 97,800
SLES12SP5-Node02.117 98,391
SLES12SP5-Node02.118 91,163
SLES12SP5-Node02.119 98,074
SLES12SP5-Node02.120 95,762
SLES12SP5-Node02.121 97,781
SLES12SP5-Node02.122 100,352
SLES12SP5-Node02.123 97,870
SLES12SP5-Node02.124 100,242
SLES12SP5-Node02.125 97,264
SLES12SP5-Node02.126 100,237
SLES12SP5-Node02.127 92,743
SLES12SP5-Node02.128 98,350
ssj_ops@100% 12,394,509
ssj_ops@100% per JVM 96,832

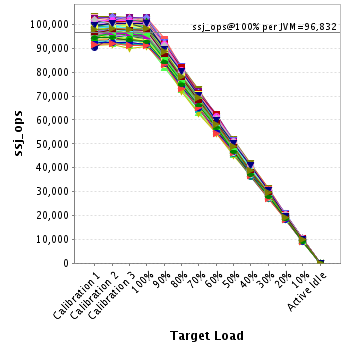

Graph of per-instance results
JVM 'SLES12SP5-Node02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,446
Calibration 2     93,000
Calibration 3     93,421
ssj_ops@calibrated=93,211
100% 99.2% 93,211 92,482
90% 89.6% 83,890 83,490
80% 79.3% 74,569 73,882
70% 70.0% 65,248 65,232
60% 59.9% 55,926 55,828
50% 50.3% 46,605 46,840
40% 39.3% 37,284 36,592
30% 30.2% 27,963 28,145
20% 20.1% 18,642 18,754
10% 10.0% 9,321 9,362
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,339
Calibration 2     99,651
Calibration 3     97,976
ssj_ops@calibrated=98,813
100% 100.0% 98,813 98,788
90% 90.2% 88,932 89,123
80% 79.4% 79,050 78,482
70% 70.2% 69,169 69,356
60% 59.7% 59,288 58,942
50% 50.3% 49,407 49,701
40% 40.4% 39,525 39,922
30% 30.5% 29,644 30,144
20% 19.9% 19,763 19,638
10% 10.3% 9,881 10,129
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,184
Calibration 2     91,964
Calibration 3     91,328
ssj_ops@calibrated=91,646
100% 100.1% 91,646 91,754
90% 89.6% 82,482 82,111
80% 79.2% 73,317 72,612
70% 68.9% 64,152 63,187
60% 60.2% 54,988 55,132
50% 49.7% 45,823 45,593
40% 41.0% 36,659 37,550
30% 30.8% 27,494 28,212
20% 20.1% 18,329 18,466
10% 9.8% 9,165 9,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,567
Calibration 2     102,244
Calibration 3     101,413
ssj_ops@calibrated=101,828
100% 99.2% 101,828 101,032
90% 89.7% 91,646 91,297
80% 80.3% 81,463 81,734
70% 69.8% 71,280 71,056
60% 59.9% 61,097 60,991
50% 49.6% 50,914 50,459
40% 39.8% 40,731 40,553
30% 29.8% 30,549 30,341
20% 19.5% 20,366 19,862
10% 10.2% 10,183 10,362
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,032
Calibration 2     100,295
Calibration 3     98,618
ssj_ops@calibrated=99,457
100% 99.2% 99,457 98,704
90% 89.0% 89,511 88,469
80% 79.4% 79,565 78,997
70% 70.1% 69,620 69,690
60% 60.3% 59,674 59,996
50% 50.1% 49,728 49,807
40% 41.0% 39,783 40,784
30% 29.9% 29,837 29,732
20% 20.0% 19,891 19,854
10% 9.7% 9,946 9,646
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,729
Calibration 2     93,007
Calibration 3     93,698
ssj_ops@calibrated=93,353
100% 99.5% 93,353 92,840
90% 90.2% 84,018 84,229
80% 79.4% 74,682 74,097
70% 69.7% 65,347 65,081
60% 59.6% 56,012 55,683
50% 49.5% 46,676 46,204
40% 40.3% 37,341 37,585
30% 29.6% 28,006 27,646
20% 19.9% 18,671 18,603
10% 9.6% 9,335 8,934
Active Idle   0 0
Graph of results

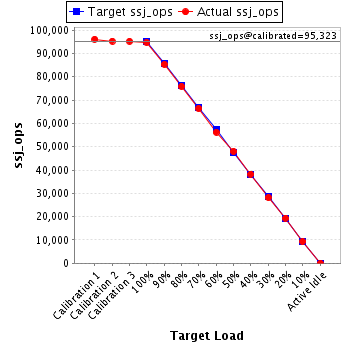

JVM 'SLES12SP5-Node02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,139
Calibration 2     95,333
Calibration 3     95,314
ssj_ops@calibrated=95,323
100% 99.4% 95,323 94,789
90% 89.5% 85,791 85,340
80% 79.6% 76,259 75,894
70% 69.7% 66,726 66,438
60% 59.0% 57,194 56,240
50% 50.4% 47,662 48,038
40% 40.2% 38,129 38,283
30% 29.5% 28,597 28,136
20% 20.4% 19,065 19,417
10% 9.8% 9,532 9,363
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,900
Calibration 2     96,634
Calibration 3     97,618
ssj_ops@calibrated=97,126
100% 100.3% 97,126 97,445
90% 90.0% 87,414 87,408
80% 79.9% 77,701 77,640
70% 70.1% 67,988 68,082
60% 60.1% 58,276 58,394
50% 49.8% 48,563 48,395
40% 40.5% 38,851 39,317
30% 29.7% 29,138 28,801
20% 20.4% 19,425 19,809
10% 10.1% 9,713 9,804
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,876
Calibration 2     97,022
Calibration 3     96,069
ssj_ops@calibrated=96,545
100% 99.3% 96,545 95,832
90% 90.1% 86,891 87,004
80% 79.7% 77,236 76,917
70% 69.3% 67,582 66,897
60% 60.3% 57,927 58,200
50% 50.1% 48,273 48,327
40% 40.5% 38,618 39,056
30% 29.9% 28,964 28,835
20% 20.4% 19,309 19,699
10% 10.1% 9,655 9,729
Active Idle   0 0

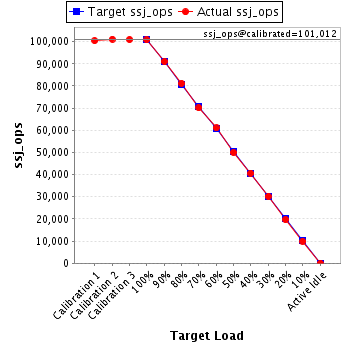

Graph of results
JVM 'SLES12SP5-Node02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,420
Calibration 2     101,125
Calibration 3     100,898
ssj_ops@calibrated=101,012
100% 99.8% 101,012 100,799
90% 90.1% 90,910 91,057
80% 80.4% 80,809 81,240
70% 69.4% 70,708 70,127
60% 60.4% 60,607 61,060
50% 49.5% 50,506 50,004
40% 40.2% 40,405 40,648
30% 29.9% 30,303 30,173
20% 19.5% 20,202 19,654
10% 9.8% 10,101 9,936
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,239
Calibration 2     96,733
Calibration 3     97,003
ssj_ops@calibrated=96,868
100% 98.9% 96,868 95,821
90% 90.9% 87,181 88,018
80% 80.3% 77,495 77,814
70% 70.1% 67,808 67,883
60% 60.4% 58,121 58,476
50% 49.0% 48,434 47,453
40% 40.0% 38,747 38,736
30% 30.0% 29,060 29,099
20% 19.9% 19,374 19,297
10% 10.3% 9,687 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,568
Calibration 2     97,556
Calibration 3     97,624
ssj_ops@calibrated=97,590
100% 98.1% 97,590 95,709
90% 89.5% 87,831 87,316
80% 81.1% 78,072 79,137
70% 70.5% 68,313 68,798
60% 59.7% 58,554 58,228
50% 50.3% 48,795 49,124
40% 39.0% 39,036 38,090
30% 29.4% 29,277 28,677
20% 19.5% 19,518 19,004
10% 10.4% 9,759 10,154
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,451
Calibration 2     99,310
Calibration 3     99,489
ssj_ops@calibrated=99,399
100% 100.0% 99,399 99,375
90% 89.6% 89,459 89,024
80% 80.0% 79,520 79,568
70% 70.0% 69,580 69,592
60% 59.9% 59,640 59,571
50% 50.0% 49,700 49,743
40% 40.7% 39,760 40,450
30% 30.1% 29,820 29,878
20% 19.8% 19,880 19,710
10% 10.3% 9,940 10,279
Active Idle   0 0
Graph of results

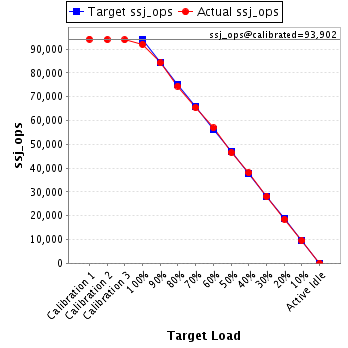

JVM 'SLES12SP5-Node02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,150
Calibration 2     93,966
Calibration 3     93,837
ssj_ops@calibrated=93,902
100% 98.0% 93,902 91,985
90% 89.6% 84,512 84,163
80% 79.2% 75,121 74,411
70% 69.7% 65,731 65,410
60% 60.5% 56,341 56,852
50% 49.5% 46,951 46,474
40% 40.5% 37,561 37,985
30% 29.9% 28,171 28,064
20% 19.7% 18,780 18,517
10% 10.1% 9,390 9,496
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,745
Calibration 2     100,690
Calibration 3     100,739
ssj_ops@calibrated=100,714
100% 99.0% 100,714 99,666
90% 89.1% 90,643 89,778
80% 79.5% 80,572 80,075
70% 69.8% 70,500 70,285
60% 59.5% 60,429 59,932
50% 50.1% 50,357 50,474
40% 40.5% 40,286 40,747
30% 29.7% 30,214 29,962
20% 20.3% 20,143 20,445
10% 9.5% 10,071 9,570
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,479
Calibration 2     96,009
Calibration 3     95,898
ssj_ops@calibrated=95,954
100% 98.5% 95,954 94,513
90% 90.3% 86,358 86,606
80% 79.7% 76,763 76,517
70% 68.9% 67,167 66,147
60% 60.3% 57,572 57,885
50% 49.5% 47,977 47,512
40% 39.9% 38,381 38,279
30% 30.5% 28,786 29,310
20% 19.8% 19,191 19,008
10% 9.9% 9,595 9,475
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,557
Calibration 2     100,938
Calibration 3     100,415
ssj_ops@calibrated=100,677
100% 99.9% 100,677 100,563
90% 90.7% 90,609 91,266
80% 80.2% 80,541 80,763
70% 69.6% 70,474 70,100
60% 60.2% 60,406 60,651
50% 50.2% 50,338 50,519
40% 40.6% 40,271 40,870
30% 30.2% 30,203 30,428
20% 19.9% 20,135 20,082
10% 9.9% 10,068 9,991
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,054
Calibration 2     98,740
Calibration 3     98,388
ssj_ops@calibrated=98,564
100% 99.8% 98,564 98,376
90% 90.3% 88,708 88,955
80% 80.5% 78,851 79,383
70% 70.6% 68,995 69,554
60% 59.7% 59,138 58,801
50% 49.9% 49,282 49,189
40% 39.7% 39,426 39,115
30% 29.9% 29,569 29,458
20% 20.1% 19,713 19,824
10% 10.3% 9,856 10,133
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,079
Calibration 2     93,546
Calibration 3     91,265
ssj_ops@calibrated=92,405
100% 100.5% 92,405 92,838
90% 90.0% 83,165 83,134
80% 79.7% 73,924 73,690
70% 69.7% 64,684 64,407
60% 59.4% 55,443 54,917
50% 49.7% 46,203 45,895
40% 39.6% 36,962 36,625
30% 30.5% 27,722 28,221
20% 19.7% 18,481 18,250
10% 9.8% 9,241 9,048
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,045
Calibration 2     98,056
Calibration 3     97,826
ssj_ops@calibrated=97,941
100% 99.0% 97,941 96,957
90% 90.3% 88,147 88,403
80% 80.8% 78,353 79,107
70% 70.3% 68,559 68,867
60% 60.1% 58,765 58,831
50% 50.4% 48,971 49,386
40% 39.8% 39,176 38,956
30% 30.7% 29,382 30,087
20% 20.2% 19,588 19,764
10% 9.8% 9,794 9,566
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,104
Calibration 2     97,747
Calibration 3     97,331
ssj_ops@calibrated=97,539
100% 99.2% 97,539 96,753
90% 90.3% 87,785 88,066
80% 80.3% 78,032 78,276
70% 70.3% 68,278 68,617
60% 59.9% 58,524 58,414
50% 50.2% 48,770 49,000
40% 39.8% 39,016 38,801
30% 29.7% 29,262 28,929
20% 19.7% 19,508 19,242
10% 10.0% 9,754 9,716
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,617
Calibration 2     96,482
Calibration 3     96,689
ssj_ops@calibrated=96,586
100% 99.4% 96,586 95,972
90% 89.8% 86,927 86,743
80% 80.0% 77,269 77,268
70% 70.6% 67,610 68,222
60% 59.6% 57,951 57,560
50% 50.3% 48,293 48,538
40% 40.1% 38,634 38,695
30% 29.6% 28,976 28,621
20% 20.2% 19,317 19,508
10% 10.0% 9,659 9,658
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,089
Calibration 2     93,541
Calibration 3     93,009
ssj_ops@calibrated=93,275
100% 99.5% 93,275 92,790
90% 89.9% 83,948 83,831
80% 79.8% 74,620 74,465
70% 70.0% 65,293 65,298
60% 60.4% 55,965 56,338
50% 49.7% 46,638 46,317
40% 40.5% 37,310 37,768
30% 29.8% 27,983 27,783
20% 20.1% 18,655 18,761
10% 10.3% 9,328 9,592
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,166
Calibration 2     95,850
Calibration 3     95,968
ssj_ops@calibrated=95,909
100% 99.1% 95,909 95,042
90% 89.7% 86,318 85,992
80% 78.9% 76,727 75,663
70% 70.2% 67,136 67,344
60% 59.3% 57,546 56,833
50% 49.9% 47,955 47,903
40% 39.5% 38,364 37,882
30% 29.9% 28,773 28,643
20% 20.0% 19,182 19,228
10% 9.9% 9,591 9,504
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,503
Calibration 2     100,976
Calibration 3     100,590
ssj_ops@calibrated=100,783
100% 100.0% 100,783 100,778
90% 89.8% 90,705 90,498
80% 80.3% 80,627 80,934
70% 69.9% 70,548 70,477
60% 59.7% 60,470 60,120
50% 50.1% 50,392 50,520
40% 40.5% 40,313 40,817
30% 29.9% 30,235 30,114
20% 20.3% 20,157 20,454
10% 10.3% 10,078 10,334
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,299
Calibration 2     103,396
Calibration 3     102,868
ssj_ops@calibrated=103,132
100% 98.9% 103,132 102,036
90% 90.1% 92,818 92,941
80% 80.1% 82,505 82,573
70% 70.5% 72,192 72,741
60% 59.5% 61,879 61,398
50% 50.3% 51,566 51,832
40% 40.5% 41,253 41,735
30% 30.4% 30,939 31,312
20% 19.9% 20,626 20,525
10% 9.8% 10,313 10,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,369
Calibration 2     100,457
Calibration 3     101,172
ssj_ops@calibrated=100,814
100% 99.6% 100,814 100,372
90% 90.8% 90,733 91,531
80% 80.6% 80,651 81,288
70% 70.1% 70,570 70,622
60% 60.9% 60,489 61,417
50% 49.1% 50,407 49,513
40% 39.5% 40,326 39,796
30% 29.6% 30,244 29,839
20% 19.8% 20,163 19,956
10% 10.0% 10,081 10,121
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,215
Calibration 2     96,036
Calibration 3     96,151
ssj_ops@calibrated=96,093
100% 99.6% 96,093 95,738
90% 90.1% 86,484 86,535
80% 80.9% 76,875 77,716
70% 70.0% 67,265 67,311
60% 59.7% 57,656 57,394
50% 50.0% 48,047 48,057
40% 40.1% 38,437 38,565
30% 30.2% 28,828 29,067
20% 20.0% 19,219 19,196
10% 9.8% 9,609 9,433
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,118
Calibration 2     97,697
Calibration 3     97,132
ssj_ops@calibrated=97,414
100% 99.8% 97,414 97,203
90% 90.3% 87,673 87,955
80% 78.8% 77,931 76,758
70% 69.4% 68,190 67,600
60% 59.4% 58,449 57,819
50% 49.5% 48,707 48,221
40% 39.9% 38,966 38,873
30% 29.9% 29,224 29,108
20% 19.7% 19,483 19,200
10% 9.8% 9,741 9,546
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,251
Calibration 2     95,947
Calibration 3     95,101
ssj_ops@calibrated=95,524
100% 99.8% 95,524 95,332
90% 89.5% 85,972 85,536
80% 80.3% 76,419 76,753
70% 70.6% 66,867 67,457
60% 59.9% 57,314 57,205
50% 49.0% 47,762 46,760
40% 39.8% 38,210 38,004
30% 29.9% 28,657 28,525
20% 20.3% 19,105 19,377
10% 10.1% 9,552 9,672
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,481
Calibration 2     94,265
Calibration 3     94,671
ssj_ops@calibrated=94,468
100% 98.7% 94,468 93,273
90% 90.7% 85,021 85,637
80% 80.4% 75,574 75,967
70% 71.1% 66,127 67,167
60% 60.2% 56,681 56,892
50% 50.1% 47,234 47,299
40% 39.8% 37,787 37,592
30% 30.5% 28,340 28,787
20% 20.4% 18,894 19,258
10% 9.6% 9,447 9,101
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,625
Calibration 2     97,799
Calibration 3     97,266
ssj_ops@calibrated=97,533
100% 99.0% 97,533 96,603
90% 90.8% 87,779 88,574
80% 79.4% 78,026 77,403
70% 70.7% 68,273 68,956
60% 60.2% 58,520 58,736
50% 49.6% 48,766 48,376
40% 39.6% 39,013 38,626
30% 29.8% 29,260 29,047
20% 20.4% 19,507 19,914
10% 9.9% 9,753 9,646
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,968
Calibration 2     95,997
Calibration 3     95,526
ssj_ops@calibrated=95,762
100% 98.9% 95,762 94,674
90% 90.7% 86,185 86,841
80% 80.3% 76,609 76,902
70% 70.4% 67,033 67,460
60% 61.0% 57,457 58,402
50% 50.4% 47,881 48,304
40% 39.2% 38,305 37,510
30% 30.0% 28,728 28,712
20% 19.8% 19,152 18,975
10% 9.9% 9,576 9,449
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,818
Calibration 2     100,243
Calibration 3     99,828
ssj_ops@calibrated=100,035
100% 99.7% 100,035 99,771
90% 90.0% 90,032 90,017
80% 80.3% 80,028 80,349
70% 70.0% 70,025 70,033
60% 60.1% 60,021 60,145
50% 50.1% 50,018 50,123
40% 39.6% 40,014 39,600
30% 30.8% 30,011 30,861
20% 19.7% 20,007 19,695
10% 10.2% 10,004 10,180
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,192
Calibration 2     102,923
Calibration 3     102,429
ssj_ops@calibrated=102,676
100% 100.0% 102,676 102,717
90% 91.9% 92,409 94,316
80% 79.9% 82,141 81,997
70% 70.5% 71,873 72,426
60% 60.0% 61,606 61,577
50% 50.2% 51,338 51,514
40% 40.2% 41,070 41,297
30% 30.6% 30,803 31,396
20% 20.0% 20,535 20,575
10% 9.9% 10,268 10,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,929
Calibration 2     103,048
Calibration 3     102,031
ssj_ops@calibrated=102,539
100% 98.6% 102,539 101,099
90% 90.3% 92,285 92,610
80% 80.3% 82,031 82,366
70% 69.5% 71,778 71,218
60% 59.2% 61,524 60,682
50% 50.1% 51,270 51,350
40% 39.5% 41,016 40,500
30% 29.9% 30,762 30,661
20% 20.3% 20,508 20,812
10% 10.1% 10,254 10,354
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,629
Calibration 2     98,596
Calibration 3     97,239
ssj_ops@calibrated=97,917
100% 99.7% 97,917 97,623
90% 89.3% 88,126 87,475
80% 79.7% 78,334 78,030
70% 70.4% 68,542 68,901
60% 60.2% 58,750 58,937
50% 50.3% 48,959 49,299
40% 40.4% 39,167 39,583
30% 30.1% 29,375 29,425
20% 20.5% 19,583 20,083
10% 9.5% 9,792 9,300
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,332
Calibration 2     94,292
Calibration 3     94,371
ssj_ops@calibrated=94,332
100% 99.3% 94,332 93,657
90% 90.0% 84,899 84,897
80% 80.2% 75,465 75,613
70% 69.6% 66,032 65,656
60% 60.3% 56,599 56,886
50% 50.4% 47,166 47,497
40% 40.8% 37,733 38,509
30% 30.5% 28,300 28,777
20% 20.0% 18,866 18,904
10% 10.2% 9,433 9,617
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,664
Calibration 2     96,178
Calibration 3     95,721
ssj_ops@calibrated=95,950
100% 99.6% 95,950 95,579
90% 90.5% 86,355 86,835
80% 80.3% 76,760 77,090
70% 70.5% 67,165 67,661
60% 60.3% 57,570 57,850
50% 49.3% 47,975 47,326
40% 39.5% 38,380 37,944
30% 30.4% 28,785 29,194
20% 19.6% 19,190 18,795
10% 10.2% 9,595 9,754
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,826
Calibration 2     99,211
Calibration 3     98,524
ssj_ops@calibrated=98,867
100% 99.9% 98,867 98,815
90% 89.0% 88,981 87,959
80% 80.6% 79,094 79,719
70% 70.9% 69,207 70,057
60% 59.4% 59,320 58,721
50% 50.1% 49,434 49,565
40% 39.5% 39,547 39,045
30% 29.6% 29,660 29,306
20% 20.2% 19,773 20,000
10% 9.9% 9,887 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,712
Calibration 2     101,123
Calibration 3     101,882
ssj_ops@calibrated=101,502
100% 99.9% 101,502 101,393
90% 90.3% 91,352 91,630
80% 80.4% 81,202 81,578
70% 69.5% 71,052 70,567
60% 60.2% 60,901 61,101
50% 49.8% 50,751 50,556
40% 39.9% 40,601 40,523
30% 29.8% 30,451 30,289
20% 20.0% 20,300 20,334
10% 10.2% 10,150 10,325
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,122
Calibration 2     97,499
Calibration 3     98,216
ssj_ops@calibrated=97,857
100% 99.3% 97,857 97,130
90% 90.2% 88,072 88,291
80% 79.5% 78,286 77,819
70% 70.4% 68,500 68,927
60% 60.2% 58,714 58,957
50% 49.8% 48,929 48,781
40% 39.7% 39,143 38,853
30% 29.8% 29,357 29,154
20% 20.0% 19,571 19,604
10% 10.1% 9,786 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,111
Calibration 2     97,111
Calibration 3     98,015
ssj_ops@calibrated=97,563
100% 100.2% 97,563 97,755
90% 89.2% 87,807 86,990
80% 79.5% 78,051 77,595
70% 69.6% 68,294 67,867
60% 59.7% 58,538 58,201
50% 50.1% 48,782 48,876
40% 40.4% 39,025 39,396
30% 30.2% 29,269 29,509
20% 20.0% 19,513 19,480
10% 10.0% 9,756 9,737
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,730
Calibration 2     102,063
Calibration 3     101,754
ssj_ops@calibrated=101,908
100% 98.6% 101,908 100,481
90% 89.6% 91,717 91,330
80% 79.4% 81,526 80,935
70% 69.9% 71,336 71,226
60% 60.2% 61,145 61,380
50% 49.9% 50,954 50,816
40% 39.7% 40,763 40,425
30% 29.8% 30,572 30,404
20% 19.7% 20,382 20,100
10% 9.9% 10,191 10,112
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,248
Calibration 2     95,446
Calibration 3     95,479
ssj_ops@calibrated=95,462
100% 98.8% 95,462 94,333
90% 90.5% 85,916 86,389
80% 80.8% 76,370 77,168
70% 70.1% 66,824 66,893
60% 60.3% 57,277 57,556
50% 50.6% 47,731 48,257
40% 39.8% 38,185 37,970
30% 30.4% 28,639 28,980
20% 19.9% 19,092 19,024
10% 9.9% 9,546 9,462
Active Idle   0 0
Graph of results

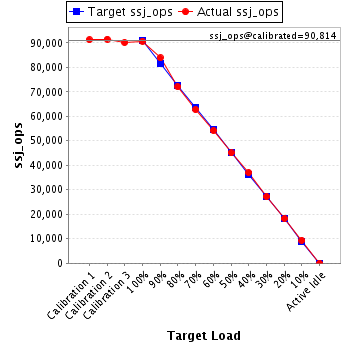

JVM 'SLES12SP5-Node02.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,220
Calibration 2     91,502
Calibration 3     90,127
ssj_ops@calibrated=90,814
100% 99.9% 90,814 90,708
90% 92.4% 81,733 83,886
80% 79.3% 72,651 72,060
70% 69.1% 63,570 62,722
60% 59.7% 54,489 54,216
50% 49.7% 45,407 45,090
40% 40.7% 36,326 36,948
30% 30.0% 27,244 27,221
20% 20.1% 18,163 18,257
10% 10.3% 9,081 9,383
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,094
Calibration 2     94,461
Calibration 3     92,360
ssj_ops@calibrated=93,411
100% 99.8% 93,411 93,200
90% 89.8% 84,070 83,881
80% 79.7% 74,728 74,416
70% 69.6% 65,387 65,014
60% 60.1% 56,046 56,137
50% 50.0% 46,705 46,745
40% 40.2% 37,364 37,551
30% 30.1% 28,023 28,155
20% 20.0% 18,682 18,690
10% 10.0% 9,341 9,312
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,871
Calibration 2     92,375
Calibration 3     91,871
ssj_ops@calibrated=92,123
100% 99.6% 92,123 91,739
90% 90.4% 82,911 83,314
80% 80.0% 73,699 73,684
70% 69.8% 64,486 64,310
60% 60.3% 55,274 55,568
50% 49.7% 46,062 45,789
40% 40.5% 36,849 37,273
30% 30.3% 27,637 27,937
20% 20.0% 18,425 18,446
10% 10.0% 9,212 9,204
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,903
Calibration 2     96,828
Calibration 3     96,477
ssj_ops@calibrated=96,652
100% 100.1% 96,652 96,713
90% 90.6% 86,987 87,542
80% 79.5% 77,322 76,844
70% 70.0% 67,657 67,669
60% 60.5% 57,991 58,456
50% 49.5% 48,326 47,889
40% 39.7% 38,661 38,324
30% 30.0% 28,996 29,010
20% 19.9% 19,330 19,233
10% 10.1% 9,665 9,796
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,933
Calibration 2     101,025
Calibration 3     101,111
ssj_ops@calibrated=101,068
100% 100.4% 101,068 101,428
90% 89.7% 90,961 90,670
80% 80.2% 80,854 81,038
70% 69.6% 70,748 70,322
60% 59.2% 60,641 59,841
50% 50.3% 50,534 50,814
40% 39.8% 40,427 40,177
30% 29.6% 30,320 29,913
20% 19.9% 20,214 20,093
10% 10.2% 10,107 10,342
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,613
Calibration 2     97,817
Calibration 3     99,158
ssj_ops@calibrated=98,488
100% 99.9% 98,488 98,367
90% 90.1% 88,639 88,759
80% 80.3% 78,790 79,054
70% 68.9% 68,941 67,851
60% 60.6% 59,093 59,696
50% 50.7% 49,244 49,941
40% 39.9% 39,395 39,268
30% 30.8% 29,546 30,381
20% 20.3% 19,698 19,974
10% 10.3% 9,849 10,117
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,460
Calibration 2     99,400
Calibration 3     98,919
ssj_ops@calibrated=99,159
100% 99.0% 99,159 98,176
90% 89.3% 89,243 88,584
80% 79.6% 79,328 78,934
70% 70.1% 69,412 69,527
60% 59.6% 59,496 59,122
50% 50.8% 49,580 50,367
40% 39.7% 39,664 39,400
30% 30.5% 29,748 30,195
20% 19.8% 19,832 19,600
10% 10.0% 9,916 9,887
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,801
Calibration 2     93,365
Calibration 3     93,128
ssj_ops@calibrated=93,246
100% 99.4% 93,246 92,682
90% 90.1% 83,922 84,024
80% 79.7% 74,597 74,277
70% 70.5% 65,273 65,713
60% 59.5% 55,948 55,504
50% 50.1% 46,623 46,746
40% 39.7% 37,299 36,980
30% 29.5% 27,974 27,495
20% 19.9% 18,649 18,563
10% 9.8% 9,325 9,155
Active Idle   0 0
Graph of results

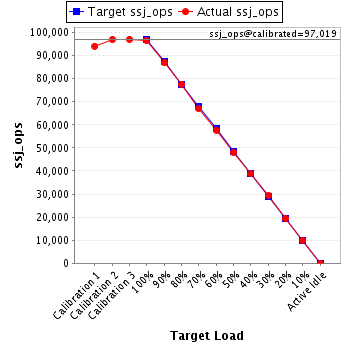

JVM 'SLES12SP5-Node02.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,121
Calibration 2     96,918
Calibration 3     97,120
ssj_ops@calibrated=97,019
100% 99.5% 97,019 96,560
90% 89.6% 87,317 86,933
80% 80.1% 77,615 77,668
70% 69.1% 67,913 67,017
60% 59.5% 58,211 57,734
50% 49.6% 48,510 48,079
40% 39.9% 38,808 38,713
30% 30.2% 29,106 29,268
20% 19.9% 19,404 19,296
10% 10.1% 9,702 9,796
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,706
Calibration 2     100,418
Calibration 3     98,458
ssj_ops@calibrated=99,438
100% 99.2% 99,438 98,632
90% 90.2% 89,494 89,683
80% 79.8% 79,550 79,308
70% 70.5% 69,607 70,073
60% 60.1% 59,663 59,787
50% 50.5% 49,719 50,195
40% 40.5% 39,775 40,304
30% 29.8% 29,831 29,638
20% 19.8% 19,888 19,641
10% 10.2% 9,944 10,121
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,822
Calibration 2     95,157
Calibration 3     93,179
ssj_ops@calibrated=94,168
100% 99.2% 94,168 93,432
90% 90.0% 84,751 84,750
80% 80.0% 75,335 75,325
70% 70.2% 65,918 66,132
60% 59.6% 56,501 56,167
50% 50.5% 47,084 47,533
40% 40.2% 37,667 37,829
30% 29.8% 28,250 28,046
20% 19.9% 18,834 18,727
10% 10.0% 9,417 9,375
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,266
Calibration 2     96,407
Calibration 3     96,048
ssj_ops@calibrated=96,228
100% 100.2% 96,228 96,425
90% 89.8% 86,605 86,404
80% 80.3% 76,982 77,283
70% 69.9% 67,359 67,261
60% 60.2% 57,737 57,908
50% 50.3% 48,114 48,397
40% 40.3% 38,491 38,770
30% 29.6% 28,868 28,461
20% 19.8% 19,246 19,079
10% 9.8% 9,623 9,421
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,279
Calibration 2     97,017
Calibration 3     97,137
ssj_ops@calibrated=97,077
100% 100.2% 97,077 97,250
90% 89.8% 87,369 87,189
80% 80.0% 77,661 77,699
70% 70.3% 67,954 68,236
60% 59.8% 58,246 58,091
50% 49.9% 48,538 48,469
40% 40.5% 38,831 39,337
30% 30.3% 29,123 29,432
20% 20.4% 19,415 19,842
10% 9.7% 9,708 9,396
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,292
Calibration 2     97,972
Calibration 3     95,815
ssj_ops@calibrated=96,894
100% 97.6% 96,894 94,540
90% 90.6% 87,204 87,826
80% 80.5% 77,515 78,001
70% 70.7% 67,826 68,549
60% 60.0% 58,136 58,126
50% 50.0% 48,447 48,436
40% 40.4% 38,757 39,166
30% 28.9% 29,068 27,963
20% 20.1% 19,379 19,467
10% 10.2% 9,689 9,858
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,986
Calibration 2     94,112
Calibration 3     94,266
ssj_ops@calibrated=94,189
100% 100.3% 94,189 94,515
90% 89.4% 84,770 84,236
80% 79.9% 75,351 75,233
70% 70.6% 65,932 66,519
60% 59.9% 56,513 56,451
50% 49.0% 47,095 46,107
40% 39.8% 37,676 37,458
30% 29.9% 28,257 28,134
20% 20.1% 18,838 18,925
10% 10.3% 9,419 9,696
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,506
Calibration 2     102,851
Calibration 3     102,929
ssj_ops@calibrated=102,890
100% 100.1% 102,890 103,030
90% 89.6% 92,601 92,141
80% 78.7% 82,312 80,968
70% 70.1% 72,023 72,127
60% 60.5% 61,734 62,260
50% 49.7% 51,445 51,147
40% 39.1% 41,156 40,266
30% 29.8% 30,867 30,670
20% 19.6% 20,578 20,200
10% 9.9% 10,289 10,212
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,202
Calibration 2     92,639
Calibration 3     91,612
ssj_ops@calibrated=92,126
100% 100.0% 92,126 92,133
90% 90.7% 82,913 83,594
80% 80.4% 73,700 74,050
70% 70.3% 64,488 64,805
60% 59.8% 55,275 55,053
50% 50.0% 46,063 46,074
40% 39.3% 36,850 36,168
30% 29.7% 27,638 27,319
20% 20.4% 18,425 18,783
10% 10.2% 9,213 9,425
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,650
Calibration 2     101,136
Calibration 3     102,924
ssj_ops@calibrated=102,030
100% 99.1% 102,030 101,083
90% 89.5% 91,827 91,340
80% 79.8% 81,624 81,458
70% 69.5% 71,421 70,865
60% 59.4% 61,218 60,649
50% 50.3% 51,015 51,273
40% 39.8% 40,812 40,617
30% 29.6% 30,609 30,200
20% 19.8% 20,406 20,200
10% 10.0% 10,203 10,162
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,859
Calibration 2     103,141
Calibration 3     102,681
ssj_ops@calibrated=102,911
100% 100.0% 102,911 102,934
90% 89.8% 92,620 92,458
80% 79.5% 82,329 81,852
70% 69.4% 72,038 71,454
60% 60.5% 61,747 62,245
50% 50.1% 51,455 51,536
40% 39.8% 41,164 40,958
30% 29.4% 30,873 30,209
20% 20.4% 20,582 20,958
10% 10.1% 10,291 10,374
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,213
Calibration 2     99,788
Calibration 3     99,154
ssj_ops@calibrated=99,471
100% 99.7% 99,471 99,183
90% 90.3% 89,524 89,868
80% 79.8% 79,577 79,335
70% 70.1% 69,630 69,720
60% 61.5% 59,683 61,171
50% 49.5% 49,735 49,246
40% 40.4% 39,788 40,217
30% 29.9% 29,841 29,783
20% 19.9% 19,894 19,837
10% 10.1% 9,947 10,075
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,015
Calibration 2     99,480
Calibration 3     97,940
ssj_ops@calibrated=98,710
100% 99.1% 98,710 97,793
90% 90.1% 88,839 88,914
80% 79.7% 78,968 78,656
70% 70.3% 69,097 69,367
60% 60.4% 59,226 59,630
50% 50.1% 49,355 49,445
40% 39.0% 39,484 38,506
30% 29.6% 29,613 29,191
20% 20.1% 19,742 19,803
10% 9.6% 9,871 9,516
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,491
Calibration 2     100,507
Calibration 3     99,524
ssj_ops@calibrated=100,015
100% 98.4% 100,015 98,380
90% 89.6% 90,014 89,577
80% 80.9% 80,012 80,890
70% 68.6% 70,011 68,649
60% 59.8% 60,009 59,768
50% 50.1% 50,008 50,125
40% 40.2% 40,006 40,197
30% 29.7% 30,005 29,747
20% 19.8% 20,003 19,829
10% 10.1% 10,002 10,117
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,823
Calibration 2     96,877
Calibration 3     96,479
ssj_ops@calibrated=96,678
100% 98.9% 96,678 95,587
90% 89.0% 87,010 86,077
80% 80.2% 77,342 77,509
70% 69.5% 67,675 67,210
60% 59.4% 58,007 57,383
50% 50.1% 48,339 48,452
40% 41.1% 38,671 39,764
30% 29.4% 29,003 28,404
20% 20.5% 19,336 19,831
10% 10.0% 9,668 9,693
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,575
Calibration 2     94,743
Calibration 3     93,972
ssj_ops@calibrated=94,357
100% 99.9% 94,357 94,289
90% 89.6% 84,921 84,533
80% 80.3% 75,486 75,804
70% 70.1% 66,050 66,119
60% 60.2% 56,614 56,768
50% 49.3% 47,179 46,472
40% 40.3% 37,743 38,011
30% 29.7% 28,307 28,044
20% 19.4% 18,871 18,279
10% 9.8% 9,436 9,250
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,238
Calibration 2     96,919
Calibration 3     95,928
ssj_ops@calibrated=96,424
100% 99.7% 96,424 96,131
90% 90.1% 86,781 86,877
80% 80.2% 77,139 77,318
70% 69.6% 67,497 67,089
60% 59.8% 57,854 57,657
50% 50.3% 48,212 48,549
40% 39.4% 38,570 37,967
30% 29.9% 28,927 28,801
20% 20.4% 19,285 19,630
10% 9.7% 9,642 9,396
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,945
Calibration 2     98,386
Calibration 3     98,190
ssj_ops@calibrated=98,288
100% 98.9% 98,288 97,179
90% 89.4% 88,459 87,887
80% 79.6% 78,630 78,217
70% 69.4% 68,802 68,259
60% 60.3% 58,973 59,225
50% 50.2% 49,144 49,336
40% 39.4% 39,315 38,762
30% 29.7% 29,486 29,162
20% 19.6% 19,658 19,295
10% 9.7% 9,829 9,579
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,765
Calibration 2     100,049
Calibration 3     100,406
ssj_ops@calibrated=100,228
100% 98.9% 100,228 99,079
90% 89.8% 90,205 90,050
80% 79.9% 80,182 80,105
70% 70.7% 70,159 70,849
60% 61.0% 60,137 61,110
50% 49.9% 50,114 49,965
40% 40.0% 40,091 40,044
30% 30.0% 30,068 30,062
20% 20.1% 20,046 20,108
10% 10.0% 10,023 9,992
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,464
Calibration 2     98,965
Calibration 3     101,101
ssj_ops@calibrated=100,033
100% 99.5% 100,033 99,538
90% 91.3% 90,030 91,366
80% 79.6% 80,026 79,638
70% 70.6% 70,023 70,579
60% 60.3% 60,020 60,345
50% 50.1% 50,017 50,110
40% 40.4% 40,013 40,461
30% 30.2% 30,010 30,161
20% 20.2% 20,007 20,242
10% 10.2% 10,003 10,175
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,227
Calibration 2     98,135
Calibration 3     98,275
ssj_ops@calibrated=98,205
100% 99.2% 98,205 97,468
90% 90.8% 88,384 89,204
80% 79.5% 78,564 78,034
70% 69.4% 68,743 68,138
60% 59.6% 58,923 58,517
50% 49.6% 49,102 48,691
40% 39.8% 39,282 39,094
30% 30.1% 29,461 29,586
20% 20.0% 19,641 19,640
10% 10.2% 9,820 10,046
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,057
Calibration 2     97,183
Calibration 3     96,752
ssj_ops@calibrated=96,967
100% 99.5% 96,967 96,450
90% 89.7% 87,270 87,022
80% 79.9% 77,574 77,470
70% 69.5% 67,877 67,397
60% 60.0% 58,180 58,213
50% 50.4% 48,484 48,906
40% 40.2% 38,787 39,000
30% 31.1% 29,090 30,158
20% 20.0% 19,393 19,396
10% 9.9% 9,697 9,600
Active Idle   0 0

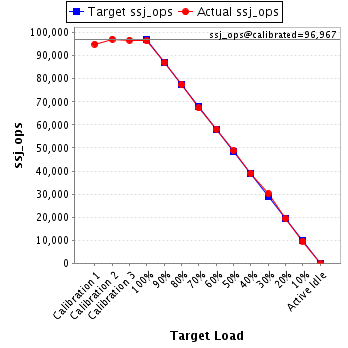

Graph of results
JVM 'SLES12SP5-Node02.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,645
Calibration 2     96,980
Calibration 3     96,608
ssj_ops@calibrated=96,794
100% 98.6% 96,794 95,449
90% 91.0% 87,115 88,043
80% 80.1% 77,435 77,553
70% 70.3% 67,756 68,023
60% 59.1% 58,076 57,191
50% 50.4% 48,397 48,827
40% 40.0% 38,718 38,679
30% 30.0% 29,038 29,062
20% 19.9% 19,359 19,224
10% 10.0% 9,679 9,687
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,335
Calibration 2     99,024
Calibration 3     98,325
ssj_ops@calibrated=98,675
100% 98.9% 98,675 97,600
90% 88.9% 88,807 87,751
80% 80.5% 78,940 79,461
70% 70.7% 69,072 69,801
60% 59.9% 59,205 59,063
50% 50.4% 49,337 49,740
40% 40.9% 39,470 40,339
30% 30.0% 29,602 29,643
20% 20.0% 19,735 19,728
10% 9.6% 9,867 9,518
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,933
Calibration 2     98,041
Calibration 3     96,072
ssj_ops@calibrated=97,057
100% 99.1% 97,057 96,207
90% 89.7% 87,351 87,104
80% 80.5% 77,646 78,138
70% 70.0% 67,940 67,907
60% 59.6% 58,234 57,849
50% 49.8% 48,528 48,295
40% 39.9% 38,823 38,717
30% 29.9% 29,117 29,011
20% 20.3% 19,411 19,712
10% 10.2% 9,706 9,937
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,082
Calibration 2     99,388
Calibration 3     99,027
ssj_ops@calibrated=99,207
100% 100.2% 99,207 99,383
90% 90.6% 89,287 89,839
80% 80.1% 79,366 79,432
70% 69.9% 69,445 69,343
60% 59.9% 59,524 59,397
50% 49.0% 49,604 48,644
40% 40.7% 39,683 40,411
30% 30.1% 29,762 29,897
20% 19.9% 19,841 19,711
10% 10.2% 9,921 10,071
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,832
Calibration 2     98,506
Calibration 3     97,059
ssj_ops@calibrated=97,783
100% 100.1% 97,783 97,898
90% 90.0% 88,004 87,996
80% 80.6% 78,226 78,847
70% 69.6% 68,448 68,012
60% 60.5% 58,670 59,150
50% 49.6% 48,891 48,487
40% 40.0% 39,113 39,131
30% 30.5% 29,335 29,862
20% 20.2% 19,557 19,762
10% 9.8% 9,778 9,626
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,343
Calibration 2     98,887
Calibration 3     98,357
ssj_ops@calibrated=98,622
100% 99.9% 98,622 98,494
90% 90.1% 88,760 88,823
80% 79.9% 78,898 78,805
70% 69.9% 69,035 68,959
60% 59.6% 59,173 58,810
50% 51.3% 49,311 50,618
40% 40.4% 39,449 39,854
30% 29.4% 29,587 28,967
20% 19.9% 19,724 19,615
10% 10.3% 9,862 10,181
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,480
Calibration 2     95,637
Calibration 3     94,052
ssj_ops@calibrated=94,844
100% 99.7% 94,844 94,589
90% 90.1% 85,360 85,410
80% 79.0% 75,875 74,887
70% 70.9% 66,391 67,246
60% 60.8% 56,906 57,665
50% 50.2% 47,422 47,573
40% 40.5% 37,938 38,387
30% 30.4% 28,453 28,796
20% 20.4% 18,969 19,346
10% 9.9% 9,484 9,358
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,436
Calibration 2     95,855
Calibration 3     93,631
ssj_ops@calibrated=94,743
100% 100.7% 94,743 95,441
90% 89.9% 85,269 85,168
80% 80.1% 75,794 75,858
70% 70.2% 66,320 66,525
60% 59.8% 56,846 56,624
50% 50.1% 47,372 47,473
40% 40.6% 37,897 38,471
30% 29.9% 28,423 28,297
20% 20.8% 18,949 19,694
10% 10.0% 9,474 9,512
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,811
Calibration 2     98,172
Calibration 3     98,792
ssj_ops@calibrated=98,482
100% 99.7% 98,482 98,145
90% 90.0% 88,634 88,612
80% 80.3% 78,785 79,074
70% 70.4% 68,937 69,362
60% 59.7% 59,089 58,834
50% 50.7% 49,241 49,895
40% 40.1% 39,393 39,453
30% 30.3% 29,545 29,850
20% 20.2% 19,696 19,879
10% 10.0% 9,848 9,846
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,524
Calibration 2     96,328
Calibration 3     94,931
ssj_ops@calibrated=95,630
100% 99.7% 95,630 95,321
90% 90.1% 86,067 86,134
80% 80.8% 76,504 77,310
70% 70.1% 66,941 67,054
60% 60.5% 57,378 57,844
50% 49.0% 47,815 46,891
40% 40.1% 38,252 38,338
30% 29.3% 28,689 28,050
20% 20.0% 19,126 19,115
10% 10.1% 9,563 9,629
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,342
Calibration 2     95,905
Calibration 3     94,138
ssj_ops@calibrated=95,021
100% 98.8% 95,021 93,856
90% 91.0% 85,519 86,504
80% 80.3% 76,017 76,333
70% 70.7% 66,515 67,194
60% 59.8% 57,013 56,839
50% 50.0% 47,511 47,472
40% 40.3% 38,009 38,296
30% 31.3% 28,506 29,787
20% 20.3% 19,004 19,296
10% 10.3% 9,502 9,804
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,356
Calibration 2     93,955
Calibration 3     93,607
ssj_ops@calibrated=93,781
100% 98.8% 93,781 92,702
90% 89.1% 84,403 83,569
80% 79.7% 75,025 74,721
70% 70.5% 65,647 66,093
60% 60.5% 56,269 56,762
50% 50.4% 46,891 47,262
40% 40.0% 37,512 37,496
30% 29.6% 28,134 27,775
20% 20.2% 18,756 18,962
10% 9.9% 9,378 9,304
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,235
Calibration 2     99,990
Calibration 3     98,909
ssj_ops@calibrated=99,449
100% 99.6% 99,449 99,044
90% 89.2% 89,504 88,686
80% 80.8% 79,560 80,362
70% 69.7% 69,615 69,340
60% 59.9% 59,670 59,588
50% 50.4% 49,725 50,123
40% 39.9% 39,780 39,632
30% 29.8% 29,835 29,642
20% 19.6% 19,890 19,496
10% 10.3% 9,945 10,246
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,787
Calibration 2     99,141
Calibration 3     99,063
ssj_ops@calibrated=99,102
100% 99.4% 99,102 98,531
90% 90.5% 89,192 89,646
80% 79.5% 79,282 78,792
70% 69.1% 69,371 68,525
60% 59.7% 59,461 59,139
50% 50.1% 49,551 49,636
40% 40.5% 39,641 40,156
30% 30.0% 29,731 29,721
20% 20.3% 19,820 20,131
10% 9.8% 9,910 9,717
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,913
Calibration 2     96,839
Calibration 3     95,478
ssj_ops@calibrated=96,159
100% 99.9% 96,159 96,097
90% 89.7% 86,543 86,211
80% 80.4% 76,927 77,338
70% 69.1% 67,311 66,404
60% 60.6% 57,695 58,245
50% 49.9% 48,079 47,939
40% 39.7% 38,463 38,172
30% 30.3% 28,848 29,089
20% 20.4% 19,232 19,575
10% 10.2% 9,616 9,841
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,760
Calibration 2     93,441
Calibration 3     93,634
ssj_ops@calibrated=93,537
100% 99.8% 93,537 93,350
90% 90.2% 84,184 84,395
80% 81.0% 74,830 75,788
70% 70.5% 65,476 65,943
60% 60.0% 56,122 56,160
50% 49.8% 46,769 46,560
40% 40.3% 37,415 37,727
30% 29.7% 28,061 27,826
20% 20.0% 18,707 18,687
10% 10.2% 9,354 9,576
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,492
Calibration 2     94,720
Calibration 3     95,795
ssj_ops@calibrated=95,258
100% 100.5% 95,258 95,778
90% 90.3% 85,732 86,011
80% 78.6% 76,206 74,917
70% 69.4% 66,680 66,079
60% 60.2% 57,155 57,346
50% 50.7% 47,629 48,251
40% 39.7% 38,103 37,862
30% 30.2% 28,577 28,729
20% 20.4% 19,052 19,408
10% 9.9% 9,526 9,392
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,738
Calibration 2     100,943
Calibration 3     101,476
ssj_ops@calibrated=101,210
100% 100.2% 101,210 101,408
90% 89.4% 91,089 90,450
80% 80.0% 80,968 80,990
70% 69.1% 70,847 69,973
60% 60.6% 60,726 61,366
50% 50.3% 50,605 50,884
40% 40.1% 40,484 40,578
30% 30.1% 30,363 30,512
20% 20.3% 20,242 20,565
10% 10.4% 10,121 10,493
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,234
Calibration 2     98,863
Calibration 3     98,832
ssj_ops@calibrated=98,848
100% 98.6% 98,848 97,441
90% 90.9% 88,963 89,865
80% 80.0% 79,078 79,107
70% 70.0% 69,193 69,231
60% 59.9% 59,309 59,181
50% 50.1% 49,424 49,474
40% 40.3% 39,539 39,798
30% 30.2% 29,654 29,855
20% 20.3% 19,770 20,057
10% 9.6% 9,885 9,529
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,131
Calibration 2     97,563
Calibration 3     96,700
ssj_ops@calibrated=97,132
100% 98.7% 97,132 95,844
90% 89.4% 87,418 86,872
80% 80.9% 77,705 78,559
70% 70.5% 67,992 68,474
60% 59.5% 58,279 57,815
50% 50.2% 48,566 48,780
40% 39.8% 38,853 38,690
30% 30.0% 29,139 29,092
20% 20.3% 19,426 19,691
10% 10.0% 9,713 9,746
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,186
Calibration 2     97,060
Calibration 3     96,346
ssj_ops@calibrated=96,703
100% 98.8% 96,703 95,502
90% 90.8% 87,033 87,840
80% 79.7% 77,363 77,088
70% 69.9% 67,692 67,617
60% 59.3% 58,022 57,306
50% 49.8% 48,352 48,206
40% 40.0% 38,681 38,639
30% 30.0% 29,011 29,015
20% 19.9% 19,341 19,245
10% 10.1% 9,670 9,730
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,398
Calibration 2     98,767
Calibration 3     98,196
ssj_ops@calibrated=98,481
100% 98.7% 98,481 97,166
90% 88.4% 88,633 87,092
80% 79.1% 78,785 77,948
70% 69.3% 68,937 68,214
60% 60.0% 59,089 59,072
50% 50.4% 49,241 49,613
40% 39.2% 39,393 38,587
30% 29.5% 29,544 29,003
20% 20.0% 19,696 19,687
10% 9.7% 9,848 9,571
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,120
Calibration 2     98,047
Calibration 3     97,182
ssj_ops@calibrated=97,615
100% 98.8% 97,615 96,452
90% 90.5% 87,853 88,328
80% 80.7% 78,092 78,752
70% 71.1% 68,330 69,433
60% 60.3% 58,569 58,886
50% 49.7% 48,807 48,520
40% 40.3% 39,046 39,368
30% 29.8% 29,284 29,075
20% 19.8% 19,523 19,306
10% 9.9% 9,761 9,662
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,159
Calibration 2     99,355
Calibration 3     99,477
ssj_ops@calibrated=99,416
100% 99.8% 99,416 99,249
90% 89.9% 89,475 89,354
80% 80.6% 79,533 80,105
70% 70.4% 69,591 70,005
60% 59.4% 59,650 59,055
50% 50.2% 49,708 49,935
40% 40.0% 39,766 39,766
30% 29.4% 29,825 29,191
20% 19.9% 19,883 19,766
10% 10.2% 9,942 10,129
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,611
Calibration 2     97,745
Calibration 3     96,424
ssj_ops@calibrated=97,084
100% 99.9% 97,084 97,012
90% 90.1% 87,376 87,437
80% 79.7% 77,668 77,421
70% 70.1% 67,959 68,024
60% 61.0% 58,251 59,263
50% 50.6% 48,542 49,123
40% 39.4% 38,834 38,216
30% 29.3% 29,125 28,448
20% 19.6% 19,417 18,994
10% 9.6% 9,708 9,358
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,562
Calibration 2     95,013
Calibration 3     95,688
ssj_ops@calibrated=95,351
100% 101.1% 95,351 96,425
90% 90.2% 85,816 85,967
80% 80.3% 76,281 76,604
70% 69.5% 66,745 66,282
60% 60.1% 57,210 57,262
50% 49.6% 47,675 47,296
40% 39.7% 38,140 37,898
30% 30.2% 28,605 28,767
20% 20.3% 19,070 19,321
10% 9.9% 9,535 9,483
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,926
Calibration 2     93,300
Calibration 3     92,865
ssj_ops@calibrated=93,083
100% 99.9% 93,083 92,973
90% 89.9% 83,775 83,711
80% 79.9% 74,466 74,392
70% 70.7% 65,158 65,787
60% 59.2% 55,850 55,072
50% 50.0% 46,541 46,573
40% 39.8% 37,233 37,062
30% 29.7% 27,925 27,667
20% 19.6% 18,617 18,249
10% 9.7% 9,308 9,032
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,592
Calibration 2     98,426
Calibration 3     98,158
ssj_ops@calibrated=98,292
100% 98.8% 98,292 97,123
90% 90.4% 88,463 88,865
80% 81.4% 78,633 80,055
70% 70.2% 68,804 68,976
60% 60.7% 58,975 59,675
50% 50.0% 49,146 49,187
40% 40.8% 39,317 40,108
30% 29.8% 29,488 29,277
20% 20.1% 19,658 19,783
10% 10.1% 9,829 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,238
Calibration 2     99,095
Calibration 3     98,594
ssj_ops@calibrated=98,845
100% 98.4% 98,845 97,293
90% 90.7% 88,960 89,609
80% 80.1% 79,076 79,220
70% 70.3% 69,191 69,534
60% 59.4% 59,307 58,723
50% 49.3% 49,422 48,717
40% 40.1% 39,538 39,611
30% 29.5% 29,653 29,152
20% 20.4% 19,769 20,172
10% 10.1% 9,884 10,000
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,078
Calibration 2     94,666
Calibration 3     94,018
ssj_ops@calibrated=94,342
100% 99.5% 94,342 93,849
90% 89.6% 84,908 84,542
80% 80.4% 75,474 75,894
70% 70.8% 66,040 66,836
60% 60.2% 56,605 56,826
50% 50.4% 47,171 47,550
40% 40.4% 37,737 38,099
30% 29.8% 28,303 28,138
20% 20.0% 18,868 18,867
10% 9.6% 9,434 9,069
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,835
Calibration 2     94,261
Calibration 3     94,582
ssj_ops@calibrated=94,422
100% 98.7% 94,422 93,172
90% 89.3% 84,979 84,328
80% 79.3% 75,537 74,867
70% 69.6% 66,095 65,730
60% 60.4% 56,653 57,026
50% 49.4% 47,211 46,659
40% 40.2% 37,769 37,967
30% 30.3% 28,326 28,629
20% 19.9% 18,884 18,833
10% 9.8% 9,442 9,296
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,902
Calibration 2     98,266
Calibration 3     97,855
ssj_ops@calibrated=98,060
100% 99.0% 98,060 97,057
90% 90.7% 88,254 88,919
80% 79.6% 78,448 78,081
70% 71.3% 68,642 69,891
60% 60.2% 58,836 58,992
50% 50.4% 49,030 49,402
40% 39.5% 39,224 38,777
30% 30.0% 29,418 29,434
20% 20.0% 19,612 19,623
10% 9.9% 9,806 9,696
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,331
Calibration 2     99,440
Calibration 3     98,864
ssj_ops@calibrated=99,152
100% 99.2% 99,152 98,369
90% 89.7% 89,237 88,920
80% 80.2% 79,321 79,480
70% 70.2% 69,406 69,565
60% 59.8% 59,491 59,329
50% 49.7% 49,576 49,325
40% 40.3% 39,661 39,958
30% 30.3% 29,746 30,067
20% 19.6% 19,830 19,404
10% 9.9% 9,915 9,821
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,362
Calibration 2     96,604
Calibration 3     95,255
ssj_ops@calibrated=95,929
100% 99.5% 95,929 95,408
90% 89.6% 86,337 85,999
80% 80.8% 76,744 77,553
70% 70.7% 67,151 67,844
60% 60.1% 57,558 57,619
50% 49.9% 47,965 47,867
40% 39.8% 38,372 38,170
30% 29.8% 28,779 28,578
20% 20.2% 19,186 19,371
10% 9.9% 9,593 9,472
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,556
Calibration 2     96,140
Calibration 3     95,202
ssj_ops@calibrated=95,671
100% 98.7% 95,671 94,408
90% 90.8% 86,104 86,906
80% 80.5% 76,537 77,022
70% 70.5% 66,970 67,453
60% 59.8% 57,403 57,204
50% 50.2% 47,836 48,053
40% 40.0% 38,269 38,303
30% 30.5% 28,701 29,225
20% 20.0% 19,134 19,098
10% 9.9% 9,567 9,483
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,509
Calibration 2     101,414
Calibration 3     101,428
ssj_ops@calibrated=101,421
100% 99.1% 101,421 100,514
90% 90.3% 91,279 91,549
80% 80.9% 81,137 82,073
70% 70.3% 70,995 71,256
60% 61.3% 60,853 62,204
50% 49.8% 50,711 50,486
40% 40.3% 40,568 40,921
30% 30.1% 30,426 30,492
20% 20.3% 20,284 20,539
10% 10.3% 10,142 10,474
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,462
Calibration 2     92,523
Calibration 3     92,573
ssj_ops@calibrated=92,548
100% 99.0% 92,548 91,649
90% 90.2% 83,293 83,447
80% 80.2% 74,038 74,210
70% 70.3% 64,784 65,027
60% 59.6% 55,529 55,170
50% 50.8% 46,274 46,988
40% 40.9% 37,019 37,813
30% 30.4% 27,764 28,181
20% 19.9% 18,510 18,458
10% 10.0% 9,255 9,265
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,443
Calibration 2     96,506
Calibration 3     95,301
ssj_ops@calibrated=95,903
100% 99.4% 95,903 95,333
90% 88.9% 86,313 85,242
80% 79.6% 76,723 76,358
70% 70.8% 67,132 67,922
60% 59.6% 57,542 57,140
50% 49.4% 47,952 47,355
40% 40.3% 38,361 38,697
30% 30.4% 28,771 29,142
20% 20.2% 19,181 19,420
10% 10.4% 9,590 9,937
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,701
Calibration 2     100,489
Calibration 3     99,869
ssj_ops@calibrated=100,179
100% 100.1% 100,179 100,235
90% 90.1% 90,161 90,218
80% 80.5% 80,143 80,616
70% 69.8% 70,126 69,965
60% 60.2% 60,108 60,295
50% 49.8% 50,090 49,856
40% 39.9% 40,072 39,946
30% 30.6% 30,054 30,645
20% 19.7% 20,036 19,785
10% 10.2% 10,018 10,225
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,535
Calibration 2     96,298
Calibration 3     96,136
ssj_ops@calibrated=96,217
100% 98.6% 96,217 94,903
90% 90.2% 86,595 86,784
80% 80.4% 76,973 77,359
70% 70.0% 67,352 67,378
60% 60.5% 57,730 58,240
50% 49.7% 48,108 47,837
40% 40.5% 38,487 38,929
30% 30.4% 28,865 29,263
20% 19.5% 19,243 18,781
10% 9.9% 9,622 9,533
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,811
Calibration 2     97,789
Calibration 3     97,538
ssj_ops@calibrated=97,664
100% 100.1% 97,664 97,800
90% 89.2% 87,897 87,102
80% 80.5% 78,131 78,593
70% 70.0% 68,365 68,357
60% 61.0% 58,598 59,581
50% 50.4% 48,832 49,206
40% 40.0% 39,065 39,046
30% 29.7% 29,299 28,978
20% 20.1% 19,533 19,590
10% 9.8% 9,766 9,614
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,507
Calibration 2     100,194
Calibration 3     100,191
ssj_ops@calibrated=100,192
100% 98.2% 100,192 98,391
90% 90.5% 90,173 90,656
80% 80.4% 80,154 80,520
70% 70.3% 70,135 70,476
60% 59.9% 60,115 60,001
50% 49.5% 50,096 49,591
40% 40.5% 40,077 40,586
30% 29.6% 30,058 29,617
20% 20.3% 20,038 20,361
10% 10.5% 10,019 10,508
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,471
Calibration 2     91,913
Calibration 3     91,179
ssj_ops@calibrated=91,546
100% 99.6% 91,546 91,163
90% 91.1% 82,392 83,374
80% 79.8% 73,237 73,051
70% 71.1% 64,082 65,087
60% 59.2% 54,928 54,240
50% 50.8% 45,773 46,537
40% 40.1% 36,619 36,714
30% 29.7% 27,464 27,208
20% 20.2% 18,309 18,504
10% 9.9% 9,155 9,037
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,887
Calibration 2     97,956
Calibration 3     97,767
ssj_ops@calibrated=97,862
100% 100.2% 97,862 98,074
90% 89.8% 88,076 87,886
80% 80.3% 78,289 78,596
70% 70.7% 68,503 69,175
60% 60.4% 58,717 59,155
50% 49.9% 48,931 48,854
40% 40.2% 39,145 39,378
30% 30.6% 29,359 29,930
20% 19.5% 19,572 19,102
10% 10.0% 9,786 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,696
Calibration 2     96,924
Calibration 3     96,424
ssj_ops@calibrated=96,674
100% 99.1% 96,674 95,762
90% 89.2% 87,007 86,226
80% 79.7% 77,339 77,082
70% 69.9% 67,672 67,575
60% 59.2% 58,005 57,209
50% 49.1% 48,337 47,473
40% 40.2% 38,670 38,891
30% 29.6% 29,002 28,580
20% 20.1% 19,335 19,434
10% 9.8% 9,667 9,490
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,358
Calibration 2     98,495
Calibration 3     99,388
ssj_ops@calibrated=98,941
100% 98.8% 98,941 97,781
90% 89.9% 89,047 88,922
80% 79.7% 79,153 78,842
70% 71.2% 69,259 70,486
60% 61.1% 59,365 60,437
50% 50.2% 49,471 49,666
40% 40.2% 39,577 39,784
30% 30.5% 29,682 30,210
20% 20.1% 19,788 19,892
10% 10.0% 9,894 9,904
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,665
Calibration 2     101,623
Calibration 3     101,519
ssj_ops@calibrated=101,571
100% 98.8% 101,571 100,352
90% 90.4% 91,414 91,782
80% 79.5% 81,257 80,781
70% 69.3% 71,100 70,357
60% 60.3% 60,943 61,257
50% 50.4% 50,786 51,146
40% 40.3% 40,628 40,934
30% 30.0% 30,471 30,457
20% 20.0% 20,314 20,295
10% 10.2% 10,157 10,384
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,182
Calibration 2     99,025
Calibration 3     98,221
ssj_ops@calibrated=98,623
100% 99.2% 98,623 97,870
90% 89.7% 88,761 88,439
80% 79.8% 78,898 78,659
70% 70.1% 69,036 69,108
60% 59.8% 59,174 59,002
50% 50.3% 49,311 49,594
40% 40.2% 39,449 39,653
30% 29.9% 29,587 29,484
20% 20.2% 19,725 19,965
10% 10.0% 9,862 9,829
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,026
Calibration 2     100,282
Calibration 3     100,686
ssj_ops@calibrated=100,484
100% 99.8% 100,484 100,242
90% 90.9% 90,436 91,353
80% 79.5% 80,387 79,898
70% 69.8% 70,339 70,132
60% 60.3% 60,291 60,557
50% 50.7% 50,242 50,908
40% 40.8% 40,194 40,979
30% 29.6% 30,145 29,761
20% 20.2% 20,097 20,329
10% 10.2% 10,048 10,278
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,286
Calibration 2     97,712
Calibration 3     97,901
ssj_ops@calibrated=97,806
100% 99.4% 97,806 97,264
90% 89.3% 88,026 87,325
80% 79.5% 78,245 77,732
70% 69.5% 68,464 68,022
60% 60.4% 58,684 59,106
50% 50.1% 48,903 48,983
40% 39.5% 39,122 38,587
30% 30.0% 29,342 29,321
20% 20.4% 19,561 19,987
10% 10.0% 9,781 9,771
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,735
Calibration 2     100,200
Calibration 3     100,317
ssj_ops@calibrated=100,258
100% 100.0% 100,258 100,237
90% 89.5% 90,232 89,682
80% 80.1% 80,207 80,338
70% 70.1% 70,181 70,258
60% 59.6% 60,155 59,793
50% 50.0% 50,129 50,108
40% 40.7% 40,103 40,825
30% 30.3% 30,077 30,337
20% 19.6% 20,052 19,617
10% 9.8% 10,026 9,829
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,493
Calibration 2     94,530
Calibration 3     93,483
ssj_ops@calibrated=94,006
100% 98.7% 94,006 92,743
90% 89.6% 84,606 84,187
80% 79.4% 75,205 74,656
70% 70.3% 65,804 66,090
60% 60.5% 56,404 56,838
50% 49.6% 47,003 46,637
40% 39.5% 37,603 37,146
30% 29.6% 28,202 27,851
20% 19.8% 18,801 18,580
10% 9.6% 9,401 9,042
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node02.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,746
Calibration 2     98,146
Calibration 3     97,905
ssj_ops@calibrated=98,025
100% 100.3% 98,025 98,350
90% 90.3% 88,223 88,519
80% 79.6% 78,420 78,000
70% 70.7% 68,618 69,300
60% 59.5% 58,815 58,288
50% 49.9% 49,013 48,961
40% 39.7% 39,210 38,894
30% 30.1% 29,408 29,458
20% 19.4% 19,605 19,037
10% 10.2% 9,803 10,025
Active Idle   0 0
Graph of results
