SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

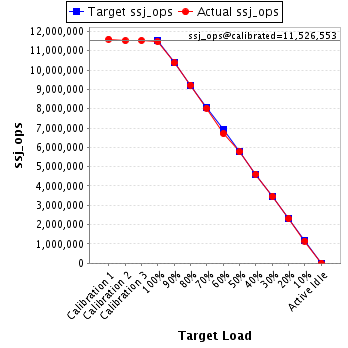

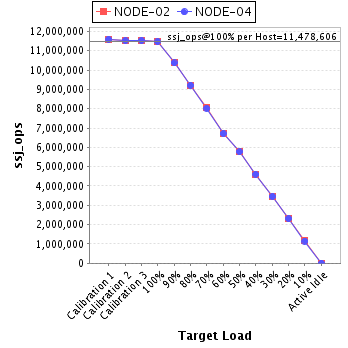

Hewlett Packard Enterprise Apollo XL225n Gen10 Plus			ssj_ops@100% = 22,957,212 ssj_ops@100% per Host = 11,478,606 ssj_ops@100% per JVM = 179,353
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Feb 22, 2021
Hardware Availability:	Mar-2021	Software Availability:	Jan-2021	Publication:	Mar 15, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
2	4	256	512	512	2	128

Shared Hardware
Enclosure:	Apollo 2000 Gen10 Plus
Form Factor:	2U
Power Supply Quantity and Rating (W):	2 x 3000
Power Supply Details:	HPE 3000W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP ProCurve 2910al Series Switch J9147A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Network switch not measured for power

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Apollo XL225n Gen10 Plus
Form Factor:	Blade
CPU Name:	AMD EPYC 7763 2.45 GHz
CPU Characteristics:	64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1728)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	start /NODE [0-15] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances:	64
JVM Initial Heap (MB):	1700
JVM Maximum Heap (MB):	1700
JVM Address Bits:	64
Boot Firmware Version:	A46 v2.40 (01/21/2021)
Management Firmware Version:	2.40 Jan 05 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB4598296

BIOS Platform Configuration (RBSU):

See SUT Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark started via PSExec
SPECpower_ssj.props input.load_level.number_warehouses set to 256 to detect the full number of available processors on the SUT
Windows Power Options=Balanced Mode
Processor power management: Minimum Processor State = 0%
Processor power management: Maximum Processor State = 100%
System cooling policy = Passive
PCI Express Power Management = Maximum Power Savings
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
Using Windows PowerShell, set the following powercfg properties:

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

None

See the Host Performance Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
