Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 34,394,737
ssj_ops@100% per Host = 11,464,912
ssj_ops@100% per JVM = 179,139
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jan-2021 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     34,791,609
Calibration 2     34,541,404
Calibration 3     34,581,529
ssj_ops@calibrated=34,561,466
100% 99.5% 34,561,466 34,394,737
90% 90.0% 31,105,320 31,109,432
80% 79.9% 27,649,173 27,621,873
70% 69.5% 24,193,026 24,035,602
60% 58.5% 20,736,880 20,222,225
50% 50.0% 17,280,733 17,276,538
40% 40.0% 13,824,586 13,825,972
30% 30.0% 10,368,440 10,374,486
20% 20.0% 6,912,293 6,909,528
10% 10.0% 3,456,147 3,451,565
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
3 6 384 768 768 3 192
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Apollo 2000 Gen10 Plus
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 3000
Power Supply Details: HPE 3000W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP ProCurve 2910al Series Switch J9147A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1728)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: start /NODE [0-15] /AFFINITY [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4598296
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
NODE-02 11,463,597
NODE-03 11,468,257
NODE-04 11,462,882
ssj_ops@100% 34,394,737
ssj_ops@100% per Host 11,464,912
ssj_ops@100% per JVM 179,139

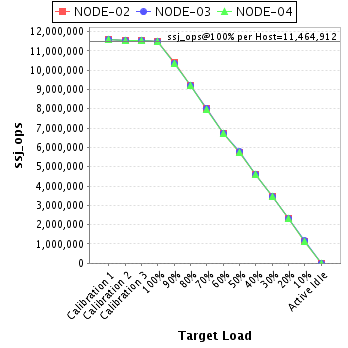

Graph of per-host results
Host 'NODE-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,592,271
Calibration 2     11,512,470
Calibration 3     11,531,919
ssj_ops@calibrated=11,522,194
100% 99.5% 11,522,194 11,463,597
90% 90.1% 10,369,975 10,380,502
80% 79.9% 9,217,755 9,203,780
70% 69.6% 8,065,536 8,023,749
60% 58.5% 6,913,317 6,735,921
50% 50.0% 5,761,097 5,757,477
40% 40.0% 4,608,878 4,611,251
30% 30.0% 3,456,658 3,459,081
20% 20.0% 2,304,439 2,307,038
10% 10.0% 1,152,219 1,147,171
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'NODE-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,593,200
Calibration 2     11,512,173
Calibration 3     11,530,890
ssj_ops@calibrated=11,521,532
100% 99.5% 11,521,532 11,468,257
90% 90.0% 10,369,379 10,365,220
80% 79.9% 9,217,226 9,209,298
70% 69.6% 8,065,072 8,023,134
60% 58.5% 6,912,919 6,742,937
50% 50.0% 5,760,766 5,765,764
40% 40.0% 4,608,613 4,613,069
30% 30.0% 3,456,460 3,461,621
20% 20.0% 2,304,306 2,300,059
10% 10.0% 1,152,153 1,155,248
Active Idle   0 0

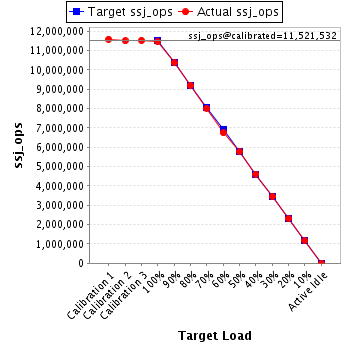

Graph of results
See the Host Performance Report for additional details.
Host 'NODE-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,606,138
Calibration 2     11,516,760
Calibration 3     11,518,720
ssj_ops@calibrated=11,517,740
100% 99.5% 11,517,740 11,462,882
90% 90.0% 10,365,966 10,363,710
80% 80.0% 9,214,192 9,208,795
70% 69.4% 8,062,418 7,988,719
60% 58.5% 6,910,644 6,743,367
50% 50.0% 5,758,870 5,753,297
40% 40.0% 4,607,096 4,601,652
30% 30.0% 3,455,322 3,453,783
20% 20.0% 2,303,548 2,302,431
10% 10.0% 1,151,774 1,149,146
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
