Hewlett Packard Enterprise Apollo XL225n Gen10 Plus SPECpower_ssj2008 = 16,205 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jan-2021 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,651 23.4
Calibration 2 1,695 23.4
Calibration 3 1,712 23.3
100% 1,694 23.3
90% 1,591 23.2
80% 1,472 23.2
70% 1,347 23.2
60% 1,193 23.2
50% 1,045 23.3
40% 907 23.4
30% 783 23.4
20% 695 23.4
10% 598 23.4
Active Idle 352 23.4

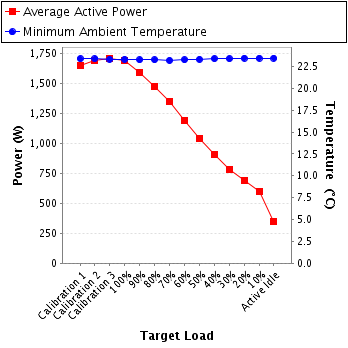

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-180-1
Date of Calibration: 17-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT connected to Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47167
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-20-1
Date of Calibration: 15-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT connected to Power Supply 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 4.01 10.0 0.994 840 0.5%
Calibration 2 211 300.0 4.11 10.0 0.994 862 0.5%
Calibration 3 211 300.0 4.15 10.0 0.994 871 0.5%
100% 211 300.0 4.10 10.0 0.994 861 0.5%
90% 212 300.0 3.85 10.0 0.993 809 0.5%
80% 212 300.0 3.57 10.0 0.992 750 0.6%
70% 212 300.0 3.27 10.0 0.990 686 0.6%
60% 212 300.0 2.90 10.0 0.989 608 0.7%
50% 212 300.0 2.57 5.0 0.987 537 0.5%
40% 212 300.0 2.25 5.0 0.983 469 0.5%
30% 212 300.0 1.96 5.0 0.978 406 0.6%
20% 212 300.0 1.77 5.0 0.974 365 0.6%
10% 212 300.0 1.55 5.0 0.967 318 0.7%
Active Idle 212 300.0 1.00 2.0 0.911 194 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 3.88 10.0 0.992 810 0.5%
Calibration 2 211 300.0 3.98 10.0 0.993 833 0.5%
Calibration 3 211 300.0 4.02 10.0 0.993 841 0.5%
100% 211 300.0 3.97 10.0 0.993 832 0.5%
90% 212 300.0 3.72 10.0 0.992 782 0.6%
80% 212 300.0 3.44 10.0 0.990 722 0.6%
70% 212 300.0 3.16 10.0 0.989 661 0.6%
60% 212 300.0 2.80 10.0 0.987 584 0.7%
50% 211 300.0 2.44 5.0 0.984 508 0.5%
40% 212 300.0 2.12 5.0 0.979 439 0.5%
30% 212 300.0 1.83 5.0 0.973 377 0.6%
20% 212 300.0 1.61 5.0 0.967 330 0.7%
10% 212 300.0 1.38 5.0 0.955 280 0.7%
Active Idle 212 300.0 0.856 2.0 0.870 158 0.6%
Power details for pwr2
