Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 37,367,143
ssj_ops@100% per Host = 12,455,714
ssj_ops@100% per JVM = 97,310
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 21, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,585,236
Calibration 2     37,570,298
Calibration 3     37,494,479
ssj_ops@calibrated=37,532,389
100% 99.6% 37,532,389 37,367,143
90% 90.0% 33,779,150 33,782,236
80% 80.0% 30,025,911 30,033,982
70% 70.0% 26,272,672 26,272,475
60% 60.0% 22,519,433 22,520,157
50% 50.0% 18,766,194 18,756,671
40% 40.0% 15,012,955 15,030,150
30% 30.0% 11,259,717 11,265,770
20% 20.0% 7,506,478 7,515,371
10% 10.0% 3,753,239 3,759,970
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
3 6 384 768 768 3 384
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Apollo 2000 Gen10 Plus
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 3000
Power Supply Details: HPE 3000W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP ProCurve 2910al Series Switch J9147A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
SLES12SP5-Node02 12,468,900
SLES12SP5-Node03 12,505,778
SLES12SP5-Node04 12,392,465
ssj_ops@100% 37,367,143
ssj_ops@100% per Host 12,455,714
ssj_ops@100% per JVM 97,310

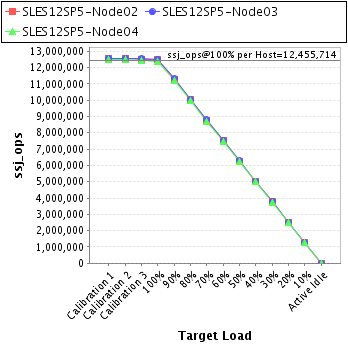

Graph of per-host results
Host 'SLES12SP5-Node02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,538,008
Calibration 2     12,534,840
Calibration 3     12,512,840
ssj_ops@calibrated=12,523,840
100% 99.6% 12,523,840 12,468,900
90% 90.1% 11,271,456 11,280,529
80% 80.1% 10,019,072 10,030,244
70% 70.1% 8,766,688 8,775,778
60% 60.1% 7,514,304 7,521,375
50% 50.0% 6,261,920 6,259,724
40% 40.0% 5,009,536 5,015,313
30% 30.0% 3,757,152 3,760,017
20% 20.0% 2,504,768 2,508,418
10% 10.0% 1,252,384 1,254,454
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SLES12SP5-Node03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,574,597
Calibration 2     12,570,019
Calibration 3     12,546,111
ssj_ops@calibrated=12,558,065
100% 99.6% 12,558,065 12,505,778
90% 90.0% 11,302,258 11,299,121
80% 80.0% 10,046,452 10,049,136
70% 70.0% 8,790,645 8,786,251
60% 60.0% 7,534,839 7,533,709
50% 50.0% 6,279,032 6,273,794
40% 40.0% 5,023,226 5,029,193
30% 30.0% 3,767,419 3,770,099
20% 20.0% 2,511,613 2,515,091
10% 10.0% 1,255,806 1,259,006
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SLES12SP5-Node04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,472,631
Calibration 2     12,465,440
Calibration 3     12,435,529
ssj_ops@calibrated=12,450,484
100% 99.5% 12,450,484 12,392,465
90% 90.0% 11,205,436 11,202,586
80% 80.0% 9,960,387 9,954,603
70% 70.0% 8,715,339 8,710,446
60% 60.0% 7,470,291 7,465,072
50% 50.0% 6,225,242 6,223,153
40% 40.0% 4,980,194 4,985,644
30% 30.0% 3,735,145 3,735,653
20% 20.0% 2,490,097 2,491,861
10% 10.0% 1,245,048 1,246,509
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
