SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus | SPECpower_ssj2008 = 18,845 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 19, 2021 |
| Hardware Availability: | Mar-2021 | Software Availability: | Jul-2020 | Publication: | Mar 15, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

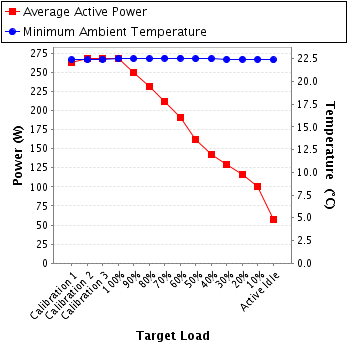

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 263 | 22.4 |
| Calibration 2 | 268 | 22.4 |
| Calibration 3 | 269 | 22.4 |
| 100% | 268 | 22.5 |
| 90% | 250 | 22.5 |
| 80% | 231 | 22.5 |
| 70% | 211 | 22.6 |
| 60% | 191 | 22.6 |
| 50% | 162 | 22.5 |
| 40% | 143 | 22.5 |
| 30% | 130 | 22.4 |
| 20% | 116 | 22.4 |
| 10% | 100 | 22.4 |
| Active Idle | 56.8 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K308562 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-FP7QP-20-1 |
| Date of Calibration: | 22-May-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300.0 | 1.27 | 2.0 | 0.982 | 263 | 0.4% |
| Calibration 2 | 212 | 300.0 | 1.29 | 2.0 | 0.983 | 268 | 0.4% |
| Calibration 3 | 212 | 300.0 | 1.29 | 2.0 | 0.983 | 269 | 0.4% |
| 100% | 212 | 300.0 | 1.29 | 2.0 | 0.983 | 268 | 0.4% |
| 90% | 212 | 300.0 | 1.20 | 2.0 | 0.981 | 250 | 0.4% |
| 80% | 212 | 300.0 | 1.11 | 2.0 | 0.981 | 231 | 0.4% |
| 70% | 212 | 300.0 | 1.02 | 2.0 | 0.978 | 211 | 0.5% |
| 60% | 212 | 300.0 | 0.924 | 2.0 | 0.974 | 191 | 0.5% |
| 50% | 212 | 300.0 | 0.793 | 1.0 | 0.966 | 162 | 0.4% |
| 40% | 212 | 300.0 | 0.705 | 1.0 | 0.958 | 143 | 0.4% |
| 30% | 212 | 300.0 | 0.644 | 1.0 | 0.950 | 130 | 0.4% |
| 20% | 212 | 300.0 | 0.581 | 1.0 | 0.940 | 116 | 0.5% |
| 10% | 212 | 300.0 | 0.512 | 1.0 | 0.923 | 100 | 0.5% |
| Active Idle | 212 | 300.0 | 0.334 | 0.5 | 0.804 | 56.8 | 0.6% |
