SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus | SPECpower_ssj2008 = 18,329 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 18, 2021 |
| Hardware Availability: | Mar-2021 | Software Availability: | Jul-2020 | Publication: | Mar 15, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

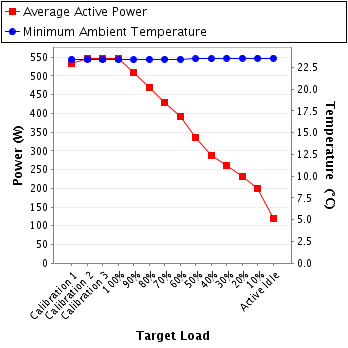

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 535 | 23.4 |
| Calibration 2 | 546 | 23.4 |
| Calibration 3 | 548 | 23.4 |
| 100% | 546 | 23.4 |
| 90% | 510 | 23.4 |
| 80% | 470 | 23.4 |
| 70% | 430 | 23.4 |
| 60% | 391 | 23.4 |
| 50% | 336 | 23.5 |
| 40% | 287 | 23.5 |
| 30% | 260 | 23.6 |
| 20% | 232 | 23.6 |
| 10% | 200 | 23.6 |
| Active Idle | 120 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-FP7QP-100-1 |
| Date of Calibration: | 22-May-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

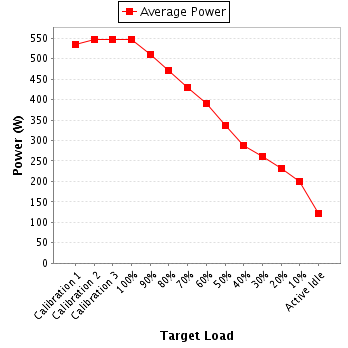

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 2.51 | 5.0 | 0.990 | 535 | 0.5% |
| Calibration 2 | 215 | 300.0 | 2.56 | 5.0 | 0.990 | 546 | 0.5% |
| Calibration 3 | 215 | 300.0 | 2.57 | 5.0 | 0.990 | 548 | 0.5% |
| 100% | 215 | 300.0 | 2.56 | 5.0 | 0.990 | 546 | 0.5% |
| 90% | 216 | 300.0 | 2.39 | 5.0 | 0.989 | 510 | 0.5% |
| 80% | 216 | 300.0 | 2.21 | 5.0 | 0.989 | 470 | 0.5% |
| 70% | 216 | 300.0 | 2.02 | 5.0 | 0.986 | 430 | 0.5% |
| 60% | 216 | 300.0 | 1.84 | 5.0 | 0.984 | 391 | 0.6% |
| 50% | 216 | 300.0 | 1.59 | 5.0 | 0.980 | 336 | 0.6% |
| 40% | 216 | 300.0 | 1.36 | 2.0 | 0.973 | 287 | 0.4% |
| 30% | 216 | 300.0 | 1.24 | 2.0 | 0.971 | 260 | 0.4% |
| 20% | 216 | 300.0 | 1.11 | 2.0 | 0.968 | 232 | 0.5% |
| 10% | 216 | 300.0 | 0.966 | 2.0 | 0.958 | 200 | 0.5% |
| Active Idle | 216 | 300.0 | 0.632 | 1.0 | 0.888 | 120 | 0.5% |
