SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2020 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR860V2 | SPECpower_ssj2008 = 11,300 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Nov 30, 2020 |
| Hardware Availability: | Nov-2020 | Software Availability: | Dec-2019 | Publication: | Dec 16, 2020 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

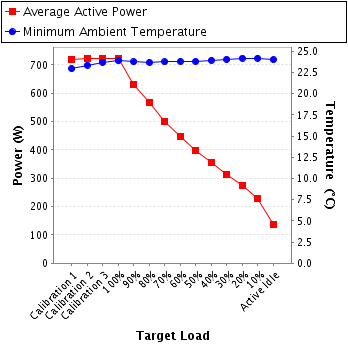

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 720 | 22.9 |
| Calibration 2 | 722 | 23.4 |
| Calibration 3 | 724 | 23.7 |
| 100% | 721 | 23.9 |
| 90% | 631 | 23.8 |
| 80% | 565 | 23.7 |
| 70% | 501 | 23.8 |
| 60% | 447 | 23.8 |
| 50% | 397 | 23.8 |
| 40% | 354 | 23.9 |
| 30% | 314 | 24.1 |
| 20% | 274 | 24.2 |
| 10% | 230 | 24.2 |
| Active Idle | 138 | 24.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3SH31009E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GUANG ZHOU GRG METROLOGY & TEST CO.,LTD. |
| Calibration Label: | J202009040176A-006 |
| Date of Calibration: | 25-Sep-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU 1,PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi Intermational, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |

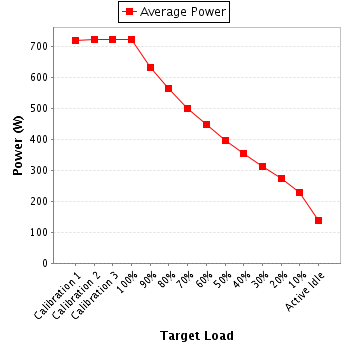

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 3.34 | 5.0 | 0.997 | 720 | 0.2% |
| Calibration 2 | 217 | 300.0 | 3.34 | 5.0 | 0.997 | 722 | 0.2% |
| Calibration 3 | 216 | 300.0 | 3.36 | 5.0 | 0.997 | 724 | 0.2% |
| 100% | 216 | 300.0 | 3.34 | 5.0 | 0.997 | 721 | 0.2% |
| 90% | 219 | 300.0 | 2.89 | 5.0 | 0.997 | 631 | 0.2% |
| 80% | 219 | 300.0 | 2.59 | 5.0 | 0.997 | 565 | 0.3% |
| 70% | 220 | 300.0 | 2.29 | 5.0 | 0.996 | 501 | 0.3% |
| 60% | 220 | 300.0 | 2.04 | 5.0 | 0.995 | 447 | 0.3% |
| 50% | 220 | 300.0 | 1.82 | 5.0 | 0.993 | 397 | 0.3% |
| 40% | 220 | 300.0 | 1.62 | 5.0 | 0.990 | 354 | 0.3% |
| 30% | 220 | 300.0 | 1.44 | 5.0 | 0.987 | 314 | 0.4% |
| 20% | 220 | 300.0 | 1.26 | 2.0 | 0.989 | 274 | 0.2% |
| 10% | 221 | 300.0 | 1.06 | 2.0 | 0.984 | 230 | 0.3% |
| Active Idle | 221 | 300.0 | 0.667 | 2.0 | 0.943 | 138 | 0.4% |
