Hewlett Packard Enterprise Superdome Flex 280 - 4 Socket ssj_ops@100% = 10,116,731
ssj_ops@100% per JVM = 1,264,591
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 19, 2020
Hardware Availability: Dec-2020 Software Availability: Jul-2020 Publication: Nov 4, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,191,918
Calibration 2     10,153,866
Calibration 3     10,159,347
ssj_ops@calibrated=10,156,607
100% 99.6% 10,156,607 10,116,731
90% 90.0% 9,140,946 9,138,520
80% 79.9% 8,125,285 8,116,351
70% 70.0% 7,109,625 7,111,616
60% 60.0% 6,093,964 6,097,225
50% 50.1% 5,078,303 5,091,341
40% 40.0% 4,062,643 4,060,708
30% 29.9% 3,046,982 3,038,798
20% 20.0% 2,031,321 2,032,178
10% 10.0% 1,015,661 1,016,617
Active Idle   0 0

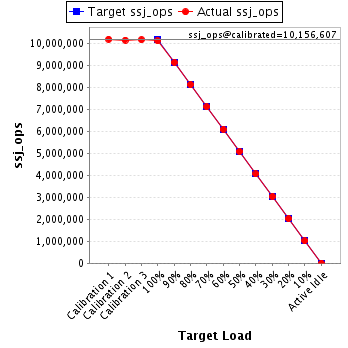

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Superdome Flex 280 - 4 Socket
Form Factor: 5U
CPU Name: Intel Xeon Platinum 8380HL 2.90 GHz
CPU Characteristics: 28-Core, 2.90 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 24 x 32768 MB
Memory Details: 32GB 2Rx4 PC4-3200AA-RB2; 1 DIMM per channel slots populated
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: HPE 1600W Platinum Power Supply (060-0415-002)
Disk Drive: 1 x HPE Superdome Flex 280 480GB SATA 6G Mixed Use SFF (2.5in) BC 3yr Wty Digitally Signed Firmware SSD (R6A34)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Embedded Ethernet 1Gb 2-port adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: numactl --cpunodebind=[0-7] --localalloc
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 1.0.140
Management Firmware Version: 1.0.140
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 1,277,524
localhost.002 1,269,718
localhost.003 1,270,898
localhost.004 1,254,375
localhost.005 1,263,750
localhost.006 1,261,628
localhost.007 1,269,442
localhost.008 1,249,396
ssj_ops@100% 10,116,731
ssj_ops@100% per JVM 1,264,591

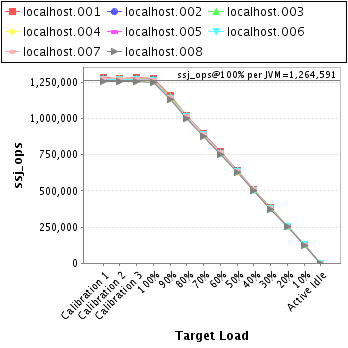

Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,285,959
Calibration 2     1,279,721
Calibration 3     1,282,117
ssj_ops@calibrated=1,280,919
100% 99.7% 1,280,919 1,277,524
90% 90.3% 1,152,827 1,156,122
80% 79.7% 1,024,735 1,021,422
70% 70.1% 896,643 897,862
60% 60.1% 768,551 770,240
50% 50.0% 640,459 640,744
40% 40.0% 512,368 512,287
30% 30.1% 384,276 386,006
20% 19.9% 256,184 254,399
10% 9.9% 128,092 127,381
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,279,294
Calibration 2     1,273,183
Calibration 3     1,274,997
ssj_ops@calibrated=1,274,090
100% 99.7% 1,274,090 1,269,718
90% 89.7% 1,146,681 1,143,455
80% 79.8% 1,019,272 1,016,208
70% 69.9% 891,863 890,434
60% 60.1% 764,454 765,884
50% 50.5% 637,045 643,640
40% 40.1% 509,636 510,592
30% 29.9% 382,227 380,534
20% 20.0% 254,818 255,237
10% 9.9% 127,409 126,710
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,278,870
Calibration 2     1,276,978
Calibration 3     1,276,002
ssj_ops@calibrated=1,276,490
100% 99.6% 1,276,490 1,270,898
90% 90.5% 1,148,841 1,154,621
80% 80.2% 1,021,192 1,024,127
70% 69.8% 893,543 891,355
60% 60.2% 765,894 767,963
50% 50.0% 638,245 637,644
40% 39.8% 510,596 508,452
30% 30.0% 382,947 382,428
20% 19.9% 255,298 253,786
10% 10.1% 127,649 129,123
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,266,611
Calibration 2     1,261,783
Calibration 3     1,262,059
ssj_ops@calibrated=1,261,921
100% 99.4% 1,261,921 1,254,375
90% 89.8% 1,135,729 1,133,123
80% 80.1% 1,009,537 1,010,915
70% 69.9% 883,345 882,439
60% 59.9% 757,153 756,437
50% 50.0% 630,960 630,635
40% 40.1% 504,768 506,410
30% 29.9% 378,576 377,881
20% 20.1% 252,384 254,106
10% 10.0% 126,192 126,527
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,273,135
Calibration 2     1,267,298
Calibration 3     1,268,427
ssj_ops@calibrated=1,267,863
100% 99.7% 1,267,863 1,263,750
90% 89.8% 1,141,077 1,138,733
80% 79.9% 1,014,290 1,012,657
70% 70.1% 887,504 889,398
60% 60.0% 760,718 760,425
50% 50.4% 633,931 639,428
40% 39.9% 507,145 506,340
30% 29.9% 380,359 378,556
20% 20.0% 253,573 253,264
10% 10.1% 126,786 127,605
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,272,732
Calibration 2     1,266,917
Calibration 3     1,268,388
ssj_ops@calibrated=1,267,653
100% 99.5% 1,267,653 1,261,628
90% 89.6% 1,140,887 1,135,421
80% 79.8% 1,014,122 1,011,504
70% 70.1% 887,357 888,702
60% 59.9% 760,592 759,294
50% 49.9% 633,826 632,514
40% 39.9% 507,061 506,150
30% 29.9% 380,296 378,549
20% 20.2% 253,531 256,204
10% 10.0% 126,765 126,257
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,277,511
Calibration 2     1,274,878
Calibration 3     1,274,242
ssj_ops@calibrated=1,274,560
100% 99.6% 1,274,560 1,269,442
90% 90.1% 1,147,104 1,148,055
80% 80.1% 1,019,648 1,020,627
70% 70.0% 892,192 892,687
60% 60.2% 764,736 767,361
50% 50.0% 637,280 637,845
40% 40.1% 509,824 510,782
30% 29.9% 382,368 381,001
20% 19.9% 254,912 253,982
10% 10.0% 127,456 127,135
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,257,806
Calibration 2     1,253,108
Calibration 3     1,253,114
ssj_ops@calibrated=1,253,111
100% 99.7% 1,253,111 1,249,396
90% 90.1% 1,127,800 1,128,991
80% 79.7% 1,002,489 998,891
70% 70.1% 877,178 878,741
60% 59.8% 751,867 749,620
50% 50.2% 626,556 628,892
40% 39.9% 501,244 499,696
30% 29.8% 375,933 373,842
20% 20.0% 250,622 251,201
10% 10.0% 125,311 125,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
