SPECpower_ssj2008

Inspur Corporation Inspur Yingxin NF8480M5			SPECpower_ssj2008 = 13,013 overall ssj_ops/watt
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Sep 18, 2020
Hardware Availability:	Aug-2020	Software Availability:	Dec-2019	Publication:	Oct 7, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur Yingxin NF8480M5
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8280 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16 GB 2Rx8 2933ER;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0,CPU2_C0D0,CPU2_C1D0, CPU2_C2D0, CPU2_C3D0, CPU2_C4D0, CPU2_C5D0, CPU3_C0D0,CPU3_C1D0, CPU3_C2D0, CPU3_C3D0, CPU3_C4D0, CPU3_C5D0 populated
Power Supply Quantity and Rating (W):	2 x 800
Power Supply Details:	DELTA DPS-800AB-47A PN:ZMPS1000150
Disk Drive:	Intel_SSDSCKKB240G_240G_M.2 PN:ZMHD1000582
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS
Operating System (OS):	Microsoft Windows Servers 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=14 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,5,7] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	4.1.14
Management Firmware Version:	1.19.29
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898

none

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-speculative-execution-side-channel-vulnerabilities (Last Updated: Dec 20, 2019)
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Software
Operating System (OS):	Windows 10
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11,mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310E
Serial Number:	C2QK23022V
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	LT1923338725Z-21
Date of Calibration:	12-Oct-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-a2d19f26-20190717
Setup Description:	Connected to PSU 0 and PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version

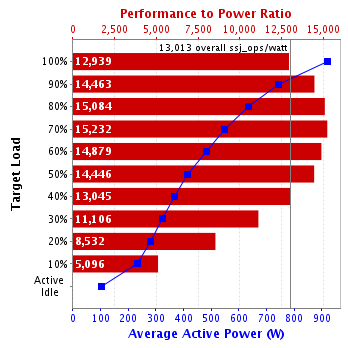

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	919	22.9
90%	744	22.9
80%	634	22.8
70%	549	22.6
60%	482	22.6
50%	414	22.5
40%	366	22.6
30%	323	22.0
20%	280	21.6
10%	234	21.3
Active Idle	102	21.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	21.1	57

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
