SPECpower_ssj2008

ASUSTeK Computer Inc. RS620SA-E10-RS12			SPECpower_ssj2008 = 24,238 overall ssj_ops/watt
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Multi Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	Sep 15, 2020
Hardware Availability:	Sep-2020	Software Availability:	Aug-2020	Publication:	Oct 7, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
6	6	384	768	768	6	192

Shared Hardware
Enclosure:	RS620SA-E10
Form Factor:	2U
Power Supply Quantity and Rating (W):	1 x 3000
Power Supply Details:	GOSPOWER G1236-3000WNA Rev:0.1 P/N: 0A100-00440000
Network Switch:	ASUSTek GigaX1116
Network Switch Details:	16-Port Giga LAN
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	16 Port Gigabit Ethernet Switch

Hardware per Node
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS620SA-E10-RS12
Form Factor:	1U
CPU Name:	AMD EPYC 7742 2.25Ghz
CPU Characteristics:	64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16 GB
Memory Details:	8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller:	Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled(See SUT Notes)
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1397)
Filesystem:	NTFS
JVM Vendor:	Oracle
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options:	-server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0]
JVM Instances:	32
JVM Initial Heap (MB):	1400
JVM Maximum Heap (MB):	1400
JVM Address Bits:	64
Boot Firmware Version:	0305
Management Firmware Version:	2.1.09
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	MS-KB4565349

None

reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Dec 20, 2019).
NA:The test sponsor attests, as of date of publication, the CVE-2017-5754(Meltdown) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5753(Spectre variant 1) is mitigated in the system as tested and documented.
Yes:The test sponsor attests, as of date of publication, the CVE-2017-5715(Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT210
Serial Number:	91J615902
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	National Measurement Laboratory of the R.O.C.
Accredited by:	Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label:	A2007141001
Date of Calibration:	17-Jul-2020
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-a2d19f26-20190717
Setup Description:	Connected to PSU1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50 mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

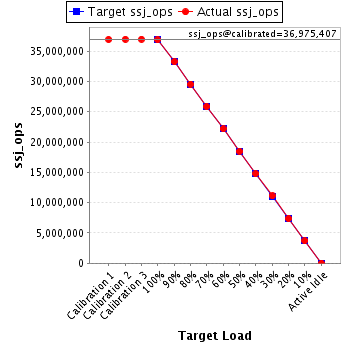

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	1,140	20.6
90%	1,071	20.6
80%	1,001	20.6
70%	929	21.2
60%	853	20.9
50%	785	20.8
40%	696	20.6
30%	627	20.4
20%	565	20.4
10%	492	20.9
Active Idle	228	21.0

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	20.4	132

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
