Lenovo Global Technology Think System SR655 SPECpower_ssj2008 = 21,603 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 9, 2020
Hardware Availability: Apr-2020 Software Availability: Sep-2019 Publication: Aug 6, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 223 23.6
Calibration 2 224 23.6
Calibration 3 224 23.6
100% 224 23.5
90% 203 23.2
80% 193 23.2
70% 182 23.2
60% 173 23.2
50% 163 23.1
40% 150 22.8
30% 128 22.6
20% 113 22.3
10% 99.6 22.2
Active Idle 63.8 22.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA19013841-0006
Date of Calibration: 27-Sep-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 1.06 2.0 0.963 223 0.3%
Calibration 2 219 300.0 1.06 2.0 0.963 224 0.3%
Calibration 3 219 300.0 1.06 2.0 0.963 224 0.3%
100% 219 300.0 1.06 2.0 0.963 224 0.3%
90% 219 300.0 0.961 2.0 0.962 203 0.3%
80% 219 300.0 0.917 2.0 0.958 193 0.3%
70% 219 300.0 0.867 2.0 0.956 182 0.3%
60% 219 300.0 0.830 2.0 0.952 173 0.3%
50% 219 300.0 0.784 1.0 0.948 163 0.3%
40% 219 300.0 0.730 1.0 0.936 150 0.3%
30% 220 300.0 0.632 1.0 0.924 128 0.3%
20% 220 300.0 0.564 1.0 0.910 113 0.3%
10% 220 300.0 0.505 1.0 0.900 99.6 0.3%
Active Idle 220 300.0 0.363 1.0 0.804 63.8 0.4%

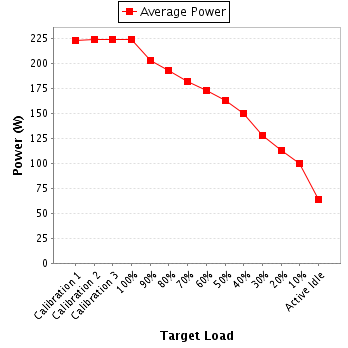

Power details for pwr1
