Inspur Corporation Inspur NF5280M5 SPECpower_ssj2008 = 14,365 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: May 19, 2020
Hardware Availability: Mar-2020 Software Availability: Dec-2019 Publication: Jun 3, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 410 22.2
Calibration 2 411 22.3
Calibration 3 411 22.4
100% 410 22.3
90% 332 22.3
80% 278 22.2
70% 247 22.2
60% 217 22.2
50% 184 22.4
40% 156 22.4
30% 142 22.5
20% 123 22.5
10% 108 22.6
Active Idle 48.6 22.6

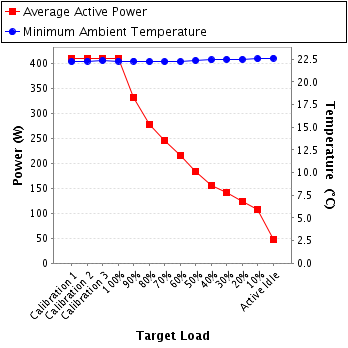

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23022V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: LT1923338725Z-21
Date of Calibration: 12-Oct-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 2.00 5.0 0.907 410 0.4%
Calibration 2 226 300.0 2.00 5.0 0.907 411 0.4%
Calibration 3 226 300.0 2.00 5.0 0.907 411 0.4%
100% 226 300.0 2.00 5.0 0.908 410 0.4%
90% 226 300.0 1.64 5.0 0.896 332 0.4%
80% 226 300.0 1.40 5.0 0.878 278 0.5%
70% 226 300.0 1.26 5.0 0.868 247 0.5%
60% 226 300.0 1.14 5.0 0.843 217 0.5%
50% 226 300.0 0.901 5.0 0.904 184 0.6%
40% 226 300.0 0.782 5.0 0.883 156 0.6%
30% 227 300.0 0.719 5.0 0.869 142 0.7%
20% 227 300.0 0.641 5.0 0.849 123 0.7%
10% 227 300.0 0.574 2.0 0.830 108 0.5%
Active Idle 227 300.0 0.314 2.0 0.682 48.6 0.7%
Power details for pwr1
