Lenovo Global Technology Think System SR665 SPECpower_ssj2008 = 23,428 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 12, 2020
Hardware Availability: Jun-2020 Software Availability: Sep-2019 Publication: Jun 10, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 389 23.4
Calibration 2 391 23.3
Calibration 3 392 23.2
100% 391 23.3
90% 349 23.3
80% 325 23.3
70% 306 23.2
60% 286 23.2
50% 267 23.3
40% 246 23.5
30% 226 23.6
20% 205 23.5
10% 180 23.4
Active Idle 82.8 23.4

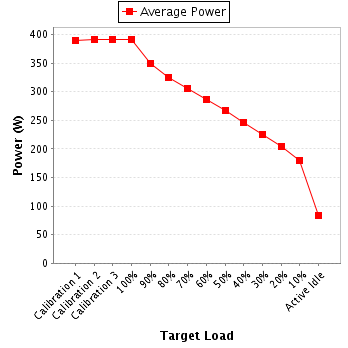

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA19013841-0007
Date of Calibration: 27-Sep-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 1.88 5.0 0.942 389 0.4%
Calibration 2 219 300.0 1.89 5.0 0.942 391 0.4%
Calibration 3 219 300.0 1.90 5.0 0.943 392 0.4%
100% 219 300.0 1.89 5.0 0.942 391 0.4%
90% 219 300.0 1.71 5.0 0.934 349 0.4%
80% 219 300.0 1.60 2.0 0.928 325 0.3%
70% 219 300.0 1.51 2.0 0.923 306 0.3%
60% 219 300.0 1.42 2.0 0.916 286 0.3%
50% 220 300.0 1.34 2.0 0.908 267 0.3%
40% 220 300.0 1.24 2.0 0.903 246 0.3%
30% 220 300.0 1.15 2.0 0.894 226 0.3%
20% 220 300.0 1.06 2.0 0.882 205 0.3%
10% 220 300.0 0.945 2.0 0.867 180 0.4%
Active Idle 220 300.0 0.534 1.0 0.708 82.8 0.4%
Power details for pwr1
