Hewlett Packard Enterprise Apollo XL225n Gen10 Plus SPECpower_ssj2008 = 16,000 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 14, 2019
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 884 23.7
Calibration 2 893 23.6
Calibration 3 895 23.6
100% 894 23.8
90% 851 23.7
80% 805 23.7
70% 762 23.4
60% 718 22.9
50% 676 22.8
40% 631 22.8
30% 583 22.9
20% 538 23.0
10% 487 23.1
Active Idle 403 23.0

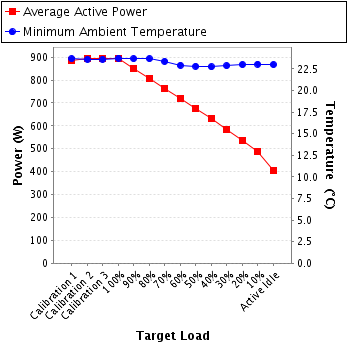

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14001V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-C4B4U-60-1
Date of Calibration: 01-Aug-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45371
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E553M-60-1
Date of Calibration: 21-Jun-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: SUT connected to Power Supply 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 2.23 5.0 0.959 458 0.3%
Calibration 2 214 300.0 2.25 5.0 0.960 463 0.3%
Calibration 3 214 300.0 2.26 5.0 0.960 463 0.3%
100% 214 300.0 2.25 5.0 0.960 463 0.3%
90% 214 300.0 2.16 5.0 0.956 441 0.3%
80% 214 300.0 2.04 5.0 0.952 417 0.3%
70% 214 300.0 1.96 5.0 0.947 397 0.4%
60% 214 300.0 1.86 5.0 0.942 375 0.4%
50% 214 300.0 1.77 5.0 0.936 354 0.4%
40% 214 300.0 1.68 5.0 0.927 332 0.4%
30% 214 300.0 1.57 5.0 0.919 309 0.4%
20% 214 300.0 1.48 5.0 0.908 287 0.4%
10% 214 300.0 1.38 2.0 0.875 259 0.3%
Active Idle 214 300.0 1.20 2.0 0.850 218 0.3%

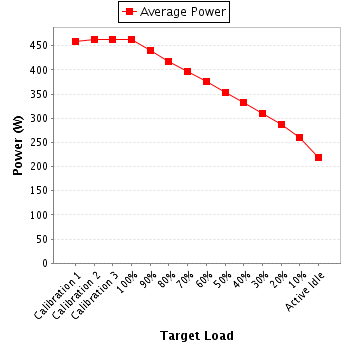

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 2.08 5.0 0.958 426 0.6%
Calibration 2 214 300.0 2.10 5.0 0.959 431 0.6%
Calibration 3 214 300.0 2.11 5.0 0.959 432 0.6%
100% 214 300.0 2.10 5.0 0.959 431 0.6%
90% 214 300.0 2.01 5.0 0.956 410 0.6%
80% 214 300.0 1.91 5.0 0.951 389 0.6%
70% 214 300.0 1.81 5.0 0.946 365 0.6%
60% 214 300.0 1.71 5.0 0.939 343 0.7%
50% 214 300.0 1.62 5.0 0.933 322 0.7%
40% 214 300.0 1.52 5.0 0.921 299 0.7%
30% 214 300.0 1.41 5.0 0.910 274 0.8%
20% 214 300.0 1.31 5.0 0.896 251 0.8%
10% 214 300.0 1.24 2.0 0.861 228 0.5%
Active Idle 214 300.0 1.05 2.0 0.824 185 0.6%

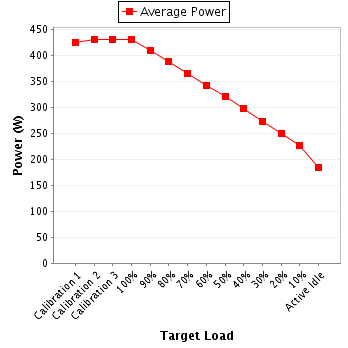

Power details for pwr2
