Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 31,966,408
ssj_ops@100% per Host = 10,655,469
ssj_ops@100% per JVM = 332,983
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 14, 2019
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     32,066,370
Calibration 2     32,101,746
Calibration 3     32,120,411
ssj_ops@calibrated=32,111,078
100% 99.5% 32,111,078 31,966,408
90% 90.0% 28,899,970 28,901,958
80% 80.0% 25,688,863 25,701,865
70% 70.0% 22,477,755 22,470,028
60% 60.0% 19,266,647 19,257,057
50% 50.0% 16,055,539 16,053,088
40% 40.0% 12,844,431 12,846,533
30% 30.0% 9,633,323 9,636,889
20% 20.0% 6,422,216 6,428,968
10% 10.0% 3,211,108 3,208,245
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
3 6 384 768 768 3 96
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Apollo 2000 Gen10 Plus
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 3000
Power Supply Details: HPE 3000W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP ProCurve 2910al Series Switch J9147A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7702 2.0 GHz
CPU Characteristics: 64-Core, 2.0GHz, 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP1
OS Version: 4.12.14-195-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.1+9, mixed mode, sharing); version 13.0.1
JVM Command-line Options: -server -Xmn2400m -Xms2800m -Xmx2800m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseHugeTLBFS
JVM Affinity: numactl --cpunodebind=[0-31] --localalloc
JVM Instances: 32
JVM Initial Heap (MB): 2800
JVM Maximum Heap (MB): 2800
JVM Address Bits: 64
Boot Firmware Version: A46 v1.20 (02/28/2020)
Management Firmware Version: 2.14 Feb 11 2020
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
node-02 10,640,079
node-03 10,655,425
node-04 10,670,904
ssj_ops@100% 31,966,408
ssj_ops@100% per Host 10,655,469
ssj_ops@100% per JVM 332,983
Graph of per-host results
Host 'node-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,679,243
Calibration 2     10,687,244
Calibration 3     10,690,965
ssj_ops@calibrated=10,689,105
100% 99.5% 10,689,105 10,640,079
90% 90.0% 9,620,194 9,624,233
80% 80.0% 8,551,284 8,551,798
70% 70.0% 7,482,373 7,482,847
60% 59.9% 6,413,463 6,405,557
50% 50.0% 5,344,552 5,341,982
40% 40.0% 4,275,642 4,271,786
30% 30.0% 3,206,731 3,207,388
20% 20.0% 2,137,821 2,137,343
10% 10.0% 1,068,910 1,067,223
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'node-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,691,858
Calibration 2     10,699,332
Calibration 3     10,706,211
ssj_ops@calibrated=10,702,772
100% 99.6% 10,702,772 10,655,425
90% 90.0% 9,632,494 9,637,745
80% 80.0% 8,562,217 8,557,472
70% 70.0% 7,491,940 7,487,383
60% 60.0% 6,421,663 6,418,818
50% 50.0% 5,351,386 5,349,572
40% 40.0% 4,281,109 4,285,560
30% 30.0% 3,210,831 3,207,328
20% 20.0% 2,140,554 2,144,602
10% 10.0% 1,070,277 1,070,139
Active Idle   0 0

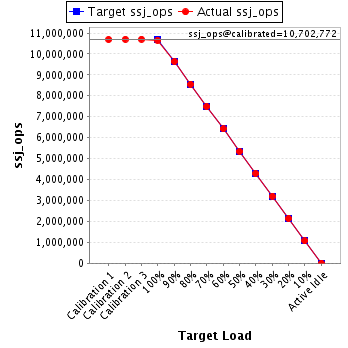

Graph of results
See the Host Performance Report for additional details.
Host 'node-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,695,269
Calibration 2     10,715,169
Calibration 3     10,723,234
ssj_ops@calibrated=10,719,202
100% 99.5% 10,719,202 10,670,904
90% 89.9% 9,647,282 9,639,981
80% 80.2% 8,575,361 8,592,594
70% 70.0% 7,503,441 7,499,798
60% 60.0% 6,431,521 6,432,682
50% 50.0% 5,359,601 5,361,534
40% 40.0% 4,287,681 4,289,187
30% 30.1% 3,215,761 3,222,173
20% 20.0% 2,143,840 2,147,024
10% 10.0% 1,071,920 1,070,884
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
