ASUSTeK Computer Inc. RS700A-E9-RS4V2 SPECpower_ssj2008 = 20,214 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan Test Date: Mar 2, 2020
Hardware Availability: Feb-2020 Software Availability: Dec-2018 Publication: Apr 8, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 425 21.5
Calibration 2 430 21.6
Calibration 3 430 21.8
100% 430 21.9
90% 400 21.9
80% 372 21.8
70% 344 21.7
60% 311 21.6
50% 294 21.6
40% 270 21.4
30% 244 21.4
20% 227 21.3
10% 197 21.3
Active Idle 106 21.1

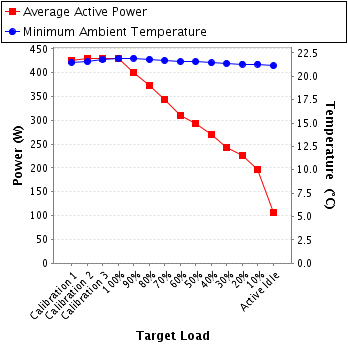

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T2907160701
Date of Calibration: 18-Jul-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.98 5.0 0.969 425 0.6%
Calibration 2 222 300.0 2.00 5.0 0.969 430 0.5%
Calibration 3 222 300.0 2.00 5.0 0.969 430 0.5%
100% 222 300.0 2.00 5.0 0.969 430 0.5%
90% 222 300.0 1.87 5.0 0.969 400 0.6%
80% 222 300.0 1.69 5.0 0.994 372 0.6%
70% 222 300.0 1.56 2.0 0.992 344 0.4%
60% 222 300.0 1.42 2.0 0.989 311 0.4%
50% 222 300.0 1.34 2.0 0.987 294 0.4%
40% 222 300.0 1.24 2.0 0.983 270 0.4%
30% 222 300.0 1.12 2.0 0.977 244 0.4%
20% 222 300.0 1.05 2.0 0.972 227 0.5%
10% 222 300.0 0.924 1.0 0.959 197 0.4%
Active Idle 223 300.0 0.530 1.0 0.911 106 0.5%

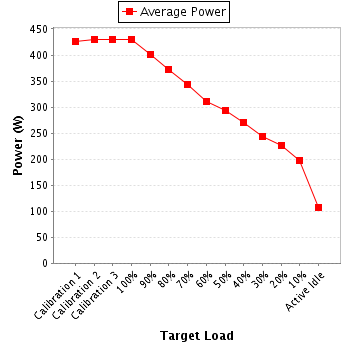

Power details for pwr1
