Nokia Corporation AE-SER1U-A ssj_ops@100% = 1,473,021
ssj_ops@100% per JVM = 73,651
Test Sponsor: Nokia Corporation SPEC License #: 6037 Test Method: Multi Node
Tested By: Nokia Corporation Test Location: HangZhou, Zhejiang, China Test Date: Dec 23, 2019
Hardware Availability: Dec-2019 Software Availability: Dec-2019 Publication: Feb 14, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,480,256
Calibration 2     1,477,442
Calibration 3     1,468,459
ssj_ops@calibrated=1,472,951
100% 100.0% 1,472,951 1,473,021
90% 89.8% 1,325,656 1,323,258
80% 79.9% 1,178,361 1,176,201
70% 69.9% 1,031,065 1,029,262
60% 59.9% 883,770 882,730
50% 49.9% 736,475 734,966
40% 40.1% 589,180 590,202
30% 30.1% 441,885 442,758
20% 20.0% 294,590 295,268
10% 10.0% 147,295 147,142
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 5
Comment: 'SUT'
Hardware
Hardware Vendor: Nokia Corporation
Model: AE-SER1U-A
Form Factor: 3U
CPU Name: Intel(R) Xeon(R) Gold 6210U CPU @ 2.50GHz
CPU Characteristics: 20 Core, 2.5GHz, 27.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 20 cores, 1 chip, 20 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 28160 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 4 x 16 GB
Memory Details: 4 x 16 GB 2Rx4 PC4-2933Y-RB2-12-DC1; slots 0,1,4 and 5 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x M.2 SSD 480G, Intel S4510 P/N: SSDSCKJB480G7
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Corporation I210 Gigabit Network Connection(onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): CentOS Linux release 8.0.1905 (Core)
OS Version: Kernel 4.18.0-80.el8.x86_64
Filesystem: EXT4
JVM Vendor: Oracle Corporation
JVM Version: OpenJDK 64-Bit Server VM (build 25.181-b13, mixed mode),1.8.0_181
JVM Command-line Options: -Djava.awt.headless=true -server -Xms1300m -Xmx1300m -Xmn1100m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: None
JVM Instances: 20
JVM Initial Heap (MB): 1300
JVM Maximum Heap (MB): 1300
JVM Address Bits: 64
Boot Firmware Version: 3B17(Oct-2019)
Management Firmware Version: 3.42.00(Nov-2019)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
GinGo.001 73,854
GinGo.002 74,458
GinGo.003 72,954
GinGo.004 73,028
GinGo.005 70,294
GinGo.006 73,231
GinGo.007 75,731
GinGo.008 71,785
GinGo.009 73,695
GinGo.010 74,787
GinGo.011 75,375
GinGo.012 74,582
GinGo.013 72,874
GinGo.014 72,974
GinGo.015 74,482
GinGo.016 72,563
GinGo.017 74,629
GinGo.018 72,823
GinGo.019 72,927
GinGo.020 75,974
ssj_ops@100% 1,473,021
ssj_ops@100% per JVM 73,651

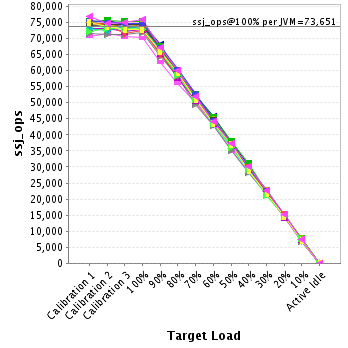

Graph of per-instance results

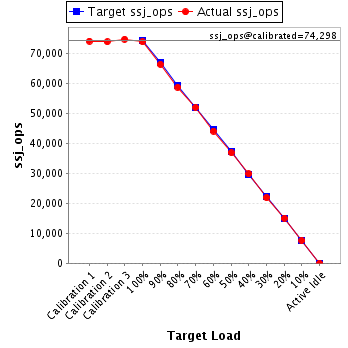

JVM 'GinGo.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,118
Calibration 2     73,851
Calibration 3     74,745
ssj_ops@calibrated=74,298
100% 99.4% 74,298 73,854
90% 89.3% 66,868 66,322
80% 79.0% 59,438 58,687
70% 70.0% 52,009 51,976
60% 59.4% 44,579 44,113
50% 49.6% 37,149 36,854
40% 40.1% 29,719 29,774
30% 29.4% 22,289 21,872
20% 20.3% 14,860 15,062
10% 10.2% 7,430 7,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,428
Calibration 2     73,798
Calibration 3     74,209
ssj_ops@calibrated=74,004
100% 100.6% 74,004 74,458
90% 89.5% 66,603 66,235
80% 78.4% 59,203 58,008
70% 69.8% 51,802 51,621
60% 60.5% 44,402 44,802
50% 49.5% 37,002 36,609
40% 39.7% 29,601 29,399
30% 30.2% 22,201 22,364
20% 19.9% 14,801 14,750
10% 10.1% 7,400 7,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,064
Calibration 2     72,838
Calibration 3     73,270
ssj_ops@calibrated=73,054
100% 99.9% 73,054 72,954
90% 89.7% 65,749 65,523
80% 81.1% 58,443 59,240
70% 69.9% 51,138 51,083
60% 60.5% 43,832 44,197
50% 50.1% 36,527 36,633
40% 40.2% 29,222 29,354
30% 29.6% 21,916 21,652
20% 20.0% 14,611 14,642
10% 10.0% 7,305 7,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

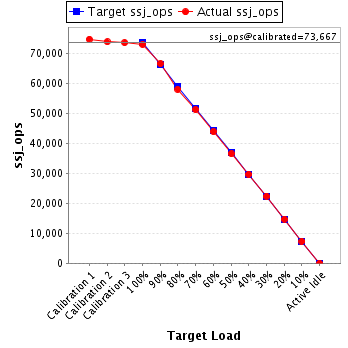

JVM 'GinGo.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,722
Calibration 2     73,820
Calibration 3     73,513
ssj_ops@calibrated=73,667
100% 99.1% 73,667 73,028
90% 90.4% 66,300 66,559
80% 78.7% 58,933 57,990
70% 69.5% 51,567 51,178
60% 59.5% 44,200 43,831
50% 49.6% 36,833 36,521
40% 40.3% 29,467 29,663
30% 30.4% 22,100 22,408
20% 20.0% 14,733 14,721
10% 9.9% 7,367 7,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

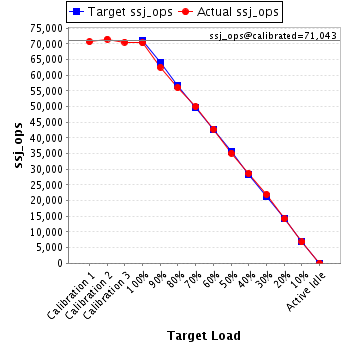

JVM 'GinGo.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,692
Calibration 2     71,515
Calibration 3     70,571
ssj_ops@calibrated=71,043
100% 98.9% 71,043 70,294
90% 88.1% 63,939 62,592
80% 78.9% 56,835 56,066
70% 70.4% 49,730 50,020
60% 60.2% 42,626 42,794
50% 49.4% 35,522 35,112
40% 40.3% 28,417 28,652
30% 30.9% 21,313 21,930
20% 19.9% 14,209 14,163
10% 9.6% 7,104 6,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

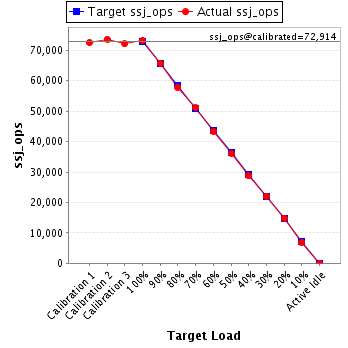

JVM 'GinGo.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,526
Calibration 2     73,680
Calibration 3     72,149
ssj_ops@calibrated=72,914
100% 100.4% 72,914 73,231
90% 90.2% 65,623 65,774
80% 79.3% 58,331 57,792
70% 70.1% 51,040 51,085
60% 59.5% 43,748 43,359
50% 49.6% 36,457 36,173
40% 39.4% 29,166 28,729
30% 30.3% 21,874 22,059
20% 20.3% 14,583 14,829
10% 9.5% 7,291 6,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

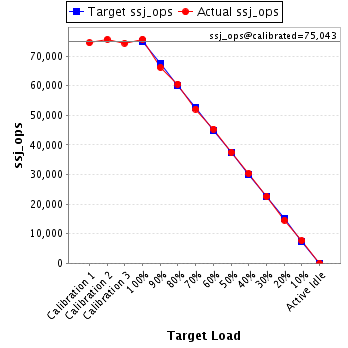

JVM 'GinGo.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,489
Calibration 2     75,676
Calibration 3     74,411
ssj_ops@calibrated=75,043
100% 100.9% 75,043 75,731
90% 88.3% 67,539 66,245
80% 80.7% 60,035 60,577
70% 69.4% 52,530 52,112
60% 60.4% 45,026 45,362
50% 50.0% 37,522 37,537
40% 40.4% 30,017 30,346
30% 30.1% 22,513 22,579
20% 19.4% 15,009 14,587
10% 10.3% 7,504 7,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,527
Calibration 2     71,358
Calibration 3     71,231
ssj_ops@calibrated=71,295
100% 100.7% 71,295 71,785
90% 90.3% 64,165 64,405
80% 81.4% 57,036 58,022
70% 69.6% 49,906 49,595
60% 60.1% 42,777 42,870
50% 49.2% 35,647 35,112
40% 39.7% 28,518 28,271
30% 30.2% 21,388 21,519
20% 20.5% 14,259 14,650
10% 9.7% 7,129 6,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,696
Calibration 2     74,648
Calibration 3     73,541
ssj_ops@calibrated=74,094
100% 99.5% 74,094 73,695
90% 90.3% 66,685 66,896
80% 79.2% 59,275 58,695
70% 69.7% 51,866 51,679
60% 59.7% 44,456 44,237
50% 50.3% 37,047 37,254
40% 39.8% 29,638 29,491
30% 30.4% 22,228 22,525
20% 19.8% 14,819 14,706
10% 10.5% 7,409 7,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,969
Calibration 2     75,550
Calibration 3     74,496
ssj_ops@calibrated=75,023
100% 99.7% 75,023 74,787
90% 90.7% 67,521 68,021
80% 78.8% 60,019 59,099
70% 69.8% 52,516 52,362
60% 60.9% 45,014 45,690
50% 50.2% 37,512 37,667
40% 40.5% 30,009 30,417
30% 29.6% 22,507 22,220
20% 19.9% 15,005 14,933
10% 9.8% 7,502 7,340
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,221
Calibration 2     75,595
Calibration 3     75,251
ssj_ops@calibrated=75,423
100% 99.9% 75,423 75,375
90% 89.7% 67,881 67,638
80% 79.7% 60,338 60,108
70% 69.5% 52,796 52,451
60% 60.2% 45,254 45,375
50% 50.2% 37,712 37,878
40% 41.0% 30,169 30,958
30% 29.8% 22,627 22,508
20% 19.7% 15,085 14,883
10% 10.1% 7,542 7,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

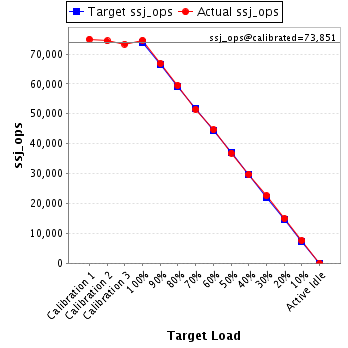

JVM 'GinGo.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,964
Calibration 2     74,368
Calibration 3     73,334
ssj_ops@calibrated=73,851
100% 101.0% 73,851 74,582
90% 90.5% 66,466 66,816
80% 80.6% 59,081 59,525
70% 69.7% 51,696 51,465
60% 60.5% 44,311 44,668
50% 49.9% 36,925 36,845
40% 40.3% 29,540 29,756
30% 30.6% 22,155 22,575
20% 20.3% 14,770 14,983
10% 10.4% 7,385 7,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,278
Calibration 2     73,098
Calibration 3     72,271
ssj_ops@calibrated=72,685
100% 100.3% 72,685 72,874
90% 90.0% 65,416 65,421
80% 79.5% 58,148 57,809
70% 69.7% 50,879 50,695
60% 59.9% 43,611 43,560
50% 50.4% 36,342 36,628
40% 40.0% 29,074 29,072
30% 29.8% 21,805 21,662
20% 19.6% 14,537 14,246
10% 10.2% 7,268 7,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,066
Calibration 2     72,632
Calibration 3     73,619
ssj_ops@calibrated=73,125
100% 99.8% 73,125 72,974
90% 91.0% 65,813 66,551
80% 79.8% 58,500 58,338
70% 70.2% 51,188 51,301
60% 59.2% 43,875 43,287
50% 50.1% 36,563 36,617
40% 39.8% 29,250 29,092
30% 29.4% 21,938 21,525
20% 20.1% 14,625 14,682
10% 9.6% 7,313 6,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,113
Calibration 2     74,335
Calibration 3     74,495
ssj_ops@calibrated=74,415
100% 100.1% 74,415 74,482
90% 89.9% 66,974 66,871
80% 79.9% 59,532 59,490
70% 70.6% 52,091 52,518
60% 60.4% 44,649 44,916
50% 49.6% 37,208 36,904
40% 40.2% 29,766 29,892
30% 30.2% 22,325 22,467
20% 20.2% 14,883 15,009
10% 10.2% 7,442 7,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,822
Calibration 2     74,262
Calibration 3     71,705
ssj_ops@calibrated=72,984
100% 99.4% 72,984 72,563
90% 89.1% 65,685 65,027
80% 79.9% 58,387 58,339
70% 69.8% 51,089 50,942
60% 60.1% 43,790 43,858
50% 50.8% 36,492 37,054
40% 40.8% 29,193 29,773
30% 30.5% 21,895 22,263
20% 20.3% 14,597 14,787
10% 9.8% 7,298 7,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,744
Calibration 2     75,017
Calibration 3     74,555
ssj_ops@calibrated=74,786
100% 99.8% 74,786 74,629
90% 90.1% 67,307 67,414
80% 81.0% 59,828 60,611
70% 70.7% 52,350 52,888
60% 59.7% 44,871 44,625
50% 49.8% 37,393 37,277
40% 39.3% 29,914 29,426
30% 30.6% 22,436 22,892
20% 20.1% 14,957 15,029
10% 10.0% 7,479 7,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,041
Calibration 2     72,996
Calibration 3     73,240
ssj_ops@calibrated=73,118
100% 99.6% 73,118 72,823
90% 90.1% 65,806 65,905
80% 80.1% 58,495 58,574
70% 69.9% 51,183 51,143
60% 59.6% 43,871 43,606
50% 49.2% 36,559 35,946
40% 39.8% 29,247 29,096
30% 29.0% 21,935 21,212
20% 20.1% 14,624 14,675
10% 10.4% 7,312 7,574
Active Idle   0 0

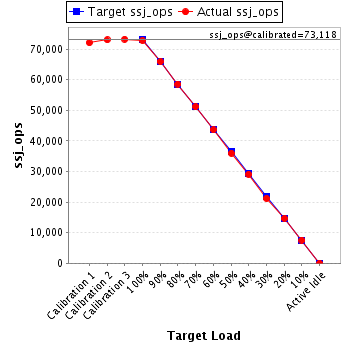

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,864
Calibration 2     73,635
Calibration 3     72,776
ssj_ops@calibrated=73,205
100% 99.6% 73,205 72,927
90% 90.0% 65,885 65,874
80% 81.0% 58,564 59,292
70% 69.8% 51,244 51,096
60% 59.5% 43,923 43,530
50% 50.5% 36,603 36,967
40% 39.7% 29,282 29,050
30% 29.9% 21,962 21,867
20% 20.1% 14,641 14,692
10% 9.8% 7,321 7,190
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GinGo.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,913
Calibration 2     74,771
Calibration 3     75,079
ssj_ops@calibrated=74,925
100% 101.4% 74,925 75,974
90% 89.6% 67,432 67,168
80% 80.0% 59,940 59,938
70% 69.5% 52,447 52,052
60% 58.8% 44,955 44,050
50% 49.9% 37,462 37,378
40% 40.0% 29,970 29,992
30% 30.2% 22,477 22,660
20% 20.3% 14,985 15,237
10% 9.9% 7,492 7,454
Active Idle   0 0

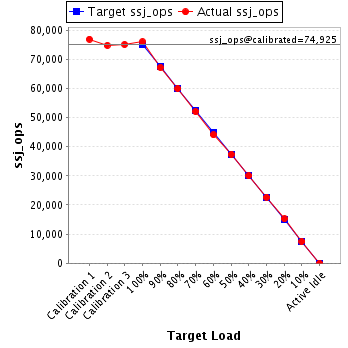

Graph of results
See the JVM Instance Performance Report for additional details.
