Nokia Corporation AE-SER1U-A SPECpower_ssj2008 = 6,183 overall ssj_ops/watt
Test Sponsor: Nokia Corporation SPEC License #: 6037 Test Method: Multi Node
Tested By: Nokia Corporation Test Location: HangZhou, Zhejiang, China Test Date: Dec 23, 2019
Hardware Availability: Dec-2019 Software Availability: Dec-2019 Publication: Feb 14, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 883 23.3
Calibration 2 889 23.3
Calibration 3 888 23.4
100% 877 23.2
90% 804 23.1
80% 752 23.2
70% 703 23.4
60% 655 23.6
50% 608 23.5
40% 560 23.5
30% 512 23.5
20% 463 23.3
10% 411 23.1
Active Idle 247 23.2

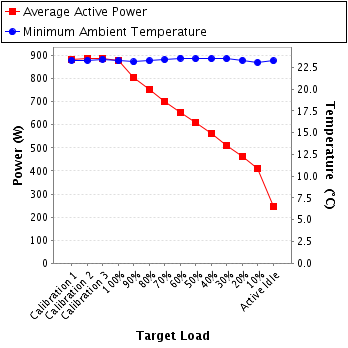

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters & Instruments Corporation
Model: Yokogawa WT310E
Serial Number: C3TJ0016E
Connectivity: USB
Input Connection: Default
Metrology Institute: Communication Technology Lab of The First Research Institute of Telecommunications Technology Co. Ltd
Accredited by: Shanghai Telecommunication Metrology Station Co. Ltd
Calibration Label: 01-19-T4479
Date of Calibration: 5-Sep-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-3caa3cc4-20190717
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: RDing Technology Limited Company
Model: USB9097+DS18B20
Driver Version: Virtual Serial Port drivers
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 3.94 10.0 0.995 883 0.3%
Calibration 2 225 300.0 3.97 10.0 0.995 889 0.3%
Calibration 3 225 300.0 3.97 10.0 0.994 888 0.3%
100% 224 300.0 3.93 10.0 0.995 877 0.3%
90% 224 300.0 3.61 10.0 0.993 804 0.3%
80% 225 300.0 3.38 10.0 0.991 752 0.3%
70% 225 300.0 3.16 5.0 0.988 703 0.2%
60% 224 300.0 2.97 5.0 0.986 655 0.3%
50% 224 300.0 2.77 5.0 0.982 608 0.3%
40% 224 300.0 2.56 5.0 0.976 560 0.3%
30% 224 300.0 2.36 5.0 0.969 512 0.3%
20% 224 300.0 2.14 5.0 0.963 463 0.3%
10% 224 300.0 1.93 5.0 0.950 411 0.3%
Active Idle 224 300.0 1.23 5.0 0.899 247 0.5%

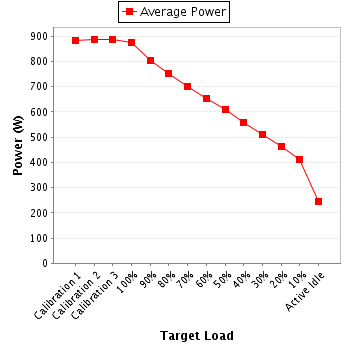

Power details for pwr1
