ASUSTeK Computer Inc. RS500A-E10-PS4 SPECpower_ssj2008 = 20,908 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan Test Date: Nov 21, 2019
Hardware Availability: Oct-2019 Software Availability: Aug-2019 Publication: Jan 21, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 210 21.4
Calibration 2 214 21.4
Calibration 3 214 21.4
100% 214 21.4
90% 201 21.4
80% 189 21.4
70% 175 21.4
60% 161 21.4
50% 149 21.4
40% 131 21.4
30% 120 21.4
20% 109 21.4
10% 100 21.3
Active Idle 51.4 21.3
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T2907160701
Date of Calibration: 18-Jul-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 0.948 2.0 0.979 210 0.5%
Calibration 2 226 300.0 0.968 2.0 0.980 214 0.5%
Calibration 3 226 300.0 0.966 2.0 0.979 214 0.5%
100% 226 300.0 0.965 2.0 0.979 214 0.5%
90% 226 300.0 0.912 1.0 0.977 201 0.3%
80% 226 300.0 0.856 1.0 0.975 189 0.4%
70% 227 300.0 0.793 1.0 0.972 175 0.4%
60% 227 300.0 0.734 1.0 0.968 161 0.4%
50% 227 300.0 0.681 1.0 0.965 149 0.4%
40% 227 300.0 0.603 1.0 0.957 131 0.4%
30% 227 300.0 0.553 1.0 0.951 120 0.5%
20% 227 300.0 0.507 1.0 0.944 109 0.5%
10% 227 300.0 0.471 1.0 0.937 100 0.5%
Active Idle 228 300.0 0.271 0.5 0.832 51.4 0.6%

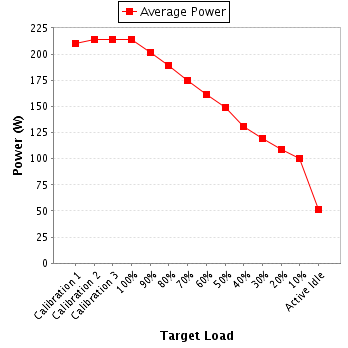

Power details for pwr1
