Fujitsu FUJITSU Server PRIMERGY LX1430 M1 ssj_ops@100% = 5,816,214
ssj_ops@100% per JVM = 90,878
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 3, 2019
Hardware Availability: Dec-2019 Software Availability: Oct-2019 Publication: Dec 18, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,774,628
Calibration 2     5,780,209
Calibration 3     5,798,732
ssj_ops@calibrated=5,789,471
100% 100.5% 5,789,471 5,816,214
90% 90.0% 5,210,524 5,210,822
80% 79.9% 4,631,576 4,627,735
70% 70.1% 4,052,629 4,055,772
60% 60.0% 3,473,682 3,475,898
50% 50.0% 2,894,735 2,896,665
40% 39.9% 2,315,788 2,310,597
30% 30.0% 1,736,841 1,737,263
20% 20.0% 1,157,894 1,155,212
10% 10.0% 578,947 576,481
Active Idle   0 0

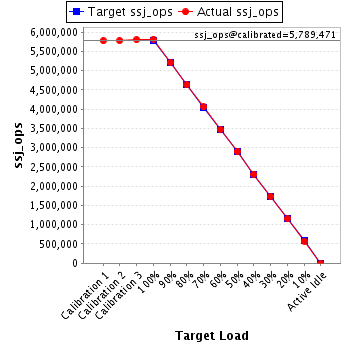

Graph of results
System Under Test
Set: 'LX1430M1'
Set Identifier: LX1430M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY LX1430 M1
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32 GB
Memory Details: 8 x 32GB 2Rx4 PC4-3200AA-RE2-12; slots A1, B1, C1, D1, E1, F1, G1, H1 populated
Power Supply Quantity and Rating (W): 1 x 650
Power Supply Details: PYBPU651
Disk Drive: 1 x SATA SSD 240GB, PYBSS24NKL
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel i350-AM2 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP1
OS Version: 4.12.14-195-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1400m -Xms1600m -Xmx1600m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: R07
Management Firmware Version: 2.94.4
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-2vzw.001 90,861
linux-2vzw.002 85,160
linux-2vzw.003 91,972
linux-2vzw.004 91,675
linux-2vzw.005 93,124
linux-2vzw.006 90,245
linux-2vzw.007 88,337
linux-2vzw.008 88,475
linux-2vzw.009 93,000
linux-2vzw.010 90,655
linux-2vzw.011 91,251
linux-2vzw.012 90,940
linux-2vzw.013 92,285
linux-2vzw.014 92,496
linux-2vzw.015 90,894
linux-2vzw.016 91,731
linux-2vzw.017 88,267
linux-2vzw.018 93,082

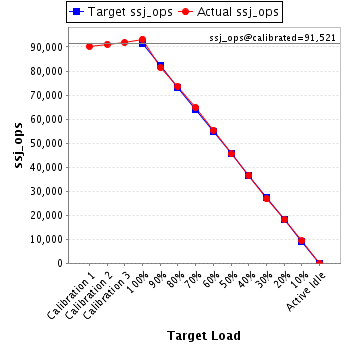

linux-2vzw.019 93,257
linux-2vzw.020 91,005
linux-2vzw.021 93,766
linux-2vzw.022 89,797
linux-2vzw.023 90,930
linux-2vzw.024 91,032
linux-2vzw.025 90,046
linux-2vzw.026 92,804
linux-2vzw.027 92,031
linux-2vzw.028 92,824
linux-2vzw.029 86,336
linux-2vzw.030 91,852
linux-2vzw.031 92,031
linux-2vzw.032 94,594

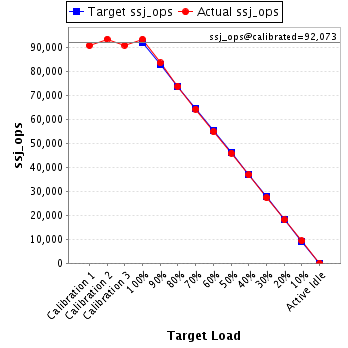

linux-2vzw.033 93,281

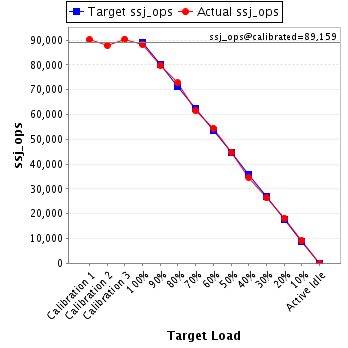

linux-2vzw.034 88,309
linux-2vzw.035 92,025
linux-2vzw.036 87,961
linux-2vzw.037 86,009
linux-2vzw.038 91,579
linux-2vzw.039 89,791
linux-2vzw.040 88,358
linux-2vzw.041 87,937
linux-2vzw.042 92,761
linux-2vzw.043 92,973
linux-2vzw.044 91,632
linux-2vzw.045 90,888
linux-2vzw.046 90,193
linux-2vzw.047 88,936
linux-2vzw.048 91,362
linux-2vzw.049 90,582
linux-2vzw.050 90,936
linux-2vzw.051 87,877
linux-2vzw.052 89,198
linux-2vzw.053 90,261
linux-2vzw.054 90,025
linux-2vzw.055 90,940
linux-2vzw.056 90,518
linux-2vzw.057 90,529
linux-2vzw.058 91,724
linux-2vzw.059 91,843
linux-2vzw.060 92,427
linux-2vzw.061 93,146

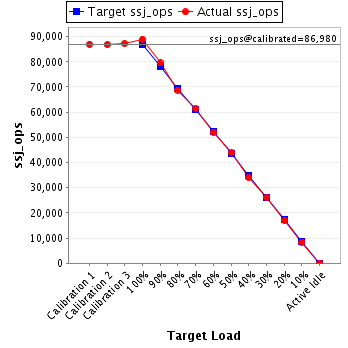

linux-2vzw.062 88,995
linux-2vzw.063 93,923
linux-2vzw.064 92,542
ssj_ops@100% 5,816,214
ssj_ops@100% per JVM 90,878

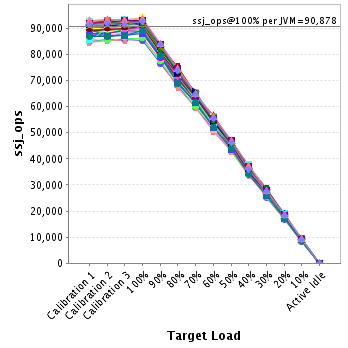

Graph of per-instance results
JVM 'linux-2vzw.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,989
Calibration 2     89,500
Calibration 3     89,614
ssj_ops@calibrated=89,557
100% 101.5% 89,557 90,861
90% 89.8% 80,601 80,391
80% 80.2% 71,646 71,824
70% 69.9% 62,690 62,579
60% 59.2% 53,734 53,000
50% 49.4% 44,779 44,227
40% 39.3% 35,823 35,228
30% 30.1% 26,867 26,942
20% 20.0% 17,911 17,879
10% 9.8% 8,956 8,820
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,019
Calibration 2     85,555
Calibration 3     85,549
ssj_ops@calibrated=85,552
100% 99.5% 85,552 85,160
90% 89.3% 76,997 76,398
80% 79.7% 68,442 68,198
70% 69.6% 59,886 59,527
60% 60.0% 51,331 51,367
50% 50.0% 42,776 42,804
40% 41.0% 34,221 35,101
30% 29.6% 25,666 25,319
20% 19.7% 17,110 16,833
10% 9.9% 8,555 8,481
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,999
Calibration 2     92,352
Calibration 3     92,403
ssj_ops@calibrated=92,377
100% 99.6% 92,377 91,972
90% 90.0% 83,140 83,102
80% 79.4% 73,902 73,316
70% 69.8% 64,664 64,472
60% 59.4% 55,426 54,837
50% 49.8% 46,189 45,986
40% 40.2% 36,951 37,130
30% 30.1% 27,713 27,821
20% 19.7% 18,475 18,221
10% 9.6% 9,238 8,904
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,088
Calibration 2     91,568
Calibration 3     91,199
ssj_ops@calibrated=91,383
100% 100.3% 91,383 91,675
90% 90.0% 82,245 82,204
80% 80.8% 73,107 73,847
70% 70.1% 63,968 64,033
60% 59.8% 54,830 54,637
50% 49.2% 45,692 45,000
40% 39.8% 36,553 36,383
30% 29.7% 27,415 27,178
20% 20.3% 18,277 18,535
10% 10.1% 9,138 9,233
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,633
Calibration 2     91,883
Calibration 3     91,674
ssj_ops@calibrated=91,778
100% 101.5% 91,778 93,124
90% 90.6% 82,600 83,186
80% 79.8% 73,422 73,257
70% 70.3% 64,245 64,485
60% 60.4% 55,067 55,412
50% 50.0% 45,889 45,862
40% 40.3% 36,711 37,025
30% 30.1% 27,533 27,613
20% 20.1% 18,356 18,455
10% 9.8% 9,178 8,962
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,866
Calibration 2     90,105
Calibration 3     90,387
ssj_ops@calibrated=90,246
100% 100.0% 90,246 90,245
90% 90.7% 81,221 81,875
80% 80.3% 72,197 72,431
70% 70.0% 63,172 63,181
60% 60.3% 54,147 54,431
50% 50.0% 45,123 45,167
40% 39.4% 36,098 35,558
30% 29.5% 27,074 26,645
20% 19.6% 18,049 17,654
10% 10.0% 9,025 8,992
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,617
Calibration 2     87,190
Calibration 3     87,827
ssj_ops@calibrated=87,508
100% 100.9% 87,508 88,337
90% 90.3% 78,758 79,044
80% 78.9% 70,007 69,043
70% 70.4% 61,256 61,631
60% 60.0% 52,505 52,491
50% 50.1% 43,754 43,880
40% 39.9% 35,003 34,948
30% 30.0% 26,253 26,250
20% 19.8% 17,502 17,336
10% 9.8% 8,751 8,604
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,939
Calibration 2     88,594
Calibration 3     88,797
ssj_ops@calibrated=88,696
100% 99.8% 88,696 88,475
90% 89.1% 79,826 79,008
80% 80.4% 70,957 71,287
70% 70.3% 62,087 62,342
60% 59.4% 53,217 52,717
50% 50.4% 44,348 44,660
40% 40.3% 35,478 35,730
30% 30.0% 26,609 26,645
20% 20.2% 17,739 17,925
10% 9.8% 8,870 8,708
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,612
Calibration 2     93,089
Calibration 3     93,499
ssj_ops@calibrated=93,294
100% 99.7% 93,294 93,000
90% 89.0% 83,965 83,019
80% 80.8% 74,635 75,403
70% 69.7% 65,306 65,064
60% 59.7% 55,976 55,684
50% 50.2% 46,647 46,827
40% 40.0% 37,318 37,355
30% 30.6% 27,988 28,575
20% 20.2% 18,659 18,825
10% 10.0% 9,329 9,319
Active Idle   0 0
Graph of results

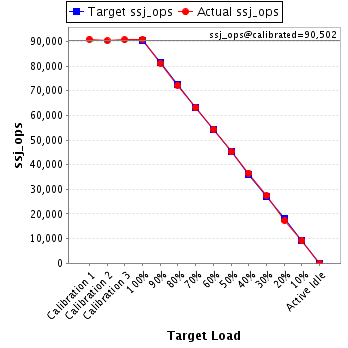

JVM 'linux-2vzw.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,940
Calibration 2     90,294
Calibration 3     90,709
ssj_ops@calibrated=90,502
100% 100.2% 90,502 90,655
90% 89.7% 81,452 81,223
80% 79.9% 72,401 72,280
70% 69.8% 63,351 63,134
60% 60.1% 54,301 54,417
50% 49.9% 45,251 45,194
40% 40.4% 36,201 36,577
30% 30.3% 27,151 27,387
20% 19.2% 18,100 17,337
10% 10.1% 9,050 9,137
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,380
Calibration 2     90,818
Calibration 3     90,992
ssj_ops@calibrated=90,905
100% 100.4% 90,905 91,251
90% 88.8% 81,814 80,691
80% 79.4% 72,724 72,184
70% 70.8% 63,633 64,329
60% 60.9% 54,543 55,324
50% 50.7% 45,452 46,066
40% 39.9% 36,362 36,266
30% 30.5% 27,271 27,682
20% 20.2% 18,181 18,321
10% 9.7% 9,090 8,783
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,052
Calibration 2     90,272
Calibration 3     90,514
ssj_ops@calibrated=90,393
100% 100.6% 90,393 90,940
90% 89.2% 81,353 80,586
80% 79.5% 72,314 71,831
70% 69.7% 63,275 62,972
60% 59.6% 54,236 53,833
50% 50.2% 45,196 45,340
40% 40.0% 36,157 36,152
30% 30.1% 27,118 27,183
20% 19.9% 18,079 17,992
10% 9.7% 9,039 8,767
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,639
Calibration 2     91,801
Calibration 3     92,364
ssj_ops@calibrated=92,082
100% 100.2% 92,082 92,285
90% 88.9% 82,874 81,876
80% 80.3% 73,666 73,945
70% 69.7% 64,458 64,217
60% 60.0% 55,249 55,268
50% 50.1% 46,041 46,122
40% 40.5% 36,833 37,285
30% 29.8% 27,625 27,402
20% 19.7% 18,416 18,179
10% 9.9% 9,208 9,100
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,975
Calibration 2     91,889
Calibration 3     92,381
ssj_ops@calibrated=92,135
100% 100.4% 92,135 92,496
90% 89.4% 82,921 82,384
80% 79.1% 73,708 72,920
70% 69.8% 64,494 64,341
60% 59.8% 55,281 55,073
50% 50.6% 46,067 46,614
40% 39.7% 36,854 36,533
30% 29.9% 27,640 27,575
20% 19.9% 18,427 18,346
10% 10.2% 9,213 9,425
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,252
Calibration 2     90,272
Calibration 3     90,806
ssj_ops@calibrated=90,539
100% 100.4% 90,539 90,894
90% 89.9% 81,485 81,376
80% 79.4% 72,431 71,912
70% 69.9% 63,377 63,313
60% 60.0% 54,323 54,317
50% 50.2% 45,270 45,471
40% 39.3% 36,216 35,613
30% 30.4% 27,162 27,564
20% 20.3% 18,108 18,365
10% 10.1% 9,054 9,125
Active Idle   0 0
Graph of results

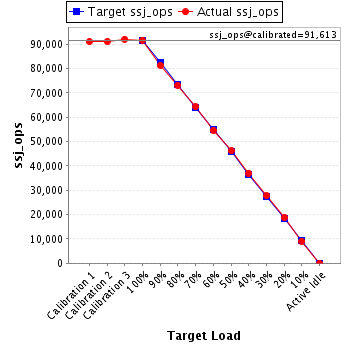

JVM 'linux-2vzw.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,031
Calibration 2     91,135
Calibration 3     92,091
ssj_ops@calibrated=91,613
100% 100.1% 91,613 91,731
90% 88.8% 82,452 81,377
80% 79.8% 73,290 73,110
70% 70.2% 64,129 64,314
60% 59.7% 54,968 54,693
50% 50.4% 45,806 46,172
40% 40.4% 36,645 37,041
30% 30.4% 27,484 27,806
20% 20.5% 18,323 18,779
10% 9.9% 9,161 9,075
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,229
Calibration 2     87,236
Calibration 3     87,337
ssj_ops@calibrated=87,286
100% 101.1% 87,286 88,267
90% 91.3% 78,558 79,724
80% 80.2% 69,829 70,035
70% 69.8% 61,100 60,885
60% 60.1% 52,372 52,447
50% 49.9% 43,643 43,538
40% 40.5% 34,914 35,338
30% 30.1% 26,186 26,236
20% 20.5% 17,457 17,867
10% 10.1% 8,729 8,775
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,559
Calibration 2     92,130
Calibration 3     92,524
ssj_ops@calibrated=92,327
100% 100.8% 92,327 93,082
90% 89.2% 83,095 82,358
80% 80.8% 73,862 74,583
70% 68.9% 64,629 63,654
60% 59.8% 55,396 55,231
50% 49.8% 46,164 45,984
40% 39.8% 36,931 36,766
30% 29.9% 27,698 27,566
20% 20.5% 18,465 18,895
10% 10.4% 9,233 9,571
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,285
Calibration 2     91,147
Calibration 3     91,895
ssj_ops@calibrated=91,521
100% 101.9% 91,521 93,257
90% 89.1% 82,369 81,527
80% 80.5% 73,217 73,637
70% 70.9% 64,065 64,880
60% 60.5% 54,912 55,409
50% 49.7% 45,760 45,473
40% 40.1% 36,608 36,665
30% 29.3% 27,456 26,779
20% 19.9% 18,304 18,225
10% 10.2% 9,152 9,337
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,348
Calibration 2     91,735
Calibration 3     92,163
ssj_ops@calibrated=91,949
100% 99.0% 91,949 91,005
90% 89.8% 82,754 82,596
80% 79.9% 73,559 73,494
70% 69.9% 64,364 64,317
60% 60.2% 55,169 55,396
50% 50.6% 45,974 46,504
40% 39.8% 36,780 36,591
30% 29.9% 27,585 27,525
20% 20.3% 18,390 18,633
10% 9.9% 9,195 9,125
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,558
Calibration 2     93,132
Calibration 3     93,213
ssj_ops@calibrated=93,172
100% 100.6% 93,172 93,766
90% 89.3% 83,855 83,217
80% 79.4% 74,538 73,984
70% 70.3% 65,221 65,534
60% 60.5% 55,903 56,387
50% 50.1% 46,586 46,638
40% 40.7% 37,269 37,938
30% 30.1% 27,952 28,083
20% 20.4% 18,634 19,044
10% 10.2% 9,317 9,462
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,371
Calibration 2     89,219
Calibration 3     89,605
ssj_ops@calibrated=89,412
100% 100.4% 89,412 89,797
90% 89.7% 80,471 80,227
80% 79.5% 71,529 71,121
70% 70.2% 62,588 62,738
60% 59.7% 53,647 53,389
50% 49.8% 44,706 44,530
40% 40.2% 35,765 35,933
30% 29.8% 26,824 26,610
20% 19.7% 17,882 17,617
10% 9.9% 8,941 8,841
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,709
Calibration 2     90,259
Calibration 3     90,446
ssj_ops@calibrated=90,353
100% 100.6% 90,353 90,930
90% 89.1% 81,317 80,525
80% 79.6% 72,282 71,921
70% 70.1% 63,247 63,376
60% 61.0% 54,212 55,126
50% 50.5% 45,176 45,656
40% 40.1% 36,141 36,196
30% 30.4% 27,106 27,427
20% 19.8% 18,071 17,900
10% 10.1% 9,035 9,146
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,856
Calibration 2     91,004
Calibration 3     90,712
ssj_ops@calibrated=90,858
100% 100.2% 90,858 91,032
90% 90.5% 81,772 82,268
80% 79.5% 72,686 72,250
70% 69.8% 63,601 63,384
60% 59.3% 54,515 53,904
50% 50.3% 45,429 45,734
40% 39.4% 36,343 35,792
30% 29.7% 27,257 27,028
20% 20.8% 18,172 18,910
10% 9.8% 9,086 8,868
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,870
Calibration 2     90,227
Calibration 3     90,157
ssj_ops@calibrated=90,192
100% 99.8% 90,192 90,046
90% 92.3% 81,173 83,222
80% 80.1% 72,153 72,246
70% 69.8% 63,134 62,915
60% 59.5% 54,115 53,681
50% 49.1% 45,096 44,322
40% 39.8% 36,077 35,859
30% 30.0% 27,058 27,016
20% 20.0% 18,038 18,012
10% 9.9% 9,019 8,900
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,962
Calibration 2     91,647
Calibration 3     91,588
ssj_ops@calibrated=91,617
100% 101.3% 91,617 92,804
90% 91.5% 82,456 83,841
80% 79.2% 73,294 72,528
70% 70.6% 64,132 64,671
60% 59.6% 54,970 54,614
50% 49.5% 45,809 45,310
40% 40.3% 36,647 36,938
30% 29.8% 27,485 27,279
20% 20.2% 18,323 18,486
10% 9.9% 9,162 9,083
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,538
Calibration 2     91,317
Calibration 3     90,839
ssj_ops@calibrated=91,078
100% 101.0% 91,078 92,031
90% 90.3% 81,970 82,199
80% 80.1% 72,862 72,947
70% 69.8% 63,755 63,603
60% 59.6% 54,647 54,283
50% 49.9% 45,539 45,443
40% 39.9% 36,431 36,367
30% 29.8% 27,323 27,142
20% 19.8% 18,216 17,998
10% 9.9% 9,108 9,025
Active Idle   0 0
Graph of results

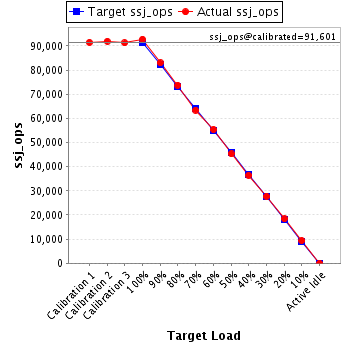

JVM 'linux-2vzw.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,507
Calibration 2     91,952
Calibration 3     91,250
ssj_ops@calibrated=91,601
100% 101.3% 91,601 92,824
90% 90.6% 82,441 83,000
80% 80.5% 73,281 73,770
70% 69.2% 64,121 63,420
60% 60.5% 54,960 55,418
50% 49.5% 45,800 45,302
40% 39.8% 36,640 36,448
30% 30.3% 27,480 27,792
20% 20.1% 18,320 18,387
10% 10.3% 9,160 9,412
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,678
Calibration 2     85,267
Calibration 3     85,252
ssj_ops@calibrated=85,260
100% 101.3% 85,260 86,336
90% 91.0% 76,734 77,605
80% 78.9% 68,208 67,309
70% 70.0% 59,682 59,724
60% 59.4% 51,156 50,610
50% 50.0% 42,630 42,668
40% 39.6% 34,104 33,749
30% 30.1% 25,578 25,628
20% 20.0% 17,052 17,012
10% 9.8% 8,526 8,375
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,668
Calibration 2     91,412
Calibration 3     91,864
ssj_ops@calibrated=91,638
100% 100.2% 91,638 91,852
90% 89.1% 82,474 81,661
80% 80.7% 73,310 73,984
70% 70.7% 64,147 64,790
60% 60.3% 54,983 55,297
50% 49.9% 45,819 45,766
40% 40.0% 36,655 36,633
30% 29.9% 27,491 27,355
20% 20.2% 18,328 18,554
10% 10.1% 9,164 9,297
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,971
Calibration 2     91,606
Calibration 3     91,943
ssj_ops@calibrated=91,775
100% 100.3% 91,775 92,031
90% 89.7% 82,597 82,361
80% 80.8% 73,420 74,117
70% 69.9% 64,242 64,112
60% 60.4% 55,065 55,440
50% 50.8% 45,887 46,619
40% 39.2% 36,710 35,996
30% 30.6% 27,532 28,078
20% 19.9% 18,355 18,283
10% 10.0% 9,177 9,171
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,302
Calibration 2     92,498
Calibration 3     92,613
ssj_ops@calibrated=92,555
100% 102.2% 92,555 94,594
90% 89.4% 83,300 82,773
80% 78.9% 74,044 73,060
70% 70.2% 64,789 64,968
60% 59.2% 55,533 54,805
50% 50.1% 46,278 46,372
40% 39.9% 37,022 36,909
30% 30.0% 27,767 27,765
20% 20.0% 18,511 18,527
10% 10.0% 9,256 9,292
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,657
Calibration 2     93,310
Calibration 3     90,835
ssj_ops@calibrated=92,073
100% 101.3% 92,073 93,281
90% 90.6% 82,865 83,412
80% 79.9% 73,658 73,595
70% 69.7% 64,451 64,185
60% 59.5% 55,244 54,763
50% 49.7% 46,036 45,794
40% 40.0% 36,829 36,821
30% 29.6% 27,622 27,277
20% 19.6% 18,415 18,069
10% 10.1% 9,207 9,337
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,171
Calibration 2     87,903
Calibration 3     90,415
ssj_ops@calibrated=89,159
100% 99.0% 89,159 88,309
90% 89.6% 80,243 79,859
80% 81.6% 71,327 72,798
70% 69.0% 62,411 61,476
60% 61.1% 53,495 54,434
50% 50.2% 44,580 44,725
40% 38.9% 35,664 34,679
30% 29.6% 26,748 26,402
20% 20.3% 17,832 18,142
10% 10.2% 8,916 9,104
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,642
Calibration 2     93,541
Calibration 3     91,882
ssj_ops@calibrated=92,712
100% 99.3% 92,712 92,025
90% 89.9% 83,441 83,360
80% 80.3% 74,169 74,430
70% 69.4% 64,898 64,376
60% 60.0% 55,627 55,613
50% 49.4% 46,356 45,818
40% 39.5% 37,085 36,667
30% 30.3% 27,814 28,108
20% 19.9% 18,542 18,471
10% 9.9% 9,271 9,221
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,949
Calibration 2     86,456
Calibration 3     88,320
ssj_ops@calibrated=87,388
100% 100.7% 87,388 87,961
90% 90.2% 78,649 78,785
80% 79.4% 69,910 69,423
70% 70.6% 61,172 61,707
60% 60.2% 52,433 52,617
50% 50.4% 43,694 44,081
40% 40.0% 34,955 34,917
30% 29.9% 26,216 26,090
20% 20.4% 17,478 17,821
10% 10.0% 8,739 8,721
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,862
Calibration 2     85,192
Calibration 3     86,193
ssj_ops@calibrated=85,692
100% 100.4% 85,692 86,009
90% 90.2% 77,123 77,294
80% 80.8% 68,554 69,200
70% 69.8% 59,985 59,808
60% 61.0% 51,415 52,260
50% 49.8% 42,846 42,691
40% 40.2% 34,277 34,467
30% 30.0% 25,708 25,666
20% 19.8% 17,138 16,933
10% 9.9% 8,569 8,508
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,100
Calibration 2     91,471
Calibration 3     92,566
ssj_ops@calibrated=92,018
100% 99.5% 92,018 91,579
90% 90.3% 82,817 83,127
80% 79.1% 73,615 72,802
70% 70.3% 64,413 64,680
60% 60.7% 55,211 55,859
50% 50.7% 46,009 46,632
40% 40.0% 36,807 36,820
30% 30.2% 27,606 27,786
20% 19.8% 18,404 18,227
10% 10.1% 9,202 9,279
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,885
Calibration 2     89,691
Calibration 3     90,890
ssj_ops@calibrated=90,290
100% 99.4% 90,290 89,791
90% 90.1% 81,261 81,311
80% 79.9% 72,232 72,155
70% 69.5% 63,203 62,753
60% 60.8% 54,174 54,902
50% 49.8% 45,145 44,962
40% 39.9% 36,116 35,988
30% 29.6% 27,087 26,697
20% 19.6% 18,058 17,742
10% 10.5% 9,029 9,487
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,114
Calibration 2     87,852
Calibration 3     88,920
ssj_ops@calibrated=88,386
100% 100.0% 88,386 88,358
90% 90.8% 79,548 80,290
80% 80.4% 70,709 71,095
70% 70.6% 61,870 62,406
60% 60.2% 53,032 53,186
50% 49.9% 44,193 44,067
40% 40.2% 35,354 35,504
30% 29.6% 26,516 26,179
20% 19.6% 17,677 17,333
10% 10.1% 8,839 8,883
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,856
Calibration 2     87,258
Calibration 3     88,539
ssj_ops@calibrated=87,898
100% 100.0% 87,898 87,937
90% 89.6% 79,109 78,781
80% 79.4% 70,319 69,832
70% 70.4% 61,529 61,871
60% 58.3% 52,739 51,249
50% 49.6% 43,949 43,597
40% 39.9% 35,159 35,075
30% 29.8% 26,370 26,154
20% 20.1% 17,580 17,704
10% 9.9% 8,790 8,662
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,223
Calibration 2     91,331
Calibration 3     92,145
ssj_ops@calibrated=91,738
100% 101.1% 91,738 92,761
90% 91.2% 82,564 83,694
80% 79.7% 73,390 73,078
70% 69.9% 64,217 64,096
60% 60.6% 55,043 55,628
50% 50.1% 45,869 45,924
40% 39.9% 36,695 36,590
30% 30.6% 27,521 28,115
20% 20.1% 18,348 18,463
10% 9.6% 9,174 8,817
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,336
Calibration 2     92,436
Calibration 3     92,310
ssj_ops@calibrated=92,373
100% 100.6% 92,373 92,973
90% 90.8% 83,136 83,849
80% 79.6% 73,899 73,521
70% 69.5% 64,661 64,200
60% 61.3% 55,424 56,635
50% 50.0% 46,187 46,218
40% 40.1% 36,949 37,012
30% 29.9% 27,712 27,646
20% 19.8% 18,475 18,333
10% 9.9% 9,237 9,175
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,238
Calibration 2     90,642
Calibration 3     91,754
ssj_ops@calibrated=91,198
100% 100.5% 91,198 91,632
90% 90.5% 82,078 82,574
80% 78.6% 72,958 71,726
70% 70.0% 63,839 63,876
60% 60.3% 54,719 54,992
50% 49.6% 45,599 45,265
40% 39.5% 36,479 36,047
30% 29.8% 27,359 27,153
20% 19.4% 18,240 17,731
10% 10.1% 9,120 9,196
Active Idle   0 0

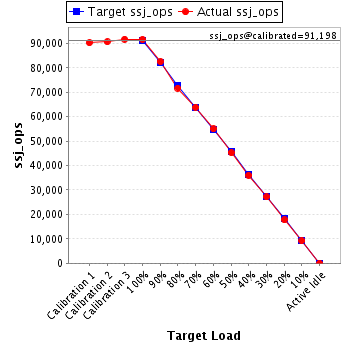

Graph of results
JVM 'linux-2vzw.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,286
Calibration 2     87,903
Calibration 3     89,489
ssj_ops@calibrated=88,696
100% 102.5% 88,696 90,888
90% 89.4% 79,827 79,255
80% 79.4% 70,957 70,466
70% 70.3% 62,087 62,363
60% 60.6% 53,218 53,774
50% 49.8% 44,348 44,175
40% 40.1% 35,479 35,574
30% 30.0% 26,609 26,608
20% 19.8% 17,739 17,583
10% 10.0% 8,870 8,879
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,720
Calibration 2     88,640
Calibration 3     90,445
ssj_ops@calibrated=89,543
100% 100.7% 89,543 90,193
90% 89.8% 80,588 80,435
80% 80.1% 71,634 71,707
70% 70.4% 62,680 63,015
60% 59.8% 53,726 53,532
50% 49.6% 44,771 44,371
40% 39.4% 35,817 35,263
30% 30.2% 26,863 27,056
20% 20.1% 17,909 17,979
10% 9.7% 8,954 8,705
Active Idle   0 0

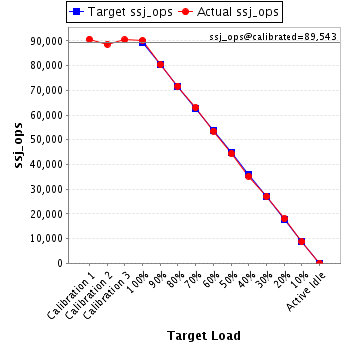

Graph of results
JVM 'linux-2vzw.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,175
Calibration 2     87,885
Calibration 3     89,125
ssj_ops@calibrated=88,505
100% 100.5% 88,505 88,936
90% 88.6% 79,655 78,372
80% 80.6% 70,804 71,292
70% 70.4% 61,954 62,327
60% 60.5% 53,103 53,534
50% 49.9% 44,253 44,164
40% 40.7% 35,402 35,999
30% 30.3% 26,552 26,822
20% 20.0% 17,701 17,662
10% 9.8% 8,851 8,700
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,089
Calibration 2     90,408
Calibration 3     89,522
ssj_ops@calibrated=89,965
100% 101.6% 89,965 91,362
90% 90.4% 80,968 81,293
80% 80.1% 71,972 72,088
70% 70.8% 62,975 63,657
60% 60.5% 53,979 54,455
50% 49.8% 44,982 44,810
40% 40.2% 35,986 36,196
30% 29.9% 26,989 26,933
20% 20.1% 17,993 18,054
10% 10.5% 8,996 9,441
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,749
Calibration 2     89,437
Calibration 3     89,432
ssj_ops@calibrated=89,434
100% 101.3% 89,434 90,582
90% 90.0% 80,491 80,448
80% 79.3% 71,548 70,965
70% 70.5% 62,604 63,011
60% 60.1% 53,661 53,786
50% 49.5% 44,717 44,280
40% 40.4% 35,774 36,117
30% 30.3% 26,830 27,121
20% 19.6% 17,887 17,529
10% 10.0% 8,943 8,912
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,478
Calibration 2     90,720
Calibration 3     90,872
ssj_ops@calibrated=90,796
100% 100.2% 90,796 90,936
90% 91.0% 81,717 82,581
80% 80.1% 72,637 72,685
70% 69.9% 63,557 63,461
60% 60.0% 54,478 54,498
50% 50.2% 45,398 45,596
40% 40.4% 36,318 36,689
30% 30.0% 27,239 27,264
20% 19.7% 18,159 17,915
10% 9.8% 9,080 8,892
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,937
Calibration 2     87,180
Calibration 3     87,274
ssj_ops@calibrated=87,227
100% 100.7% 87,227 87,877
90% 90.6% 78,505 79,057
80% 79.4% 69,782 69,301
70% 70.5% 61,059 61,510
60% 59.7% 52,336 52,118
50% 50.0% 43,614 43,586
40% 39.7% 34,891 34,614
30% 29.8% 26,168 26,022
20% 19.5% 17,445 16,979
10% 10.0% 8,723 8,679
Active Idle   0 0

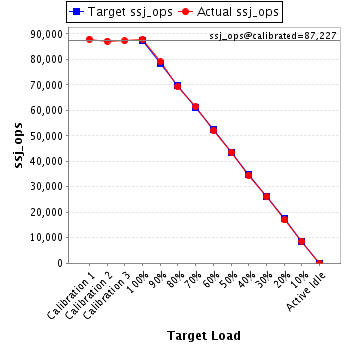

Graph of results
JVM 'linux-2vzw.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,944
Calibration 2     89,683
Calibration 3     89,746
ssj_ops@calibrated=89,715
100% 99.4% 89,715 89,198
90% 90.1% 80,743 80,842
80% 80.6% 71,772 72,339
70% 70.1% 62,800 62,925
60% 59.4% 53,829 53,311
50% 50.4% 44,857 45,205
40% 40.0% 35,886 35,856
30% 29.6% 26,914 26,579
20% 20.2% 17,943 18,089
10% 10.0% 8,971 8,933
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,047
Calibration 2     89,858
Calibration 3     90,150
ssj_ops@calibrated=90,004
100% 100.3% 90,004 90,261
90% 90.2% 81,003 81,201
80% 80.3% 72,003 72,249
70% 70.1% 63,003 63,104
60% 60.1% 54,002 54,056
50% 50.3% 45,002 45,235
40% 39.8% 36,002 35,840
30% 30.1% 27,001 27,060
20% 19.7% 18,001 17,758
10% 9.7% 9,000 8,742
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,785
Calibration 2     90,041
Calibration 3     89,692
ssj_ops@calibrated=89,866
100% 100.2% 89,866 90,025
90% 89.7% 80,880 80,566
80% 79.6% 71,893 71,576
70% 70.6% 62,907 63,482
60% 60.4% 53,920 54,241
50% 49.8% 44,933 44,727
40% 39.7% 35,947 35,719
30% 29.8% 26,960 26,806
20% 19.8% 17,973 17,753
10% 9.8% 8,987 8,812
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,086
Calibration 2     90,357
Calibration 3     90,926
ssj_ops@calibrated=90,642
100% 100.3% 90,642 90,940
90% 89.0% 81,578 80,664
80% 80.2% 72,513 72,697
70% 69.1% 63,449 62,662
60% 59.4% 54,385 53,813
50% 50.2% 45,321 45,494
40% 40.0% 36,257 36,261
30% 30.4% 27,193 27,525
20% 20.1% 18,128 18,254
10% 9.6% 9,064 8,683
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,143
Calibration 2     92,302
Calibration 3     92,270
ssj_ops@calibrated=92,286
100% 98.1% 92,286 90,518
90% 90.1% 83,057 83,105
80% 80.4% 73,829 74,234
70% 70.4% 64,600 64,946
60% 59.8% 55,372 55,196
50% 50.5% 46,143 46,646
40% 39.5% 36,914 36,430
30% 29.9% 27,686 27,616
20% 19.8% 18,457 18,271
10% 9.6% 9,229 8,883
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,326
Calibration 2     89,678
Calibration 3     89,991
ssj_ops@calibrated=89,834
100% 100.8% 89,834 90,529
90% 89.8% 80,851 80,691
80% 80.5% 71,868 72,305
70% 70.8% 62,884 63,574
60% 59.9% 53,901 53,844
50% 50.7% 44,917 45,575
40% 39.2% 35,934 35,242
30% 30.0% 26,950 26,930
20% 19.9% 17,967 17,869
10% 9.9% 8,983 8,875
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,380
Calibration 2     92,156
Calibration 3     91,977
ssj_ops@calibrated=92,067
100% 99.6% 92,067 91,724
90% 90.2% 82,860 83,081
80% 79.0% 73,653 72,713
70% 71.3% 64,447 65,665
60% 59.1% 55,240 54,424
50% 49.8% 46,033 45,865
40% 39.4% 36,827 36,265
30% 30.6% 27,620 28,143
20% 20.1% 18,413 18,492
10% 10.0% 9,207 9,187
Active Idle   0 0

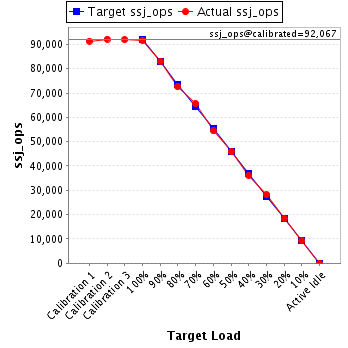

Graph of results
JVM 'linux-2vzw.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,872
Calibration 2     91,877
Calibration 3     91,625
ssj_ops@calibrated=91,751
100% 100.1% 91,751 91,843
90% 88.8% 82,576 81,512
80% 80.4% 73,401 73,776
70% 69.1% 64,226 63,420
60% 60.1% 55,051 55,099
50% 49.8% 45,876 45,654
40% 39.8% 36,700 36,560
30% 30.6% 27,525 28,122
20% 19.7% 18,350 18,058
10% 10.4% 9,175 9,517
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,622
Calibration 2     92,352
Calibration 3     92,481
ssj_ops@calibrated=92,417
100% 100.0% 92,417 92,427
90% 89.6% 83,175 82,835
80% 80.2% 73,933 74,101
70% 70.4% 64,692 65,065
60% 60.4% 55,450 55,826
50% 50.1% 46,208 46,337
40% 40.0% 36,967 36,991
30% 28.9% 27,725 26,729
20% 19.8% 18,483 18,271
10% 9.8% 9,242 9,089
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,999
Calibration 2     92,249
Calibration 3     92,899
ssj_ops@calibrated=92,574
100% 100.6% 92,574 93,146
90% 90.7% 83,317 83,964
80% 80.5% 74,059 74,554
70% 69.0% 64,802 63,863
60% 60.0% 55,544 55,563
50% 50.7% 46,287 46,912
40% 40.0% 37,030 37,001
30% 30.2% 27,772 27,951
20% 19.8% 18,515 18,319
10% 9.7% 9,257 8,992
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,984
Calibration 2     86,792
Calibration 3     87,168
ssj_ops@calibrated=86,980
100% 102.3% 86,980 88,995
90% 91.4% 78,282 79,542
80% 79.1% 69,584 68,786
70% 70.7% 60,886 61,511
60% 59.8% 52,188 52,046
50% 50.5% 43,490 43,940
40% 39.3% 34,792 34,180
30% 30.0% 26,094 26,112
20% 19.6% 17,396 17,038
10% 9.7% 8,698 8,442
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,010
Calibration 2     93,502
Calibration 3     93,238
ssj_ops@calibrated=93,370
100% 100.6% 93,370 93,923
90% 90.3% 84,033 84,276
80% 79.9% 74,696 74,603
70% 69.8% 65,359 65,188
60% 60.1% 56,022 56,119
50% 50.2% 46,685 46,874
40% 40.0% 37,348 37,332
30% 30.1% 28,011 28,058
20% 20.0% 18,674 18,692
10% 10.2% 9,337 9,533
Active Idle   0 0
Graph of results
JVM 'linux-2vzw.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,518
Calibration 2     92,004
Calibration 3     91,435
ssj_ops@calibrated=91,719
100% 100.9% 91,719 92,542
90% 91.5% 82,547 83,919
80% 80.5% 73,376 73,872
70% 70.5% 64,204 64,683
60% 60.6% 55,032 55,589
50% 50.4% 45,860 46,192
40% 39.1% 36,688 35,840
30% 30.1% 27,516 27,637
20% 20.0% 18,344 18,346
10% 9.9% 9,172 9,075
Active Idle   0 0
Graph of results
