SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX1330 M4 | SPECpower_ssj2008 = 11,660 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Dec 3, 2019 |
| Hardware Availability: | Oct-2019 | Software Availability: | Dec-2018 | Publication: | Dec 18, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

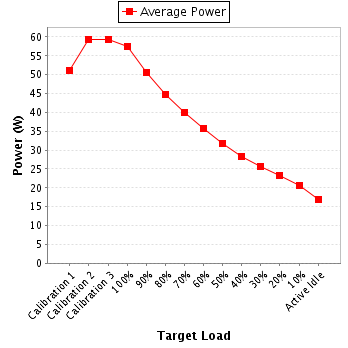

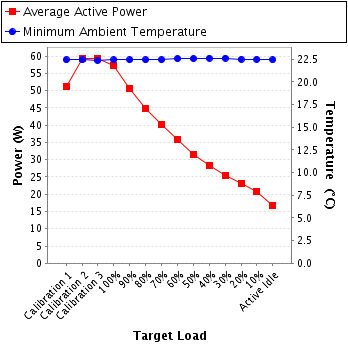

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 51.2 | 22.4 |
| Calibration 2 | 59.3 | 22.4 |
| Calibration 3 | 59.4 | 22.4 |
| 100% | 57.4 | 22.4 |
| 90% | 50.6 | 22.4 |
| 80% | 44.7 | 22.4 |
| 70% | 40.1 | 22.4 |
| 60% | 35.8 | 22.6 |
| 50% | 31.6 | 22.6 |
| 40% | 28.3 | 22.6 |
| 30% | 25.6 | 22.6 |
| 20% | 23.2 | 22.5 |
| 10% | 20.7 | 22.5 |
| Active Idle | 16.8 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400086-1901 |
| Date of Calibration: | 30-Jan-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 300.0 | 0.323 | 1.0 | 0.789 | 51.2 | 0.5% |
| Calibration 2 | 203 | 300.0 | 0.364 | 1.0 | 0.802 | 59.3 | 0.4% |
| Calibration 3 | 204 | 300.0 | 0.364 | 1.0 | 0.802 | 59.4 | 0.4% |
| 100% | 204 | 300.0 | 0.349 | 1.0 | 0.806 | 57.4 | 0.4% |
| 90% | 207 | 300.0 | 0.307 | 1.0 | 0.799 | 50.6 | 0.5% |
| 80% | 207 | 300.0 | 0.275 | 1.0 | 0.786 | 44.7 | 0.5% |
| 70% | 207 | 300.0 | 0.250 | 1.0 | 0.773 | 40.1 | 0.6% |
| 60% | 207 | 300.0 | 0.227 | 1.0 | 0.760 | 35.8 | 0.6% |
| 50% | 206 | 300.0 | 0.207 | 1.0 | 0.744 | 31.6 | 0.7% |
| 40% | 206 | 300.0 | 0.189 | 1.0 | 0.726 | 28.3 | 0.7% |
| 30% | 206 | 300.0 | 0.176 | 0.5 | 0.707 | 25.6 | 0.5% |
| 20% | 206 | 300.0 | 0.164 | 0.5 | 0.686 | 23.2 | 0.5% |
| 10% | 206 | 300.0 | 0.153 | 0.2 | 0.656 | 20.7 | 0.4% |
| Active Idle | 206 | 300.0 | 0.139 | 0.2 | 0.587 | 16.8 | 0.4% |
