SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX1320 M4 | SPECpower_ssj2008 = 12,364 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Oct 1, 2019 |
| Hardware Availability: | Oct-2019 | Software Availability: | Dec-2018 | Publication: | Nov 6, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

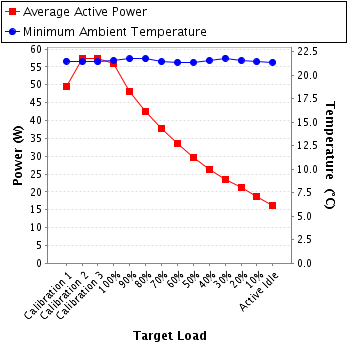

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 49.5 | 21.5 |
| Calibration 2 | 57.4 | 21.4 |
| Calibration 3 | 57.5 | 21.4 |
| 100% | 56.0 | 21.6 |
| 90% | 48.1 | 21.8 |
| 80% | 42.5 | 21.8 |
| 70% | 37.7 | 21.4 |
| 60% | 33.6 | 21.4 |
| 50% | 29.6 | 21.4 |
| 40% | 26.1 | 21.6 |
| 30% | 23.5 | 21.8 |
| 20% | 21.2 | 21.6 |
| 10% | 18.8 | 21.4 |
| Active Idle | 16.3 | 21.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400086-1901 |
| Date of Calibration: | 30-Jan-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |

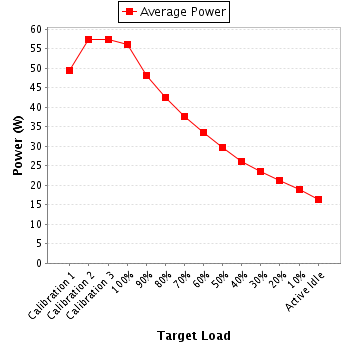

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 201 | 300.0 | 0.315 | 1.0 | 0.787 | 49.5 | 0.5% |
| Calibration 2 | 201 | 300.0 | 0.357 | 1.0 | 0.799 | 57.4 | 0.4% |
| Calibration 3 | 201 | 300.0 | 0.357 | 1.0 | 0.799 | 57.5 | 0.4% |
| 100% | 201 | 300.0 | 0.346 | 1.0 | 0.806 | 56.0 | 0.4% |
| 90% | 202 | 300.0 | 0.299 | 1.0 | 0.796 | 48.1 | 0.5% |
| 80% | 202 | 300.0 | 0.269 | 1.0 | 0.784 | 42.5 | 0.5% |
| 70% | 202 | 300.0 | 0.242 | 1.0 | 0.772 | 37.7 | 0.6% |
| 60% | 201 | 300.0 | 0.220 | 1.0 | 0.759 | 33.6 | 0.6% |
| 50% | 201 | 300.0 | 0.198 | 1.0 | 0.744 | 29.6 | 0.7% |
| 40% | 201 | 300.0 | 0.179 | 1.0 | 0.725 | 26.1 | 0.8% |
| 30% | 202 | 300.0 | 0.182 | 0.5 | 0.639 | 23.5 | 0.5% |
| 20% | 202 | 300.0 | 0.171 | 0.5 | 0.613 | 21.2 | 0.6% |
| 10% | 201 | 300.0 | 0.161 | 0.5 | 0.581 | 18.8 | 0.6% |
| Active Idle | 201 | 300.0 | 0.149 | 0.2 | 0.542 | 16.3 | 0.4% |
