SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7515 (AMD EPYC 7742, 2.25 GHz) | SPECpower_ssj2008 = 16,501 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Sep 2, 2019 |
| Hardware Availability: | Sep-2019 | Software Availability: | Apr-2019 | Publication: | Unpublished |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

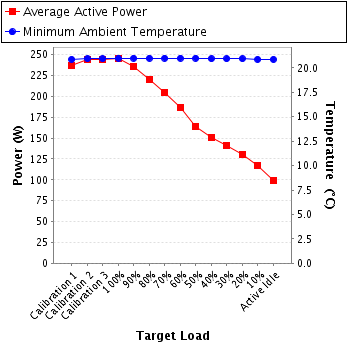

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 237 | 20.9 |
| Calibration 2 | 244 | 20.9 |
| Calibration 3 | 245 | 20.9 |
| 100% | 246 | 21.0 |
| 90% | 236 | 21.0 |
| 80% | 220 | 21.0 |
| 70% | 205 | 21.0 |
| 60% | 186 | 21.0 |
| 50% | 164 | 21.0 |
| 40% | 151 | 20.9 |
| 30% | 141 | 20.9 |
| 20% | 130 | 20.9 |
| 10% | 117 | 20.9 |
| Active Idle | 99.5 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91N819622 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | 98378 |
| Date of Calibration: | 21-Mar-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.18 | 2.0 | 0.967 | 237 | 0.5% |
| Calibration 2 | 208 | 300.0 | 1.22 | 2.0 | 0.966 | 244 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.22 | 2.0 | 0.967 | 245 | 0.4% |
| 100% | 208 | 300.0 | 1.22 | 2.0 | 0.967 | 246 | 0.4% |
| 90% | 208 | 300.0 | 1.17 | 2.0 | 0.968 | 236 | 0.5% |
| 80% | 208 | 300.0 | 1.09 | 2.0 | 0.969 | 220 | 0.5% |
| 70% | 208 | 300.0 | 1.01 | 2.0 | 0.974 | 205 | 0.5% |
| 60% | 208 | 300.0 | 0.915 | 1.0 | 0.978 | 186 | 0.4% |
| 50% | 208 | 300.0 | 0.803 | 1.0 | 0.980 | 164 | 0.4% |
| 40% | 208 | 300.0 | 0.742 | 1.0 | 0.979 | 151 | 0.4% |
| 30% | 208 | 300.0 | 0.694 | 1.0 | 0.976 | 141 | 0.4% |
| 20% | 208 | 300.0 | 0.643 | 1.0 | 0.970 | 130 | 0.4% |
| 10% | 208 | 300.0 | 0.584 | 1.0 | 0.964 | 117 | 0.5% |
| Active Idle | 208 | 300.0 | 0.500 | 0.5 | 0.955 | 99.5 | 0.4% |
