Lenovo Global Technology ThinkSystem SN850 SPECpower_ssj2008 = 12,295 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 19, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Aug 21, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,944 23.7
Calibration 2 4,992 24.1
Calibration 3 5,002 24.1
100% 4,985 23.8
90% 4,338 23.9
80% 3,879 24.1
70% 3,455 23.7
60% 3,075 23.5
50% 2,723 23.3
40% 2,458 23.1
30% 2,202 23.4
20% 1,939 23.7
10% 1,651 23.7
Active Idle 1,052 23.8

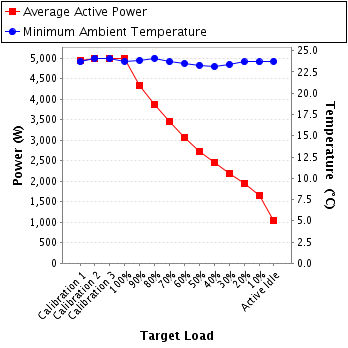

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB2
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA18013618-0008
Date of Calibration: 29-Oct-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 1,PSU 2,PSU 3
Power Analyzer pwr2
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310
Serial Number: C2RA21003V
Connectivity: USB2
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA18013618-0007
Date of Calibration: 29-Oct-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 4,PSU 5,PSU 6
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 11.5 20.0 0.991 2,503 0.3%
Calibration 2 219 300.0 11.6 20.0 0.991 2,528 0.3%
Calibration 3 219 300.0 11.7 20.0 0.992 2,535 0.3%
100% 219 300.0 11.6 20.0 0.991 2,526 0.3%
90% 220 300.0 10.1 20.0 0.990 2,196 0.3%
80% 220 300.0 9.05 20.0 0.988 1,963 0.3%
70% 220 300.0 8.08 20.0 0.986 1,749 0.3%
60% 220 300.0 7.21 10.0 0.982 1,554 0.2%
50% 220 300.0 6.43 10.0 0.977 1,380 0.3%
40% 220 300.0 5.83 10.0 0.973 1,246 0.3%
30% 220 300.0 5.25 10.0 0.966 1,114 0.3%
20% 220 300.0 4.69 10.0 0.957 986 0.3%
10% 220 300.0 4.08 10.0 0.943 845 0.3%
Active Idle 220 300.0 2.59 5.0 0.899 511 0.3%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 11.2 20.0 0.992 2,441 0.4%
Calibration 2 219 300.0 11.3 20.0 0.992 2,463 0.4%
Calibration 3 219 300.0 11.3 20.0 0.992 2,468 0.4%
100% 219 300.0 11.3 20.0 0.992 2,459 0.4%
90% 219 300.0 9.86 20.0 0.990 2,142 0.4%
80% 220 300.0 8.83 20.0 0.988 1,917 0.5%
70% 220 300.0 7.88 20.0 0.986 1,706 0.5%
60% 220 300.0 7.05 10.0 0.982 1,521 0.3%
50% 220 300.0 6.26 10.0 0.977 1,343 0.4%
40% 220 300.0 5.67 10.0 0.973 1,212 0.4%
30% 220 300.0 5.12 10.0 0.966 1,088 0.4%
20% 220 300.0 4.53 10.0 0.956 952 0.5%
10% 220 300.0 3.90 10.0 0.941 806 0.5%
Active Idle 220 300.0 2.78 5.0 0.888 542 0.5%

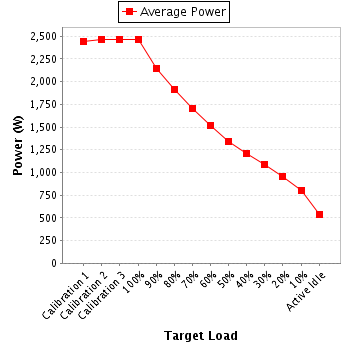

Power details for pwr2
