SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX2550 M5 | SPECpower_ssj2008 = 11,901 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Jul 30, 2019 |
| Hardware Availability: | Jun-2019 | Software Availability: | Dec-2018 | Publication: | Sep 19, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

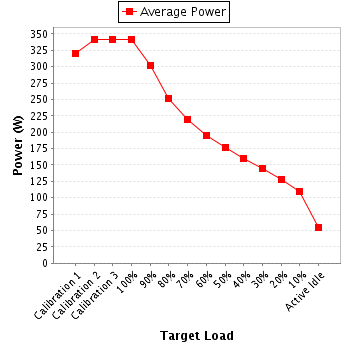

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 320 | 20.9 |
| Calibration 2 | 342 | 20.9 |
| Calibration 3 | 342 | 20.9 |
| 100% | 342 | 20.9 |
| 90% | 301 | 20.9 |
| 80% | 251 | 21.1 |
| 70% | 219 | 21.1 |
| 60% | 195 | 21.1 |
| 50% | 177 | 21.1 |
| 40% | 160 | 21.1 |
| 30% | 145 | 21.1 |
| 20% | 128 | 21.1 |
| 10% | 110 | 21.1 |
| Active Idle | 54.8 | 21.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION. |
| Calibration Label: | H06400086-1901 |
| Date of Calibration: | 30-Jan-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 1.60 | 5.0 | 0.989 | 320 | 0.4% |
| Calibration 2 | 204 | 300.0 | 1.69 | 5.0 | 0.990 | 342 | 0.3% |
| Calibration 3 | 204 | 300.0 | 1.69 | 5.0 | 0.990 | 342 | 0.3% |
| 100% | 204 | 300.0 | 1.69 | 5.0 | 0.990 | 342 | 0.3% |
| 90% | 205 | 300.0 | 1.49 | 5.0 | 0.988 | 301 | 0.4% |
| 80% | 205 | 300.0 | 1.25 | 2.0 | 0.985 | 251 | 0.2% |
| 70% | 205 | 300.0 | 1.09 | 2.0 | 0.982 | 219 | 0.3% |
| 60% | 205 | 300.0 | 0.973 | 2.0 | 0.981 | 195 | 0.3% |
| 50% | 205 | 300.0 | 0.879 | 2.0 | 0.980 | 177 | 0.3% |
| 40% | 205 | 300.0 | 0.800 | 2.0 | 0.977 | 160 | 0.3% |
| 30% | 205 | 300.0 | 0.724 | 2.0 | 0.974 | 145 | 0.3% |
| 20% | 205 | 300.0 | 0.645 | 2.0 | 0.969 | 128 | 0.4% |
| 10% | 205 | 300.0 | 0.558 | 1.0 | 0.961 | 110 | 0.3% |
| Active Idle | 205 | 300.0 | 0.304 | 1.0 | 0.879 | 54.8 | 0.4% |
