SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL325 Gen10 | SPECpower_ssj2008 = 16,226 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jul 30, 2019 |
| Hardware Availability: | Aug-2019 | Software Availability: | Jun-2019 | Publication: | Aug 14, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

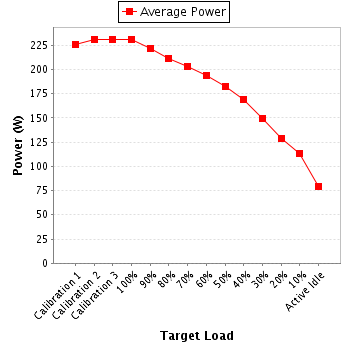

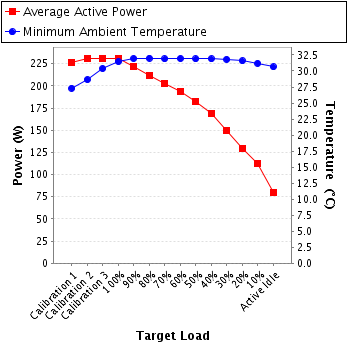

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 226 | 27.3 |
| Calibration 2 | 231 | 28.6 |
| Calibration 3 | 231 | 30.4 |
| 100% | 231 | 31.4 |
| 90% | 222 | 31.9 |
| 80% | 212 | 32.0 |
| 70% | 203 | 31.9 |
| 60% | 194 | 31.9 |
| 50% | 183 | 31.9 |
| 40% | 168 | 31.9 |
| 30% | 149 | 31.8 |
| 20% | 129 | 31.6 |
| 10% | 113 | 31.2 |
| Active Idle | 79.5 | 30.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB47167 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-E553M-40-1 |
| Date of Calibration: | 21-Jun-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.0-ee285d08-20190201 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300.0 | 1.08 | 2.0 | 0.981 | 226 | 0.5% |
| Calibration 2 | 212 | 300.0 | 1.11 | 2.0 | 0.982 | 231 | 0.4% |
| Calibration 3 | 213 | 300.0 | 1.11 | 2.0 | 0.982 | 231 | 0.4% |
| 100% | 213 | 300.0 | 1.11 | 2.0 | 0.982 | 231 | 0.4% |
| 90% | 212 | 300.0 | 1.06 | 2.0 | 0.981 | 222 | 0.5% |
| 80% | 213 | 300.0 | 1.02 | 2.0 | 0.980 | 212 | 0.5% |
| 70% | 213 | 300.0 | 0.974 | 1.0 | 0.978 | 203 | 0.3% |
| 60% | 213 | 300.0 | 0.932 | 1.0 | 0.976 | 194 | 0.3% |
| 50% | 213 | 300.0 | 0.882 | 1.0 | 0.974 | 183 | 0.4% |
| 40% | 213 | 300.0 | 0.817 | 1.0 | 0.970 | 168 | 0.4% |
| 30% | 213 | 300.0 | 0.728 | 1.0 | 0.963 | 149 | 0.4% |
| 20% | 213 | 300.0 | 0.635 | 1.0 | 0.954 | 129 | 0.4% |
| 10% | 212 | 300.0 | 0.563 | 1.0 | 0.943 | 113 | 0.5% |
| Active Idle | 212 | 300.0 | 0.419 | 1.0 | 0.895 | 79.5 | 0.6% |
