SPECpower_ssj2008

Lenovo Global Technology Think System SR655			SPECpower_ssj2008 = 20,176 overall ssj_ops/watt
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	Jul 11, 2019
Hardware Availability:	Aug-2019	Software Availability:	Dec-2018	Publication:	Sep 19, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR655
Form Factor:	2U
CPU Name:	AMD EPYC 7742 2.25Ghz
CPU Characteristics:	64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16384 MB
Memory Details:	8 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, and 16 populated
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Lenovo P/N:SP57A03125
Disk Drive:	1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	4 x Broadcom 1Gb RJ45 4-port Ethernet
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	Kernel 4.12.14-94.41-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn900m -Xms1024m -Xmx1024m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances:	64
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	CFE103A
Management Firmware Version:	AMBT03A
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Benchmark started via ssh
Each JVM instance was affinitized to two threads on a single socket
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter - Version 6.3.9600 (Build 9600)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3SH31010E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	Yokogawa Test & Measurement Corporation
Accredited by:	Yokogawa Test & Measurement Corporation
Calibration Label:	18BB98-C93CAA-88AB7B
Date of Calibration:	29-Oct-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.0-ee285d08-20190201
Setup Description:	Connected to PSU 1

SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

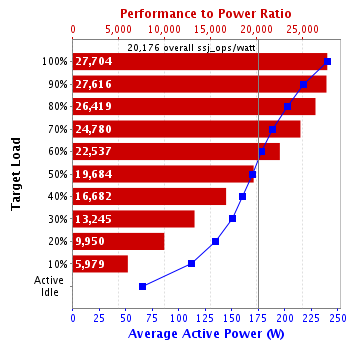

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	240	21.5
90%	218	21.3
80%	202	21.1
70%	189	20.9
60%	178	20.8
50%	170	21.1
40%	160	21.3
30%	151	21.2
20%	134	21.2
10%	111	21.1
Active Idle	66.1	21.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	20.8	43

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
