Lenovo Global Technology Think System SR655 SPECpower_ssj2008 = 19,149 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 17, 2019
Hardware Availability: Aug-2019 Software Availability: Dec-2018 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 242 22.6
Calibration 2 243 22.8
Calibration 3 243 22.9
100% 243 22.9
90% 219 23.0
80% 204 23.1
70% 190 23.1
60% 180 23.2
50% 170 23.1
40% 159 22.8
30% 148 22.6
20% 138 22.6
10% 123 22.6
Active Idle 76.8 22.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 18BB98-C93CAA-88AB7B
Date of Calibration: 29-Oct-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.12 2.0 0.982 242 0.3%
Calibration 2 220 300.0 1.13 2.0 0.982 243 0.3%
Calibration 3 220 300.0 1.13 2.0 0.982 243 0.3%
100% 220 300.0 1.13 2.0 0.982 243 0.3%
90% 220 300.0 1.02 2.0 0.979 219 0.3%
80% 220 300.0 0.949 2.0 0.977 204 0.3%
70% 220 300.0 0.882 2.0 0.981 190 0.3%
60% 220 300.0 0.838 2.0 0.979 180 0.3%
50% 220 300.0 0.791 2.0 0.977 170 0.3%
40% 220 300.0 0.743 2.0 0.975 159 0.3%
30% 220 300.0 0.694 2.0 0.972 148 0.3%
20% 220 300.0 0.649 2.0 0.968 138 0.4%
10% 220 300.0 0.581 2.0 0.960 123 0.4%
Active Idle 220 300.0 0.389 2.0 0.901 76.8 0.6%

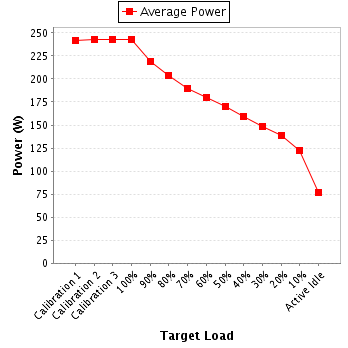

Power details for pwr1
