SPECpower_ssj2008 Host 'WIN-MHT9E21O45H' Performance Report

SPECpower_ssj2008

Host 'WIN-MHT9E21O45H' Performance Report

Dell Inc. PowerEdge R240 (Intel Xeon E-2176G, 3.70 GHz)			ssj_ops@100% = 856,931 ssj_ops@100% per JVM = 428,466
Test Sponsor:	Dell Inc.	SPEC License #:	55	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Jun 30, 2019
Hardware Availability:	Apr-2019	Software Availability:	Apr-2015	Publication:	Jul 17, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge R240 (Intel Xeon E-2176G, 3.70 GHz)
Form Factor:	1U
CPU Name:	Intel Xeon E-2176G
CPU Characteristics:	6 core, 3.70 GHz, 12 MB L3 Cache
CPU Frequency (MHz):	3700
CPU(s) Enabled:	6 cores, 1 chip, 6 cores/chip
Hardware Threads:	12 (2 / core)
CPU(s) Orderable:	1 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	32
# and size of DIMM:	2 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2933Y-R running at 2666. Slots A1-2 populated.
Power Supply Quantity and Rating (W):	1 x 250
Power Supply Details:	Integrated 250W Bronze Efficiency
Disk Drive:	1 x 240 GB SATA SSD
Disk Controller:	Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed:	1 x quad-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3.9600.18969
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options:	-server -Xmx1850m -Xms1850m -Xmn1600m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=6 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0] /AFFINITY [0x3F,0xFC0]
JVM Instances:	2
JVM Initial Heap (MB):	1850
JVM Maximum Heap (MB):	1850
JVM Address Bits:	64
Boot Firmware Version:	1.1.5
Management Firmware Version:	3.34.34.34 A00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows Server 2012 R2 monthly security rollups KB4489881, KB4489883 applied to the test system in Apr-2019 prior to results generation.

none

Each JVM instance was bound to 6 logical processors
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
SPECpower_ssj.props input.load_level.number_warehouses set to 12 to detect the full number of available processors
Power Plan Minimum processor state set to 0%
Power Plan Maximum processor state set to 100%
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Nov 4, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session ManagerMemory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

None

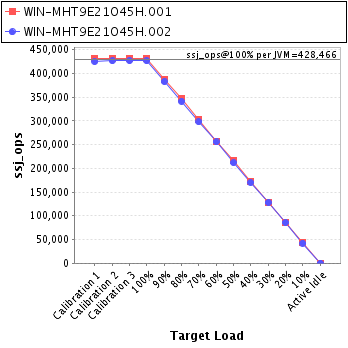

JVM 'WIN-MHT9E21O45H.001' Scores:

See the JVM Instance Performance Report for additional details.

JVM 'WIN-MHT9E21O45H.002' Scores:

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
