Lenovo Global Technology ThinkSystem SR850 SPECpower_ssj2008 = 13,357 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 29, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Jul 17, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 660 27.2
Calibration 2 671 27.3
Calibration 3 672 28.2
100% 672 28.8
90% 584 29.0
80% 521 28.5
70% 463 22.4
60% 409 22.6
50% 361 25.9
40% 320 28.5
30% 283 30.0
20% 246 30.6
10% 218 30.7
Active Idle 121 30.9

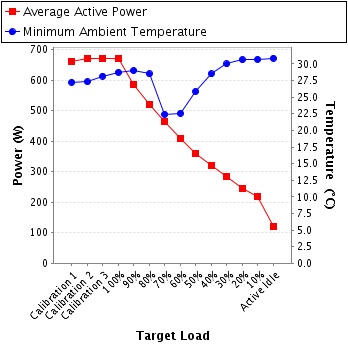

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 18BB98-C93CAA-88AB7B
Date of Calibration: 29-Oct-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1,PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 3.04 5.0 0.993 660 0.2%
Calibration 2 219 300.0 3.09 5.0 0.993 671 0.2%
Calibration 3 219 300.0 3.09 5.0 0.993 672 0.2%
100% 219 300.0 3.09 5.0 0.993 672 0.2%
90% 219 300.0 2.69 5.0 0.992 584 0.3%
80% 219 300.0 2.40 5.0 0.991 521 0.3%
70% 219 300.0 2.13 5.0 0.990 463 0.3%
60% 219 300.0 1.89 5.0 0.987 409 0.3%
50% 219 300.0 1.67 5.0 0.986 361 0.3%
40% 219 300.0 1.48 5.0 0.982 320 0.4%
30% 220 300.0 1.32 5.0 0.978 283 0.4%
20% 220 300.0 1.15 5.0 0.971 246 0.5%
10% 220 300.0 1.03 5.0 0.964 218 0.5%
Active Idle 220 300.0 0.612 5.0 0.903 121 0.8%

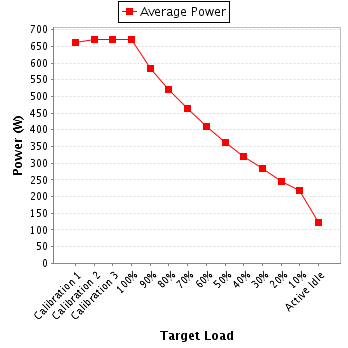

Power details for pwr1
