Lenovo Global Technology ThinkSystem SD530 SPECpower_ssj2008 = 12,377 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 11, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Jul 17, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,341 26.1
Calibration 2 1,353 25.3
Calibration 3 1,344 25.2
100% 1,324 25.1
90% 1,191 24.5
80% 1,064 24.4
70% 942 24.7
60% 836 24.3
50% 761 24.6
40% 688 24.6
30% 618 24.7
20% 547 24.8
10% 471 24.6
Active Idle 315 24.8

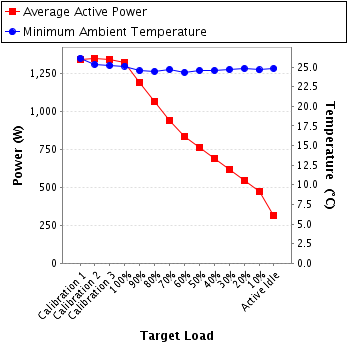

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310
Serial Number: C2RA21001V
Connectivity: USB2
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 18E388-BA1615-D8180F
Date of Calibration: 19-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1,PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 218 300.0 6.17 10.0 0.998 1,341 0.3%
Calibration 2 218 300.0 6.22 10.0 0.999 1,353 0.3%
Calibration 3 218 300.0 6.19 10.0 0.998 1,344 0.3%
100% 218 300.0 6.10 10.0 0.997 1,324 0.4%
90% 218 300.0 5.48 10.0 0.997 1,191 0.4%
80% 218 300.0 4.90 10.0 0.996 1,064 0.4%
70% 218 300.0 4.34 10.0 0.995 942 0.4%
60% 219 300.0 3.85 10.0 0.994 836 0.5%
50% 219 300.0 3.50 5.0 0.994 761 0.3%
40% 219 300.0 3.17 5.0 0.994 688 0.3%
30% 219 300.0 2.84 5.0 0.993 618 0.4%
20% 219 300.0 2.52 5.0 0.992 547 0.4%
10% 219 300.0 2.17 5.0 0.989 471 0.5%
Active Idle 219 300.0 1.47 5.0 0.975 315 0.6%

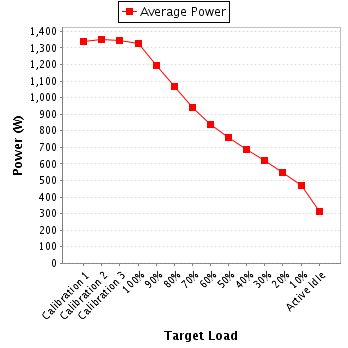

Power details for pwr1
