SPECpower_ssj2008

New H3C Technologies Co., Ltd. H3C UniServer B5700 G3			SPECpower_ssj2008 = 11,066 overall ssj_ops/watt
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Multi Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	May 24, 2019
Hardware Availability:	Jan-2019	Software Availability:	Jan-2019	Publication:	Jun 26, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

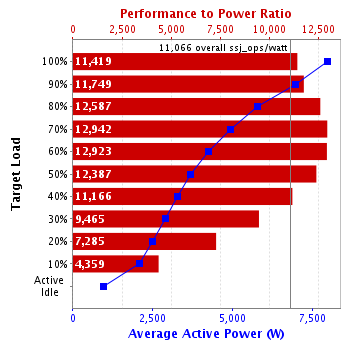

Benchmark Results Summary

Performance			Power	Performance to Power Ratio
Target Load	Actual Load	ssj_ops	Average Active Power (W)	Performance to Power Ratio
100%	99.8%	90,968,790	7,967	11,419
90%	90.0%	81,996,590	6,979	11,749
80%	80.0%	72,887,128	5,791	12,587
70%	70.1%	63,839,878	4,933	12,942
60%	60.0%	54,685,466	4,232	12,923
50%	50.0%	45,600,356	3,681	12,387
40%	40.0%	36,431,837	3,263	11,166
30%	30.0%	27,332,155	2,888	9,465
20%	20.0%	18,216,470	2,501	7,285
10%	10.0%	9,106,447	2,089	4,359
Active Idle		0	959	0
∑ssj_ops / ∑power =				11,066

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
16	32	896	1,792	3,072	16	64

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	H3C UniServer B16000
Form Factor:	12U
Power Supply Quantity and Rating (W):	4 x 3000
Power Supply Details:	DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch:	1
Network Switch Details:	H3C S5500 Series
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Network switch not measured for power

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	16
Comment:	SUT

Hardware per Node
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer B5700 G3
Form Factor:	other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192.0
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	2.00.25
Management Firmware Version:	UIS-OM 1.00.10
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 16, 2019

Boot Firmware Settings

USB Control: All USB Ports Disabled
Internal SD Card Slot: Disabled
SR-IOV Support: Disabled
Intel VT for Directed I/O(VT-d):Disabled
Patrol Scrub:Disabled
Memory Frequency:2400
ENERGY_PERF_BIAS_CFG Mode:Balanced Power
Turbo Mode:Disabled
SNC:Enabled
Hardware Prefetcher:Disabled
Adjacent Cache Prefetch:Disabled
DCU Streamer Prefetcher:Disabled
DCU IP Prefetcher:Disabled
LLC Prefetch:Disabled
XPT Prefetch:Enabled
UPI Link Frequency Select:9.6GT/s
PCH sSATA Configuration:Disabled
Page Policy:Adaptive
IMC Interleaving:1-way Interleave
Local/Remote Threshold:Medium
Isoc Mode:Enable
CPU C6 Report:Enable
Package C State:No Limit

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Controller System

Hardware
Hardware Vendor:	Hangzhou H3C Technologies Co., Ltd.
Model:	UIS R390X G2
CPU Description:	Intel Xeon CPU E5-2620 V4 @2.10GHz
Memory amount (GB):	208.0

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
CCS Version:	1.2.6

Measurement Devices

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	Yokogawa WT1800E
Serial Number:	C3VA04022E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by:	Calibration and Testing Center of CEPEI
Calibration Label:	1GA19J01715-0012
Date of Calibration:	4-Apr-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.0-ee285d08-20190201
Setup Description:	SUT Power Supply 1 and 2

Power Analyzer pwr2
Hardware Vendor:	Yokogawa
Model:	Yokogawa WT1800E
Serial Number:	C3VA04023E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by:	Calibration and Testing Center of CEPEI
Calibration Label:	1GA19J01715-0013
Date of Calibration:	4-Apr-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.0-ee285d08-20190201
Setup Description:	SUT Power Supply 3 and 4

Temperature Sensor temp1
Hardware Vendor:	iButtonLink
Model:	LinkUSBi + T-Probe
Driver Version:	2.12.28.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

Notes

None

Aggregate Electrical and Environmental Data

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	7,967	28.9
90%	6,979	28.9
80%	5,791	28.6
70%	4,933	27.8
60%	4,232	27.7
50%	3,681	28.4
40%	3,263	28.6
30%	2,888	29.6
20%	2,501	30.9
10%	2,089	30.4
Active Idle	959	28.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	27.7	132

See the Power/Temperature Details Report for additional details.

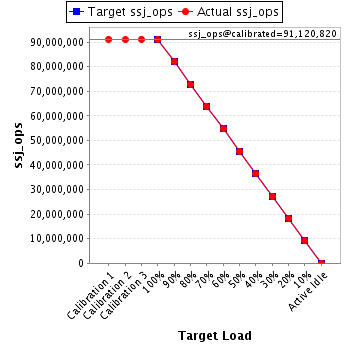

Aggregate Performance Data

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,189,399
Calibration 2			91,039,818
Calibration 3			91,201,822
ssj_ops@calibrated=91,120,820
100%	99.8%	91,120,820	90,968,790
90%	90.0%	82,008,738	81,996,590
80%	80.0%	72,896,656	72,887,128
70%	70.1%	63,784,574	63,839,878
60%	60.0%	54,672,492	54,685,466
50%	50.0%	45,560,410	45,600,356
40%	40.0%	36,448,328	36,431,837
30%	30.0%	27,336,246	27,332,155
20%	20.0%	18,224,164	18,216,470
10%	10.0%	9,112,082	9,106,447
Active Idle		0	0

See the Aggregate Performance Report for additional details.
