New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 85,336,817
ssj_ops@100% per Host = 5,689,121
ssj_ops@100% per JVM = 1,422,280
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 23, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 26, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,527,293
Calibration 2     85,416,184
Calibration 3     85,581,039
ssj_ops@calibrated=85,498,612
100% 99.8% 85,498,612 85,336,817
90% 90.0% 76,948,750 76,932,752
80% 80.1% 68,398,889 68,482,317
70% 70.0% 59,849,028 59,843,442
60% 60.0% 51,299,167 51,286,795
50% 50.0% 42,749,306 42,768,691
40% 40.0% 34,199,445 34,197,609
30% 30.0% 25,649,583 25,653,535
20% 20.0% 17,099,722 17,102,600
10% 10.0% 8,549,861 8,546,350
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
15 30 840 1,680 2,880 15 60
System Under Test
Shared Hardware
Shared Hardware
Enclosure: H3C UniServer B16000
Form Factor: 12U
Power Supply Quantity and Rating (W): 3 x 3000
Power Supply Details: DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch: 1
Network Switch Details: H3C S5500 Series
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 15
Comment: SUT
Hardware per Node
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 16, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-SUT101 5,693,298
WIN-SUT102 5,686,032
WIN-SUT103 5,656,141
WIN-SUT104 5,665,875
WIN-SUT105 5,674,040
WIN-SUT106 5,702,943
WIN-SUT107 5,683,543
WIN-SUT108 5,681,842
WIN-SUT109 5,694,665
WIN-SUT110 5,694,644
WIN-SUT111 5,702,235
WIN-SUT112 5,715,288
WIN-SUT113 5,694,197
WIN-SUT114 5,690,798
WIN-SUT115 5,701,276
ssj_ops@100% 85,336,817
ssj_ops@100% per Host 5,689,121
ssj_ops@100% per JVM 1,422,280

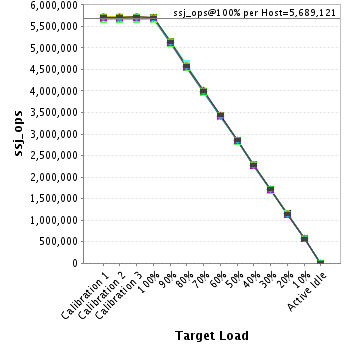

Graph of per-host results
Host 'WIN-SUT101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,707,352
Calibration 2     5,695,888
Calibration 3     5,704,285
ssj_ops@calibrated=5,700,087
100% 99.9% 5,700,087 5,693,298
90% 90.2% 5,130,078 5,140,822
80% 79.9% 4,560,069 4,555,175
70% 69.9% 3,990,061 3,982,769
60% 60.0% 3,420,052 3,419,894
50% 49.9% 2,850,043 2,845,784
40% 40.0% 2,280,035 2,278,831
30% 30.0% 1,710,026 1,711,752
20% 20.0% 1,140,017 1,140,856
10% 10.0% 570,009 571,503
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,708,817
Calibration 2     5,703,681
Calibration 3     5,714,864
ssj_ops@calibrated=5,709,272
100% 99.6% 5,709,272 5,686,032
90% 90.0% 5,138,345 5,137,299
80% 80.1% 4,567,418 4,573,540
70% 69.9% 3,996,491 3,990,417
60% 59.9% 3,425,563 3,420,835
50% 50.0% 2,854,636 2,853,530
40% 39.9% 2,283,709 2,278,467
30% 30.0% 1,712,782 1,711,056
20% 19.9% 1,141,854 1,137,679
10% 10.0% 570,927 572,270
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,668,384
Calibration 2     5,661,127
Calibration 3     5,670,479
ssj_ops@calibrated=5,665,803
100% 99.8% 5,665,803 5,656,141
90% 89.9% 5,099,223 5,094,266
80% 80.0% 4,532,642 4,534,097
70% 69.9% 3,966,062 3,961,879
60% 60.0% 3,399,482 3,396,761
50% 50.0% 2,832,901 2,831,735
40% 40.0% 2,266,321 2,264,774
30% 30.0% 1,699,741 1,700,746
20% 20.0% 1,133,161 1,134,996
10% 10.0% 566,580 566,695
Active Idle   0 0

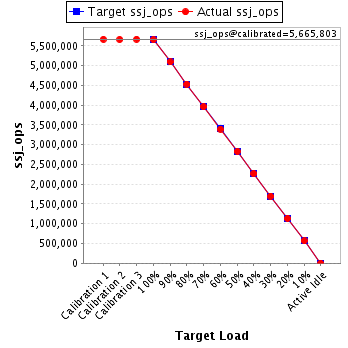

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,689,507
Calibration 2     5,681,089
Calibration 3     5,696,030
ssj_ops@calibrated=5,688,559
100% 99.6% 5,688,559 5,665,875
90% 90.1% 5,119,704 5,123,405
80% 80.2% 4,550,848 4,559,978
70% 69.9% 3,981,992 3,976,007
60% 60.0% 3,413,136 3,413,883
50% 50.1% 2,844,280 2,850,992
40% 39.9% 2,275,424 2,272,483
30% 30.1% 1,706,568 1,710,488
20% 20.0% 1,137,712 1,135,595
10% 10.0% 568,856 568,936
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,683,840
Calibration 2     5,673,523
Calibration 3     5,685,148
ssj_ops@calibrated=5,679,335
100% 99.9% 5,679,335 5,674,040
90% 89.9% 5,111,402 5,108,234
80% 79.8% 4,543,468 4,534,557
70% 70.0% 3,975,535 3,975,720
60% 60.0% 3,407,601 3,408,820
50% 50.1% 2,839,668 2,842,845
40% 40.0% 2,271,734 2,273,297
30% 30.0% 1,703,801 1,700,988
20% 20.0% 1,135,867 1,136,445
10% 10.0% 567,934 566,499
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,439
Calibration 2     5,703,579
Calibration 3     5,715,792
ssj_ops@calibrated=5,709,686
100% 99.9% 5,709,686 5,702,943
90% 90.2% 5,138,717 5,148,067
80% 81.0% 4,567,748 4,626,382
70% 70.0% 3,996,780 3,994,064
60% 60.0% 3,425,811 3,423,393
50% 50.0% 2,854,843 2,857,674
40% 40.0% 2,283,874 2,284,722
30% 29.9% 1,712,906 1,709,290
20% 20.0% 1,141,937 1,144,146
10% 10.0% 570,969 571,848
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,696,848
Calibration 2     5,686,267
Calibration 3     5,693,702
ssj_ops@calibrated=5,689,985
100% 99.9% 5,689,985 5,683,543
90% 89.9% 5,120,986 5,117,788
80% 80.3% 4,551,988 4,569,928
70% 70.0% 3,982,989 3,983,791
60% 60.0% 3,413,991 3,412,149
50% 50.0% 2,844,992 2,846,776
40% 40.1% 2,275,994 2,280,142
30% 30.0% 1,706,995 1,708,474
20% 20.0% 1,137,997 1,135,712
10% 10.0% 568,998 567,242
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,687,530
Calibration 2     5,686,884
Calibration 3     5,699,749
ssj_ops@calibrated=5,693,316
100% 99.8% 5,693,316 5,681,842
90% 90.1% 5,123,985 5,129,901
80% 79.9% 4,554,653 4,550,420
70% 70.0% 3,985,321 3,987,128
60% 60.0% 3,415,990 3,414,915
50% 50.0% 2,846,658 2,845,618
40% 40.1% 2,277,327 2,281,266
30% 30.0% 1,707,995 1,709,017
20% 20.1% 1,138,663 1,141,912
10% 10.0% 569,332 568,471
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,830
Calibration 2     5,700,950
Calibration 3     5,710,714
ssj_ops@calibrated=5,705,832
100% 99.8% 5,705,832 5,694,665
90% 90.0% 5,135,249 5,136,163
80% 80.0% 4,564,665 4,566,712
70% 70.1% 3,994,082 3,997,918
60% 60.0% 3,423,499 3,423,741
50% 50.0% 2,852,916 2,853,646
40% 40.0% 2,282,333 2,283,618
30% 30.0% 1,711,750 1,709,437
20% 20.0% 1,141,166 1,141,200
10% 10.0% 570,583 569,208
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,715,346
Calibration 2     5,702,098
Calibration 3     5,708,613
ssj_ops@calibrated=5,705,356
100% 99.8% 5,705,356 5,694,644
90% 89.8% 5,134,820 5,125,911
80% 80.0% 4,564,284 4,561,446
70% 70.0% 3,993,749 3,994,074
60% 59.9% 3,423,213 3,418,076
50% 50.0% 2,852,678 2,851,899
40% 40.0% 2,282,142 2,280,732
30% 30.0% 1,711,607 1,710,915
20% 20.1% 1,141,071 1,145,982
10% 10.0% 570,536 572,053
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,709,376
Calibration 2     5,706,071
Calibration 3     5,715,041
ssj_ops@calibrated=5,710,556
100% 99.9% 5,710,556 5,702,235
90% 90.0% 5,139,500 5,140,570
80% 80.1% 4,568,445 4,572,910
70% 70.0% 3,997,389 3,997,814
60% 60.0% 3,426,334 3,427,694
50% 50.0% 2,855,278 2,857,549
40% 40.0% 2,284,222 2,282,537
30% 30.0% 1,713,167 1,715,083
20% 20.0% 1,142,111 1,140,480
10% 10.0% 571,056 569,560
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,726,264
Calibration 2     5,719,672
Calibration 3     5,732,483
ssj_ops@calibrated=5,726,077
100% 99.8% 5,726,077 5,715,288
90% 89.9% 5,153,470 5,146,851
80% 80.1% 4,580,862 4,584,358
70% 70.1% 4,008,254 4,012,315
60% 60.1% 3,435,646 3,438,758
50% 50.0% 2,863,039 2,861,320
40% 40.1% 2,290,431 2,298,059
30% 30.0% 1,717,823 1,719,796
20% 20.1% 1,145,215 1,148,379
10% 10.0% 572,608 575,355
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,708,283
Calibration 2     5,695,740
Calibration 3     5,714,792
ssj_ops@calibrated=5,705,266
100% 99.8% 5,705,266 5,694,197
90% 89.7% 5,134,739 5,117,128
80% 80.0% 4,564,213 4,561,497
70% 70.1% 3,993,686 4,001,909
60% 60.0% 3,423,160 3,422,049
50% 50.0% 2,852,633 2,854,901
40% 39.8% 2,282,106 2,271,821
30% 30.0% 1,711,580 1,709,050
20% 20.0% 1,141,053 1,141,673
10% 9.9% 570,527 565,736
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,695,509
Calibration 2     5,689,887
Calibration 3     5,701,871
ssj_ops@calibrated=5,695,879
100% 99.9% 5,695,879 5,690,798
90% 89.9% 5,126,291 5,119,958
80% 80.1% 4,556,703 4,562,291
70% 70.0% 3,987,115 3,984,356
60% 59.9% 3,417,527 3,413,712
50% 50.1% 2,847,939 2,854,248
40% 39.9% 2,278,352 2,275,270
30% 30.1% 1,708,764 1,711,853
20% 20.0% 1,139,176 1,136,674
10% 10.0% 569,588 570,318
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,716,969
Calibration 2     5,709,729
Calibration 3     5,717,476
ssj_ops@calibrated=5,713,602
100% 99.8% 5,713,602 5,701,276
90% 90.1% 5,142,242 5,146,392
80% 80.0% 4,570,882 4,569,025
70% 70.1% 3,999,522 4,003,282
60% 60.1% 3,428,161 3,432,116
50% 50.1% 2,856,801 2,860,173
40% 40.1% 2,285,441 2,291,589
30% 30.0% 1,714,081 1,715,590
20% 20.0% 1,142,720 1,140,871
10% 10.0% 571,360 570,656
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
