New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 74,057,576
ssj_ops@100% per Host = 5,696,737
ssj_ops@100% per JVM = 1,424,184
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,136,541
Calibration 2     74,081,680
Calibration 3     74,217,492
ssj_ops@calibrated=74,149,586
100% 99.9% 74,149,586 74,057,576
90% 90.0% 66,734,628 66,724,602
80% 80.0% 59,319,669 59,283,890
70% 70.0% 51,904,710 51,877,941
60% 60.0% 44,489,752 44,504,058
50% 50.0% 37,074,793 37,061,255
40% 40.0% 29,659,834 29,670,184
30% 30.0% 22,244,876 22,238,319
20% 20.0% 14,829,917 14,828,197
10% 10.0% 7,414,959 7,414,036
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
13 26 728 1,456 2,496 13 52
System Under Test
Shared Hardware
Shared Hardware
Enclosure: H3C UniServer B16000
Form Factor: 12U
Power Supply Quantity and Rating (W): 3 x 3000
Power Supply Details: DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch: 1
Network Switch Details: H3C S5500 Series
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 13
Comment: SUT
Hardware per Node
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-SUT101 5,693,212
WIN-SUT102 5,717,954
WIN-SUT103 5,717,866
WIN-SUT104 5,691,537
WIN-SUT105 5,684,737
WIN-SUT106 5,679,637
WIN-SUT107 5,699,896
WIN-SUT108 5,691,201
WIN-SUT109 5,693,270
WIN-SUT110 5,690,830
WIN-SUT111 5,702,044
WIN-SUT112 5,688,403
WIN-SUT113 5,706,990
ssj_ops@100% 74,057,576
ssj_ops@100% per Host 5,696,737
ssj_ops@100% per JVM 1,424,184

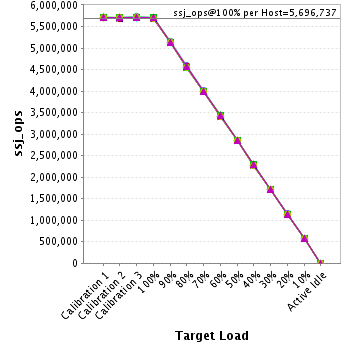

Graph of per-host results
Host 'WIN-SUT101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,700,670
Calibration 2     5,698,390
Calibration 3     5,704,582
ssj_ops@calibrated=5,701,486
100% 99.9% 5,701,486 5,693,212
90% 89.9% 5,131,338 5,125,181
80% 80.0% 4,561,189 4,559,169
70% 70.1% 3,991,040 3,994,280
60% 60.0% 3,420,892 3,421,221
50% 49.9% 2,850,743 2,844,417
40% 40.0% 2,280,594 2,283,104
30% 30.0% 1,710,446 1,708,890
20% 19.9% 1,140,297 1,136,509
10% 10.0% 570,149 571,593
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,716,640
Calibration 2     5,715,503
Calibration 3     5,736,367
ssj_ops@calibrated=5,725,935
100% 99.9% 5,725,935 5,717,954
90% 90.0% 5,153,342 5,153,306
80% 80.1% 4,580,748 4,587,746
70% 70.0% 4,008,155 4,006,482
60% 60.0% 3,435,561 3,438,229
50% 50.0% 2,862,968 2,861,098
40% 40.0% 2,290,374 2,291,915
30% 30.0% 1,717,781 1,715,494
20% 20.0% 1,145,187 1,147,710
10% 10.0% 572,594 574,612
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,725,882
Calibration 2     5,715,078
Calibration 3     5,729,136
ssj_ops@calibrated=5,722,107
100% 99.9% 5,722,107 5,717,866
90% 90.1% 5,149,897 5,154,384
80% 80.1% 4,577,686 4,582,246
70% 69.9% 4,005,475 4,001,512
60% 60.2% 3,433,264 3,446,321
50% 50.0% 2,861,054 2,863,458
40% 40.0% 2,288,843 2,287,577
30% 29.9% 1,716,632 1,713,754
20% 20.0% 1,144,421 1,143,316
10% 9.9% 572,211 568,917
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,695,810
Calibration 2     5,691,160
Calibration 3     5,698,959
ssj_ops@calibrated=5,695,060
100% 99.9% 5,695,060 5,691,537
90% 90.0% 5,125,554 5,123,149
80% 80.0% 4,556,048 4,555,401
70% 69.9% 3,986,542 3,980,277
60% 60.0% 3,417,036 3,415,797
50% 49.9% 2,847,530 2,843,704
40% 40.0% 2,278,024 2,279,495
30% 30.0% 1,708,518 1,708,230
20% 20.0% 1,139,012 1,136,787
10% 10.0% 569,506 569,260
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,695,409
Calibration 2     5,684,134
Calibration 3     5,700,846
ssj_ops@calibrated=5,692,490
100% 99.9% 5,692,490 5,684,737
90% 89.9% 5,123,241 5,118,766
80% 79.9% 4,553,992 4,547,566
70% 70.0% 3,984,743 3,982,747
60% 60.0% 3,415,494 3,417,683
50% 50.0% 2,846,245 2,846,523
40% 40.1% 2,276,996 2,279,893
30% 30.0% 1,707,747 1,705,402
20% 20.0% 1,138,498 1,138,704
10% 10.0% 569,249 569,089
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,690,370
Calibration 2     5,687,314
Calibration 3     5,697,649
ssj_ops@calibrated=5,692,482
100% 99.8% 5,692,482 5,679,637
90% 89.9% 5,123,234 5,118,503
80% 79.9% 4,553,986 4,549,203
70% 70.0% 3,984,737 3,982,344
60% 60.0% 3,415,489 3,415,744
50% 50.1% 2,846,241 2,850,441
40% 40.0% 2,276,993 2,279,538
30% 30.0% 1,707,745 1,708,667
20% 20.0% 1,138,496 1,136,329
10% 10.0% 569,248 570,427
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,704,307
Calibration 2     5,697,193
Calibration 3     5,708,815
ssj_ops@calibrated=5,703,004
100% 99.9% 5,703,004 5,699,896
90% 90.0% 5,132,704 5,131,055
80% 80.0% 4,562,403 4,562,922
70% 70.0% 3,992,103 3,992,206
60% 60.0% 3,421,802 3,422,836
50% 49.9% 2,851,502 2,847,369
40% 40.0% 2,281,202 2,281,377
30% 30.0% 1,710,901 1,712,727
20% 20.0% 1,140,601 1,140,617
10% 10.0% 570,300 570,568
Active Idle   0 0

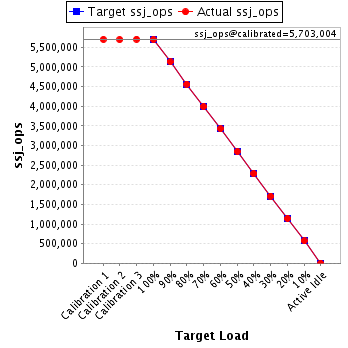

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,700,571
Calibration 2     5,697,817
Calibration 3     5,705,664
ssj_ops@calibrated=5,701,741
100% 99.8% 5,701,741 5,691,201
90% 90.0% 5,131,567 5,134,040
80% 79.8% 4,561,393 4,549,786
70% 69.9% 3,991,219 3,984,790
60% 60.0% 3,421,044 3,419,482
50% 50.0% 2,850,870 2,849,312
40% 40.0% 2,280,696 2,279,335
30% 30.0% 1,710,522 1,712,338
20% 20.0% 1,140,348 1,140,539
10% 10.0% 570,174 569,770
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,698,189
Calibration 2     5,693,301
Calibration 3     5,701,050
ssj_ops@calibrated=5,697,176
100% 99.9% 5,697,176 5,693,270
90% 90.1% 5,127,458 5,134,090
80% 80.0% 4,557,741 4,559,689
70% 69.9% 3,988,023 3,981,952
60% 60.0% 3,418,305 3,417,948
50% 49.9% 2,848,588 2,843,478
40% 40.0% 2,278,870 2,277,410
30% 30.0% 1,709,153 1,707,866
20% 20.0% 1,139,435 1,140,401
10% 10.0% 569,718 568,673
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,698,861
Calibration 2     5,694,919
Calibration 3     5,700,146
ssj_ops@calibrated=5,697,533
100% 99.9% 5,697,533 5,690,830
90% 90.0% 5,127,779 5,128,053
80% 79.9% 4,558,026 4,553,220
70% 70.1% 3,988,273 3,992,019
60% 59.7% 3,418,520 3,402,215
50% 50.1% 2,848,766 2,851,716
40% 40.0% 2,279,013 2,279,728
30% 30.0% 1,709,260 1,707,011
20% 20.0% 1,139,507 1,137,692
10% 10.0% 569,753 570,338
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,699,686
Calibration 2     5,699,396
Calibration 3     5,711,365
ssj_ops@calibrated=5,705,381
100% 99.9% 5,705,381 5,702,044
90% 90.0% 5,134,842 5,137,181
80% 79.7% 4,564,304 4,548,233
70% 70.0% 3,993,766 3,991,423
60% 60.1% 3,423,228 3,427,068
50% 49.9% 2,852,690 2,848,134
40% 40.1% 2,282,152 2,286,903
30% 30.0% 1,711,614 1,710,292
20% 20.0% 1,141,076 1,142,382
10% 10.0% 570,538 570,510
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,701,163
Calibration 2     5,698,683
Calibration 3     5,707,861
ssj_ops@calibrated=5,703,272
100% 99.7% 5,703,272 5,688,403
90% 90.0% 5,132,945 5,133,014
80% 79.9% 4,562,618 4,558,016
70% 69.9% 3,992,291 3,987,147
60% 60.0% 3,421,963 3,420,531
50% 50.1% 2,851,636 2,857,273
40% 40.0% 2,281,309 2,280,802
30% 30.0% 1,710,982 1,711,176
20% 20.1% 1,140,654 1,144,126
10% 10.0% 570,327 570,077
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,708,983
Calibration 2     5,708,791
Calibration 3     5,715,049
ssj_ops@calibrated=5,711,920
100% 99.9% 5,711,920 5,706,990
90% 89.9% 5,140,728 5,133,878
80% 80.0% 4,569,536 4,570,693
70% 70.0% 3,998,344 4,000,762
60% 60.2% 3,427,152 3,438,981
50% 50.0% 2,855,960 2,854,330
40% 40.0% 2,284,768 2,283,107
30% 30.1% 1,713,576 1,716,473
20% 20.0% 1,142,384 1,143,086
10% 10.0% 571,192 570,202
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
