SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR850 | SPECpower_ssj2008 = 13,154 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Taipei, Taiwan | Test Date: | May 7, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Jun-2019 | Publication: | Jun 5, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

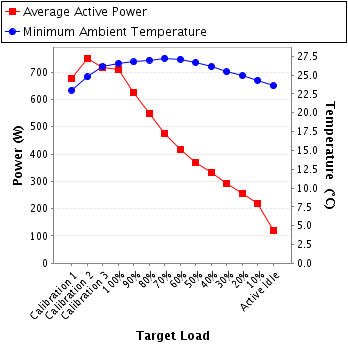

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 678 | 23.0 |
| Calibration 2 | 751 | 24.8 |
| Calibration 3 | 715 | 26.1 |
| 100% | 711 | 26.6 |
| 90% | 625 | 26.8 |
| 80% | 547 | 27.0 |
| 70% | 477 | 27.2 |
| 60% | 418 | 27.1 |
| 50% | 370 | 26.7 |
| 40% | 331 | 26.1 |
| 30% | 294 | 25.4 |
| 20% | 256 | 24.9 |
| 10% | 217 | 24.3 |
| Active Idle | 119 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 18-07-BAC-578-02 |
| Date of Calibration: | 30-Jul-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |

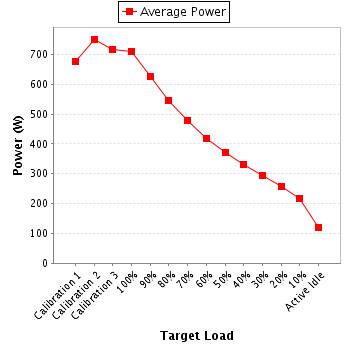

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 3.25 | 5.0 | 0.997 | 678 | 0.4% |
| Calibration 2 | 210 | 300.0 | 3.58 | 5.0 | 0.997 | 751 | 0.4% |
| Calibration 3 | 210 | 300.0 | 3.41 | 5.0 | 0.997 | 715 | 0.4% |
| 100% | 210 | 300.0 | 3.39 | 5.0 | 0.997 | 711 | 0.4% |
| 90% | 210 | 300.0 | 2.98 | 5.0 | 0.997 | 625 | 0.4% |
| 80% | 211 | 300.0 | 2.61 | 5.0 | 0.996 | 547 | 0.4% |
| 70% | 211 | 300.0 | 2.28 | 5.0 | 0.994 | 477 | 0.5% |
| 60% | 211 | 300.0 | 1.99 | 2.0 | 0.994 | 418 | 0.3% |
| 50% | 211 | 300.0 | 1.77 | 2.0 | 0.992 | 370 | 0.3% |
| 40% | 211 | 300.0 | 1.58 | 2.0 | 0.991 | 331 | 0.4% |
| 30% | 211 | 300.0 | 1.41 | 2.0 | 0.988 | 294 | 0.4% |
| 20% | 211 | 300.0 | 1.23 | 2.0 | 0.983 | 256 | 0.4% |
| 10% | 211 | 300.0 | 1.05 | 1.0 | 0.977 | 217 | 0.3% |
| Active Idle | 212 | 300.0 | 0.619 | 1.0 | 0.917 | 119 | 0.5% |
