SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX1320 M4 | SPECpower_ssj2008 = 11,089 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 26, 2019 |
| Hardware Availability: | Mar-2019 | Software Availability: | Dec-2018 | Publication: | Jun 5, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

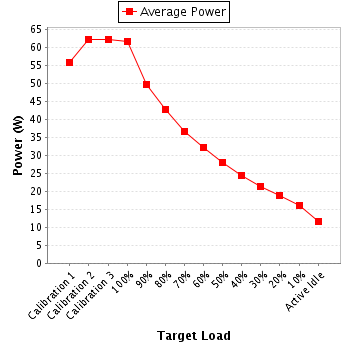

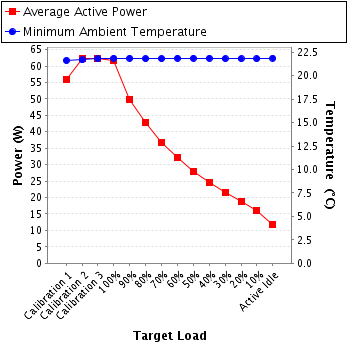

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 55.9 | 21.6 |
| Calibration 2 | 62.4 | 21.7 |
| Calibration 3 | 62.4 | 21.8 |
| 100% | 61.8 | 21.9 |
| 90% | 49.8 | 21.9 |
| 80% | 42.8 | 21.8 |
| 70% | 36.8 | 21.8 |
| 60% | 32.3 | 21.9 |
| 50% | 27.9 | 21.9 |
| 40% | 24.4 | 21.9 |
| 30% | 21.4 | 21.8 |
| 20% | 18.9 | 21.8 |
| 10% | 16.2 | 21.8 |
| Active Idle | 11.7 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400086-1901 |
| Date of Calibration: | 30-Jan-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 0.332 | 1.0 | 0.818 | 55.9 | 0.5% |
| Calibration 2 | 205 | 300.0 | 0.355 | 1.0 | 0.856 | 62.4 | 0.4% |
| Calibration 3 | 207 | 300.0 | 0.353 | 1.0 | 0.853 | 62.4 | 0.4% |
| 100% | 207 | 300.0 | 0.348 | 1.0 | 0.857 | 61.8 | 0.4% |
| 90% | 207 | 300.0 | 0.300 | 1.0 | 0.802 | 49.8 | 0.5% |
| 80% | 207 | 300.0 | 0.273 | 1.0 | 0.756 | 42.8 | 0.5% |
| 70% | 207 | 300.0 | 0.245 | 1.0 | 0.725 | 36.8 | 0.6% |
| 60% | 208 | 300.0 | 0.224 | 1.0 | 0.692 | 32.3 | 0.7% |
| 50% | 206 | 300.0 | 0.216 | 1.0 | 0.629 | 27.9 | 0.8% |
| 40% | 206 | 300.0 | 0.217 | 1.0 | 0.544 | 24.4 | 0.9% |
| 30% | 207 | 300.0 | 0.211 | 0.5 | 0.492 | 21.4 | 0.6% |
| 20% | 207 | 300.0 | 0.201 | 0.5 | 0.456 | 18.9 | 0.7% |
| 10% | 207 | 300.0 | 0.187 | 0.5 | 0.417 | 16.2 | 0.8% |
| Active Idle | 204 | 300.0 | 0.150 | 0.2 | 0.382 | 11.7 | 0.6% |
