New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 51,097,569
ssj_ops@100% per Host = 5,677,508
ssj_ops@100% per JVM = 1,419,377
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 6, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     51,229,359
Calibration 2     51,229,160
Calibration 3     51,301,750
ssj_ops@calibrated=51,265,455
100% 99.7% 51,265,455 51,097,569
90% 90.0% 46,138,909 46,124,756
80% 80.0% 41,012,364 41,006,754
70% 70.0% 35,885,818 35,889,614
60% 60.0% 30,759,273 30,747,979
50% 50.0% 25,632,727 25,638,298
40% 40.0% 20,506,182 20,504,752
30% 30.0% 15,379,636 15,381,039
20% 20.0% 10,253,091 10,250,536
10% 10.0% 5,126,545 5,126,372
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
9 18 504 1,008 1,728 9 36
System Under Test
Shared Hardware
Shared Hardware
Enclosure: H3C UniServer B16000
Form Factor: 12U
Power Supply Quantity and Rating (W): 2 x 3000
Power Supply Details: DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch: 1
Network Switch Details: H3C S5500 Series
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware per Node
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 05, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-SUT101 5,695,434
WIN-SUT102 5,667,866
WIN-SUT103 5,658,232
WIN-SUT104 5,679,997
WIN-SUT105 5,685,703
WIN-SUT106 5,669,217
WIN-SUT107 5,707,910
WIN-SUT108 5,668,320
WIN-SUT109 5,664,889
ssj_ops@100% 51,097,569
ssj_ops@100% per Host 5,677,508
ssj_ops@100% per JVM 1,419,377
Graph of per-host results
Host 'WIN-SUT101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,701,455
Calibration 2     5,704,752
Calibration 3     5,715,040
ssj_ops@calibrated=5,709,896
100% 99.7% 5,709,896 5,695,434
90% 89.9% 5,138,906 5,133,434
80% 80.0% 4,567,916 4,567,866
70% 70.1% 3,996,927 4,000,875
60% 60.0% 3,425,937 3,426,611
50% 50.1% 2,854,948 2,860,846
40% 39.9% 2,283,958 2,278,157
30% 30.0% 1,712,969 1,715,629
20% 20.0% 1,141,979 1,139,924
10% 10.0% 570,990 571,364
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,682,287
Calibration 2     5,683,387
Calibration 3     5,691,894
ssj_ops@calibrated=5,687,640
100% 99.7% 5,687,640 5,667,866
90% 90.0% 5,118,876 5,120,146
80% 80.1% 4,550,112 4,554,004
70% 70.0% 3,981,348 3,979,051
60% 60.0% 3,412,584 3,411,685
50% 50.1% 2,843,820 2,850,589
40% 40.1% 2,275,056 2,280,974
30% 30.0% 1,706,292 1,704,871
20% 20.0% 1,137,528 1,139,033
10% 10.0% 568,764 569,479
Active Idle   0 0

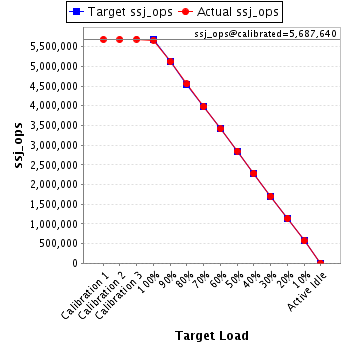

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,670,574
Calibration 2     5,675,116
Calibration 3     5,674,530
ssj_ops@calibrated=5,674,823
100% 99.7% 5,674,823 5,658,232
90% 90.1% 5,107,341 5,113,132
80% 80.0% 4,539,859 4,541,785
70% 70.0% 3,972,376 3,969,785
60% 59.9% 3,404,894 3,400,729
50% 49.9% 2,837,412 2,831,537
40% 39.9% 2,269,929 2,264,290
30% 30.0% 1,702,447 1,704,202
20% 20.0% 1,134,965 1,135,604
10% 10.0% 567,482 568,139
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,688,813
Calibration 2     5,695,336
Calibration 3     5,699,911
ssj_ops@calibrated=5,697,623
100% 99.7% 5,697,623 5,679,997
90% 89.9% 5,127,861 5,123,173
80% 80.0% 4,558,099 4,557,895
70% 69.8% 3,988,336 3,979,685
60% 59.9% 3,418,574 3,412,697
50% 50.0% 2,848,812 2,849,664
40% 40.0% 2,279,049 2,281,362
30% 30.0% 1,709,287 1,708,544
20% 20.0% 1,139,525 1,137,704
10% 10.0% 569,762 568,801
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,705,207
Calibration 2     5,706,213
Calibration 3     5,712,286
ssj_ops@calibrated=5,709,249
100% 99.6% 5,709,249 5,685,703
90% 90.0% 5,138,324 5,137,018
80% 79.9% 4,567,399 4,564,241
70% 70.1% 3,996,475 4,000,291
60% 59.9% 3,425,550 3,422,309
50% 50.0% 2,854,625 2,855,443
40% 40.0% 2,283,700 2,285,998
30% 30.0% 1,712,775 1,713,423
20% 20.0% 1,141,850 1,140,562
10% 10.0% 570,925 571,356
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,695,746
Calibration 2     5,684,896
Calibration 3     5,692,351
ssj_ops@calibrated=5,688,624
100% 99.7% 5,688,624 5,669,217
90% 90.0% 5,119,761 5,117,576
80% 79.9% 4,550,899 4,547,352
70% 70.1% 3,982,036 3,987,535
60% 60.0% 3,413,174 3,412,043
50% 50.0% 2,844,312 2,844,702
40% 40.0% 2,275,449 2,276,343
30% 30.1% 1,706,587 1,709,489
20% 20.0% 1,137,725 1,137,549
10% 9.9% 568,862 564,593
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,723,959
Calibration 2     5,719,137
Calibration 3     5,739,244
ssj_ops@calibrated=5,729,190
100% 99.6% 5,729,190 5,707,910
90% 90.0% 5,156,271 5,156,389
80% 80.0% 4,583,352 4,583,095
70% 70.0% 4,010,433 4,012,463
60% 60.0% 3,437,514 3,439,061
50% 49.9% 2,864,595 2,861,028
40% 40.0% 2,291,676 2,293,462
30% 30.0% 1,718,757 1,720,059
20% 20.0% 1,145,838 1,148,142
10% 10.0% 572,919 574,048
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,683,097
Calibration 2     5,683,518
Calibration 3     5,689,273
ssj_ops@calibrated=5,686,395
100% 99.7% 5,686,395 5,668,320
90% 89.9% 5,117,756 5,113,572
80% 80.1% 4,549,116 4,553,952
70% 70.0% 3,980,477 3,982,943
60% 60.0% 3,411,837 3,411,145
50% 50.0% 2,843,198 2,843,291
40% 40.0% 2,274,558 2,275,977
30% 29.9% 1,705,919 1,701,466
20% 20.0% 1,137,279 1,135,614
10% 10.0% 568,640 569,307
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,678,219
Calibration 2     5,676,807
Calibration 3     5,687,222
ssj_ops@calibrated=5,682,014
100% 99.7% 5,682,014 5,664,889
90% 89.9% 5,113,813 5,110,316
80% 79.8% 4,545,611 4,536,564
70% 70.0% 3,977,410 3,976,988
60% 60.0% 3,409,209 3,411,700
50% 50.0% 2,841,007 2,841,198
40% 39.9% 2,272,806 2,268,188
30% 30.0% 1,704,604 1,703,357
20% 20.0% 1,136,403 1,136,404
10% 10.0% 568,201 569,284
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
