SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

New H3C Technologies Co., Ltd. H3C UniServer B5700 G3			ssj_ops@100% = 45,487,862 ssj_ops@100% per Host = 5,685,983 ssj_ops@100% per JVM = 1,421,496
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Multi Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	Apr 27, 2019
Hardware Availability:	Jan-2019	Software Availability:	Jan-2019	Publication:	Jun 5, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			45,600,320
Calibration 2			45,575,760
Calibration 3			45,665,575
ssj_ops@calibrated=45,620,668
100%	99.7%	45,620,668	45,487,862
90%	90.0%	41,058,601	41,061,985
80%	80.0%	36,496,534	36,501,538
70%	70.0%	31,934,467	31,924,468
60%	60.0%	27,372,401	27,389,479
50%	50.0%	22,810,334	22,821,979
40%	40.0%	18,248,267	18,249,583
30%	30.0%	13,686,200	13,703,575
20%	20.0%	9,124,134	9,127,341
10%	10.0%	4,562,067	4,564,267
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
8	16	448	896	1,536	8	32

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	H3C UniServer B16000
Form Factor:	12U
Power Supply Quantity and Rating (W):	2 x 3000
Power Supply Details:	DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch:	1
Network Switch Details:	H3C S5500 Series
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Network switch not measured for power

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	8
Comment:	SUT

Hardware per Node
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer B5700 G3
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192.0
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	2.00.25
Management Firmware Version:	UIS-OM 1.00.10
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in April 26, 2019

Boot Firmware Settings

USB Control: All USB Ports Disabled
Internal SD Card Slot: Disabled
SR-IOV Support: Disabled
Intel VT for Directed I/O(VT-d):Disabled
Patrol Scrub:Disabled
Memory Frequency:2400
ENERGY_PERF_BIAS_CFG Mode:Balanced Power
Turbo Mode:Disabled
SNC:Enabled
Hardware Prefetcher:Disabled
Adjacent Cache Prefetch:Disabled
DCU Streamer Prefetcher:Disabled
DCU IP Prefetcher:Disabled
LLC Prefetch:Disabled
XPT Prefetch:Enabled
UPI Link Frequency Select:9.6GT/s
PCH sSATA Configuration:Disabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Host Instance Summary

Host	ssj_ops@100%
WIN-SUT101	5,683,171
WIN-SUT102	5,704,044
WIN-SUT103	5,680,602
WIN-SUT104	5,675,361
WIN-SUT105	5,688,678
WIN-SUT106	5,672,761
WIN-SUT107	5,689,844
WIN-SUT108	5,693,401
ssj_ops@100%	45,487,862
ssj_ops@100% per Host	5,685,983
ssj_ops@100% per JVM	1,421,496

Host 'WIN-SUT101' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,696,425
Calibration 2			5,693,192
Calibration 3			5,703,788
ssj_ops@calibrated=5,698,490
100%	99.7%	5,698,490	5,683,171
90%	89.8%	5,128,641	5,115,873
80%	80.0%	4,558,792	4,558,490
70%	70.0%	3,988,943	3,987,297
60%	60.0%	3,419,094	3,419,371
50%	50.0%	2,849,245	2,849,203
40%	40.0%	2,279,396	2,280,189
30%	30.0%	1,709,547	1,708,332
20%	20.0%	1,139,698	1,138,911
10%	10.0%	569,849	569,908
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-SUT102' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,723,826
Calibration 2			5,715,675
Calibration 3			5,722,333
ssj_ops@calibrated=5,719,004
100%	99.7%	5,719,004	5,704,044
90%	90.1%	5,147,104	5,155,609
80%	80.0%	4,575,203	4,574,779
70%	70.0%	4,003,303	4,000,599
60%	60.0%	3,431,402	3,431,953
50%	50.0%	2,859,502	2,858,969
40%	40.0%	2,287,602	2,289,700
30%	30.1%	1,715,701	1,719,577
20%	20.0%	1,143,801	1,145,987
10%	10.0%	571,900	572,444
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-SUT103' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,703,268
Calibration 2			5,696,629
Calibration 3			5,710,012
ssj_ops@calibrated=5,703,321
100%	99.6%	5,703,321	5,680,602
90%	90.0%	5,132,989	5,133,369
80%	80.0%	4,562,657	4,563,784
70%	70.0%	3,992,325	3,991,777
60%	60.0%	3,421,992	3,424,829
50%	49.9%	2,851,660	2,847,025
40%	40.1%	2,281,328	2,285,910
30%	30.0%	1,710,996	1,712,838
20%	20.0%	1,140,664	1,143,439
10%	10.0%	570,332	571,129
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-SUT104' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,697,249
Calibration 2			5,693,151
Calibration 3			5,701,537
ssj_ops@calibrated=5,697,344
100%	99.6%	5,697,344	5,675,361
90%	90.2%	5,127,610	5,136,264
80%	80.0%	4,557,875	4,558,123
70%	70.0%	3,988,141	3,987,146
60%	60.1%	3,418,406	3,422,050
50%	50.0%	2,848,672	2,850,435
40%	40.0%	2,278,938	2,279,179
30%	30.1%	1,709,203	1,712,285
20%	20.0%	1,139,469	1,139,065
10%	10.0%	569,734	570,853
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-SUT105' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,706,027
Calibration 2			5,699,403
Calibration 3			5,712,203
ssj_ops@calibrated=5,705,803
100%	99.7%	5,705,803	5,688,678
90%	90.0%	5,135,223	5,132,855
80%	80.0%	4,564,642	4,566,488
70%	70.0%	3,994,062	3,991,574
60%	59.9%	3,423,482	3,419,854
50%	50.0%	2,852,902	2,853,057
40%	39.9%	2,282,321	2,277,479
30%	30.0%	1,711,741	1,712,886
20%	19.9%	1,141,161	1,137,546
10%	10.0%	570,580	571,026
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-SUT106' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,686,535
Calibration 2			5,678,109
Calibration 3			5,689,569
ssj_ops@calibrated=5,683,839
100%	99.8%	5,683,839	5,672,761
90%	90.0%	5,115,455	5,117,095
80%	80.1%	4,547,071	4,552,624
70%	70.0%	3,978,687	3,979,649
60%	60.0%	3,410,303	3,410,825
50%	50.1%	2,841,919	2,849,063
40%	40.0%	2,273,536	2,274,675
30%	30.0%	1,705,152	1,706,577
20%	20.0%	1,136,768	1,135,569
10%	10.0%	568,384	566,374
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'WIN-SUT107' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,698,140
Calibration 2			5,700,576
Calibration 3			5,713,376
ssj_ops@calibrated=5,706,976
100%	99.7%	5,706,976	5,689,844
90%	90.0%	5,136,278	5,136,226
80%	79.9%	4,565,581	4,559,247
70%	70.0%	3,994,883	3,994,302
60%	60.1%	3,424,186	3,428,184
50%	50.1%	2,853,488	2,856,615
40%	40.0%	2,282,790	2,283,225
30%	30.1%	1,712,093	1,716,444
20%	20.0%	1,141,395	1,143,876
10%	10.0%	570,698	573,418
Active Idle		0	0

See the Host Performance Report for additional details.

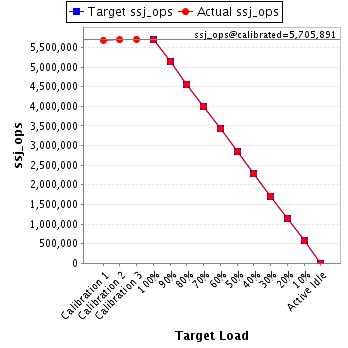

Host 'WIN-SUT108' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,688,850
Calibration 2			5,699,027
Calibration 3			5,712,756
ssj_ops@calibrated=5,705,891
100%	99.8%	5,705,891	5,693,401
90%	90.0%	5,135,302	5,134,694
80%	80.1%	4,564,713	4,568,003
70%	70.0%	3,994,124	3,992,124
60%	60.2%	3,423,535	3,432,413
50%	50.1%	2,852,946	2,857,613
40%	39.9%	2,282,356	2,279,225
30%	30.1%	1,711,767	1,714,636
20%	20.0%	1,141,178	1,142,947
10%	10.0%	570,589	569,115
Active Idle		0	0

See the Host Performance Report for additional details.
