SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY RX2540 M5			SPECpower_ssj2008 = 13,502 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Apr 18, 2019
Hardware Availability:	Jun-2019	Software Availability:	Dec-2018	Publication:	Jun 5, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

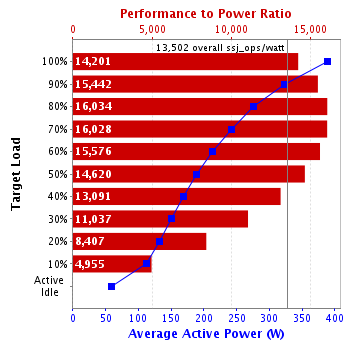

Benchmark Results Summary

Performance			Power	Performance to Power Ratio
Target Load	Actual Load	ssj_ops	Average Active Power (W)	Performance to Power Ratio
100%	99.7%	5,514,468	388	14,201
90%	90.1%	4,979,547	322	15,442
80%	80.0%	4,421,965	276	16,034
70%	70.0%	3,873,008	242	16,028
60%	60.1%	3,321,077	213	15,576
50%	49.9%	2,759,717	189	14,620
40%	40.0%	2,211,380	169	13,091
30%	30.0%	1,660,248	150	11,037
20%	20.1%	1,109,117	132	8,407
10%	10.0%	555,330	112	4,955
Active Idle		0	58.3	0
∑ssj_ops / ∑power =				13,502

System Under Test

Set: 'RX2540M5'

Set Identifier:	RX2540M5
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY RX2540 M5
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L
CPU Characteristics:	28-Core, 2.70GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	Fujitsu Technology Solutions S26113-F615-E10
Disk Drive:	1 x SSD M.2 240GB, S26361-F5706-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity:	chrt -r 1 taskset -c [(0,56),(1,57),(2,58),(3,59),(7,63),(8,64),(9,65),(14,70),(15,71),(16,72),(17,73),(21,77),(22,78),(23,79),(4,60),(5,61),(6,62),(10,66),(11,67),(12,68),(13,69),(18,74),(19,75),(20,76),(24,80),(25,81),(26,82),(27,83),(28,84),(29,85),(30,86),(31,87),(35,91),(36,92),(37,93),(42,98),(43,99),(44,100),(45,101),(49,105),(50,106),(51,107),(32,88),(33,89),(34,90),(38,94),(39,95),(40,96),(41,97),(46,102),(47,103),(48,104),(52,108),(53,109),(54,110),(55,111)] numactl --membind=[0-3]
JVM Instances:	56
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	R1.8.0
Management Firmware Version:	2.00c
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "SATA Controller = Disabled" in BIOS.
Set "Serial Port = Disabled" in BIOS.
Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetch = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "Turbo Mode = Disabled" in BIOS.
Set "Override OS Energy Performance = Enabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "DDR Performance = Power balanced" in BIOS.(effective memory frequency = 2400 MHz)
Set "Autonomous C-state Support = Enabled" in BIOS.
Set "ASPM Support = Auto" in BIOS.
Set "UPI Link Frequency Select = 9.6GT/s" in BIOS.
Set "Uncore Frequency Override = Power balanced" in BIOS.
Set "IMC Interleaving = 1-way" in BIOS.
Set "Package C State limit = C6(Retention)" in BIOS.
Set "HWPM = Natice Mode" in BIOS.
Set "USB Port Control = Enable internal ports only" in BIOS.
Set "Network Stack = Disabled" in BIOS.
Set "LAN Controller = LAN1" in BIOS.

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=disable rcu_nocbs=1-111 nohz_full=1-111 isolcpus=1-111
Benchmark started via ssh
modprobe cpufreq_conservative
cpupower frequency-set --governor conservative
echo -n 98 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo -n 0 > /sys/devices/system/cpu/cpufreq/conservative/ignore_nice_load
sysctl -w kernel.sched_migration_cost_ns=6000
echo -n 97 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/sampling_down_factor
sysctl -w kernel.sched_min_granularity_ns=10000000
echo always > /sys/kernel/mm/transparent_hugepage/enabled
powertop --auto-tune
echo 0 > /proc/sys/kernel/nmi_watchdog
cpupower frequency-set -u 2500MHz
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Controller System

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX2530 M2
CPU Description:	2x Intel Xeon E5-2643 v4
Memory amount (GB):	64

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Measurement Devices

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	Hioki3336
Serial Number:	170130930
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400086-1901
Date of Calibration:	30-Jan-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

Aggregate Electrical and Environmental Data

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	388	22.1
90%	322	22.1
80%	276	22.2
70%	242	22.2
60%	213	22.2
50%	189	22.1
40%	169	22.1
30%	150	22.1
20%	132	21.9
10%	112	21.9
Active Idle	58.3	21.9

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	21.9	11

See the Power/Temperature Details Report for additional details.

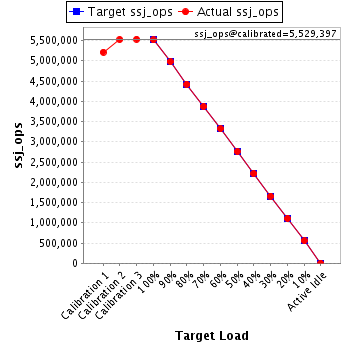

Aggregate Performance Data

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,213,775
Calibration 2			5,525,036
Calibration 3			5,533,758
ssj_ops@calibrated=5,529,397
100%	99.7%	5,529,397	5,514,468
90%	90.1%	4,976,457	4,979,547
80%	80.0%	4,423,518	4,421,965
70%	70.0%	3,870,578	3,873,008
60%	60.1%	3,317,638	3,321,077
50%	49.9%	2,764,698	2,759,717
40%	40.0%	2,211,759	2,211,380
30%	30.0%	1,658,819	1,660,248
20%	20.1%	1,105,879	1,109,117
10%	10.0%	552,940	555,330
Active Idle		0	0

See the Host Performance Report for additional details.
