SPECpower_ssj2008 Host 'WIN-93TNL4BCPT3' Performance Report

SPECpower_ssj2008

Host 'WIN-93TNL4BCPT3' Performance Report

New H3C Technologies Co., Ltd. H3C UniServer R6700 G3			ssj_ops@100% = 11,462,353 ssj_ops@100% per JVM = 1,432,794
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Single Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	Apr 18, 2019
Hardware Availability:	Dec-2018	Software Availability:	Dec-2018	Publication:	May 8, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

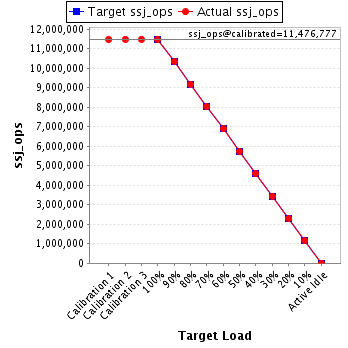

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,469,178
Calibration 2			11,473,630
Calibration 3			11,479,923
ssj_ops@calibrated=11,476,777
100%	99.9%	11,476,777	11,462,353
90%	90.0%	10,329,099	10,327,316
80%	79.9%	9,181,421	9,170,987
70%	70.0%	8,033,744	8,037,797
60%	60.0%	6,886,066	6,887,498
50%	50.0%	5,738,388	5,736,478
40%	40.1%	4,590,711	4,598,985
30%	30.0%	3,443,033	3,444,667
20%	20.0%	2,295,355	2,292,111
10%	10.0%	1,147,678	1,148,634
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Here is a comment for this set.

Hardware
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer R6700 G3
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	16 GB 2Rx8 Hynix registered ECC 2666Mhz: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W):	2 x 850
Power Supply Details:	DELTA PSR850-12A
Disk Drive:	SAMSUNG SSD PM863 240GB SATA 6Gb/s
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Embedded Ethernet Adapter 8086
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn22g -Xms25g -Xmx25g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0XFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	25000
JVM Maximum Heap (MB):	25000
JVM Address Bits:	64
Boot Firmware Version:	2.00.14P02
Management Firmware Version:	1.11.21P01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware Prefetcher: disabled
Adjacent Cache Prefetch: disabled
DCU Streamer Prefetcher: disabled
LLC Prefetch: enabled
Turbo Mode: disabled
SNC: enabled
IMC Interleaving: 1-way Interleave
Page Policy: Adaptive
Local/Remote Threshold: Medium
CPU C6 Report: enabled
HT Technology: enabled
Hardware P-States: disabled
Power Performance Tunning: BIOS Controls EPB
Isoc Mode: enabled
Package C State: No Limit
ENERGY_PERF_BIAS_CFG MODE: Balanced Performance
PCHPcieAspmGlobal: L1 Only
UPI Link Frequency: 9.6GT/S
Memory Frequency: 2400MHz
Intel VT for Directed I/O(VT-D): disabled
Patrol Scrub: disabled
SR-IOV Support: disabled
EIST PSD Function: SW_ANY
Legacy USB Support: disabled
xHCI Hand-off: disabled
USB Mass Storage Driver Support: disabled
Serial Redirection: disabled
SSATA controller: disabled
PCIE DMI Link Frequency: Gen 1 Speed
PCIe Device State: D3HOT
PCH DMI ASPM: ASPM L1

Management Firmware Settings

none

System Under Test Notes

Each JVM instance was bound to 28 logical processors
Using the local security settings console, "lock pages in memory " was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Balanced Plan Minimum processor state set to 0%
Maximum processor state set to 100%
SPECpower_ssj.props input.load_level.number_warehouses set to 224

Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Nov 15, 2018)
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

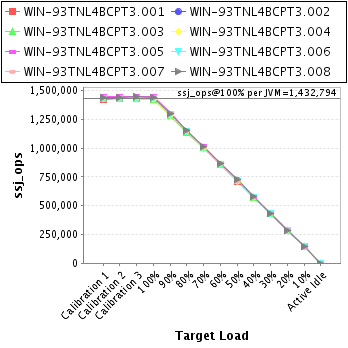

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-93TNL4BCPT3.001	1,424,665
WIN-93TNL4BCPT3.002	1,430,728
WIN-93TNL4BCPT3.003	1,425,296
WIN-93TNL4BCPT3.004	1,424,365
WIN-93TNL4BCPT3.005	1,449,116
WIN-93TNL4BCPT3.006	1,429,522
WIN-93TNL4BCPT3.007	1,436,875
WIN-93TNL4BCPT3.008	1,441,787
ssj_ops@100%	11,462,353
ssj_ops@100% per JVM	1,432,794

JVM 'WIN-93TNL4BCPT3.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,425,273
Calibration 2			1,426,536
Calibration 3			1,427,591
ssj_ops@calibrated=1,427,063
100%	99.8%	1,427,063	1,424,665
90%	89.8%	1,284,357	1,281,963
80%	79.8%	1,141,651	1,139,314
70%	70.2%	998,944	1,001,930
60%	60.1%	856,238	857,083
50%	49.8%	713,532	710,552
40%	40.2%	570,825	573,584
30%	30.0%	428,119	427,809
20%	19.9%	285,413	284,511
10%	10.0%	142,706	143,196
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-93TNL4BCPT3.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,432,617
Calibration 2			1,432,742
Calibration 3			1,430,658
ssj_ops@calibrated=1,431,700
100%	99.9%	1,431,700	1,430,728
90%	89.8%	1,288,530	1,286,200
80%	80.0%	1,145,360	1,145,194
70%	70.1%	1,002,190	1,003,786
60%	60.1%	859,020	860,463
50%	50.2%	715,850	719,422
40%	40.0%	572,680	572,603
30%	30.0%	429,510	429,612
20%	20.0%	286,340	286,844
10%	10.0%	143,170	143,108
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-93TNL4BCPT3.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,426,492
Calibration 2			1,427,203
Calibration 3			1,427,404
ssj_ops@calibrated=1,427,303
100%	99.9%	1,427,303	1,425,296
90%	90.1%	1,284,573	1,285,521
80%	79.8%	1,141,843	1,138,585
70%	70.3%	999,112	1,003,919
60%	60.0%	856,382	856,595
50%	50.1%	713,652	714,870
40%	40.1%	570,921	572,405
30%	30.1%	428,191	429,897
20%	20.0%	285,461	285,512
10%	10.0%	142,730	143,431
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-93TNL4BCPT3.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,428,318
Calibration 2			1,427,686
Calibration 3			1,428,407
ssj_ops@calibrated=1,428,047
100%	99.7%	1,428,047	1,424,365
90%	90.1%	1,285,242	1,286,007
80%	80.1%	1,142,437	1,143,288
70%	69.7%	999,633	995,918
60%	60.0%	856,828	857,343
50%	49.9%	714,023	712,757
40%	39.9%	571,219	570,474
30%	30.1%	428,414	429,237
20%	20.0%	285,609	285,147
10%	10.0%	142,805	142,506
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-93TNL4BCPT3.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,449,850
Calibration 2			1,447,727
Calibration 3			1,450,156
ssj_ops@calibrated=1,448,941
100%	100.0%	1,448,941	1,449,116
90%	90.1%	1,304,047	1,305,254
80%	79.8%	1,159,153	1,155,853
70%	70.1%	1,014,259	1,015,488
60%	60.0%	869,365	869,835
50%	49.9%	724,471	723,703
40%	39.9%	579,577	577,951
30%	30.0%	434,682	434,357
20%	20.0%	289,788	289,081
10%	10.0%	144,894	145,312
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-93TNL4BCPT3.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,206
Calibration 2			1,432,056
Calibration 3			1,430,711
ssj_ops@calibrated=1,431,384
100%	99.9%	1,431,384	1,429,522
90%	90.0%	1,288,245	1,288,904
80%	79.9%	1,145,107	1,143,494
70%	69.8%	1,001,969	999,486
60%	59.9%	858,830	857,825
50%	49.9%	715,692	713,701
40%	40.2%	572,554	575,177
30%	30.1%	429,415	430,529
20%	20.0%	286,277	286,362
10%	10.0%	143,138	143,024
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

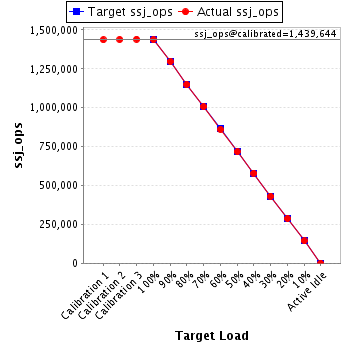

JVM 'WIN-93TNL4BCPT3.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,446
Calibration 2			1,438,486
Calibration 3			1,440,803
ssj_ops@calibrated=1,439,644
100%	99.8%	1,439,644	1,436,875
90%	90.1%	1,295,680	1,297,564
80%	79.8%	1,151,715	1,149,351
70%	69.9%	1,007,751	1,006,696
60%	59.8%	863,787	861,007
50%	49.8%	719,822	716,640
40%	40.2%	575,858	578,982
30%	30.0%	431,893	431,484
20%	19.9%	287,929	286,754
10%	10.0%	143,964	143,940
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

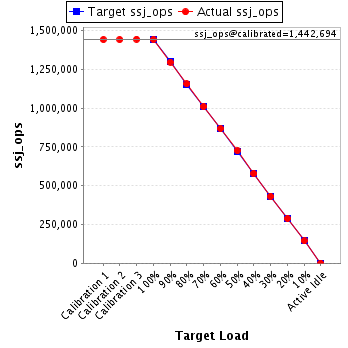

JVM 'WIN-93TNL4BCPT3.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,975
Calibration 2			1,441,195
Calibration 3			1,444,193
ssj_ops@calibrated=1,442,694
100%	99.9%	1,442,694	1,441,787
90%	89.8%	1,298,424	1,295,903
80%	80.1%	1,154,155	1,155,910
70%	70.0%	1,009,886	1,010,574
60%	60.1%	865,616	867,347
50%	50.2%	721,347	724,832
40%	40.1%	577,077	577,809
30%	29.9%	432,808	431,741
20%	20.0%	288,539	287,901
10%	10.0%	144,269	144,117
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
