SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 | SPECpower_ssj2008 = 11,964 overall ssj_ops/watt | ||||
| Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
| Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Apr 18, 2019 |
| Hardware Availability: | Dec-2018 | Software Availability: | Dec-2018 | Publication: | May 8, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

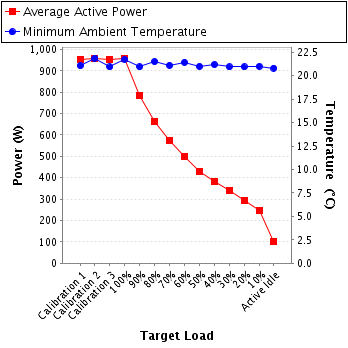

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 953 | 21.1 |
| Calibration 2 | 959 | 21.9 |
| Calibration 3 | 954 | 20.9 |
| 100% | 957 | 21.8 |
| 90% | 787 | 20.9 |
| 80% | 665 | 21.5 |
| 70% | 576 | 21.1 |
| 60% | 497 | 21.4 |
| 50% | 431 | 21.0 |
| 40% | 383 | 21.2 |
| 30% | 339 | 20.9 |
| 20% | 294 | 20.9 |
| 10% | 245 | 21.0 |
| Active Idle | 99.8 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | CHROMA |
| Model: | 66202 |
| Serial Number: | 662025003870 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 2GB18J02050-0001 |
| Date of Calibration: | 20-Apr-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.0-ee285d08-20190201 |
| Setup Description: | Connected to PSU 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | DIGI. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 234 | 300.0 | 4.09 | 20.0 | 0.996 | 953 | 0.7% |
| Calibration 2 | 234 | 300.0 | 4.12 | 20.0 | 0.996 | 959 | 0.7% |
| Calibration 3 | 234 | 300.0 | 4.09 | 20.0 | 0.996 | 954 | 0.7% |
| 100% | 234 | 300.0 | 4.10 | 20.0 | 0.996 | 957 | 0.7% |
| 90% | 234 | 300.0 | 3.38 | 20.0 | 0.994 | 787 | 0.9% |
| 80% | 234 | 300.0 | 2.86 | 2.0 | 0.992 | 665 | 0.2% |
| 70% | 234 | 300.0 | 2.49 | 2.0 | 0.990 | 576 | 0.2% |
| 60% | 234 | 300.0 | 2.15 | 2.0 | 0.989 | 497 | 0.2% |
| 50% | 234 | 300.0 | 1.87 | 2.0 | 0.985 | 431 | 0.2% |
| 40% | 234 | 300.0 | 1.66 | 2.0 | 0.985 | 383 | 0.3% |
| 30% | 234 | 300.0 | 1.48 | 2.0 | 0.978 | 339 | 0.3% |
| 20% | 234 | 300.0 | 1.29 | 2.0 | 0.972 | 294 | 0.3% |
| 10% | 234 | 300.0 | 1.09 | 2.0 | 0.964 | 245 | 0.3% |
| Active Idle | 235 | 300.0 | 0.497 | 2.0 | 0.855 | 99.8 | 0.7% |
