SPECpower_ssj2008

New H3C Technologies Co., Ltd. H3C UniServer R6700 G3			SPECpower_ssj2008 = 12,747 overall ssj_ops/watt
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Single Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	Apr 15, 2019
Hardware Availability:	Dec-2018	Software Availability:	Dec-2018	Publication:	May 8, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer R6700 G3
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	16 GB 2Rx8 Hynix registered ECC 2933Mhz: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W):	2 x 850
Power Supply Details:	DELTA PSR850-12A
Disk Drive:	SAMSUNG SSD PM863 240GB SATA 6Gb/s
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Embedded Ethernet Adapter 8086
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn23g -Xms25g -Xmx25g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0XFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	25000
JVM Maximum Heap (MB):	25000
JVM Address Bits:	64
Boot Firmware Version:	2.00.14P02
Management Firmware Version:	1.11.21P01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Each JVM instance was bound to 28 logical processors
Using the local security settings console, "lock pages in memory " was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Balanced Plan Minimum processor state set to 0%
Maximum processor state set to 100%
SPECpower_ssj.props input.load_level.number_warehouses set to 224

Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Nov 15, 2018)
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	CHROMA
Model:	66202
Serial Number:	662025003870
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	2GB18J02050-0001
Date of Calibration:	20-Apr-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1 and 2

Temperature Sensor temp1
Hardware Vendor:	DIGI.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

None

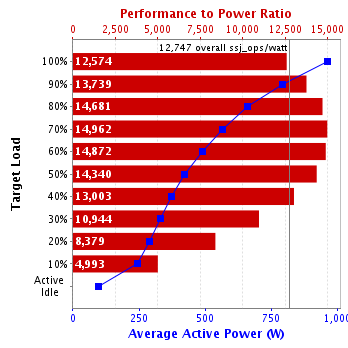

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	963	24.2
90%	793	24.5
80%	659	25.1
70%	566	24.6
60%	489	25.0
50%	422	24.8
40%	372	24.3
30%	332	24.8
20%	289	24.1
10%	242	23.8
Active Idle	95.5	24.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
240V / 50 Hz / 1 phase / 2 wires	23.8	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
