Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,751,844
ssj_ops@100% per JVM = 1,437,961
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,768,377
Calibration 2     5,765,629
Calibration 3     5,773,679
ssj_ops@calibrated=5,769,654
100% 99.7% 5,769,654 5,751,844
90% 90.1% 5,192,689 5,195,656
80% 80.1% 4,615,723 4,619,650
70% 70.1% 4,038,758 4,042,611
60% 60.0% 3,461,793 3,462,278
50% 50.1% 2,884,827 2,892,286
40% 40.0% 2,307,862 2,307,301
30% 30.0% 1,730,896 1,731,896
20% 20.0% 1,153,931 1,154,154
10% 10.0% 576,965 574,246
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 7
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE07.001 1,458,637
NODE07.002 1,432,687
NODE07.003 1,423,794
NODE07.004 1,436,727
ssj_ops@100% 5,751,844
ssj_ops@100% per JVM 1,437,961

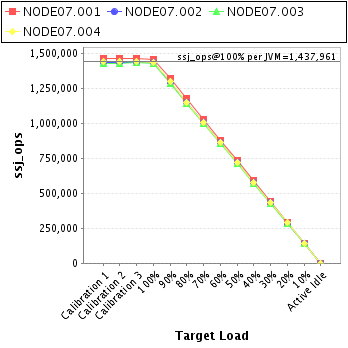

Graph of per-instance results
JVM 'NODE07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,462,713
Calibration 2     1,464,905
Calibration 3     1,464,954
ssj_ops@calibrated=1,464,930
100% 99.6% 1,464,930 1,458,637
90% 90.2% 1,318,437 1,320,853
80% 80.2% 1,171,944 1,174,948
70% 70.2% 1,025,451 1,027,908
60% 59.9% 878,958 877,170
50% 50.1% 732,465 734,357
40% 40.2% 585,972 588,199
30% 29.9% 439,479 438,662
20% 19.9% 292,986 292,009
10% 9.8% 146,493 143,949
Active Idle   0 0

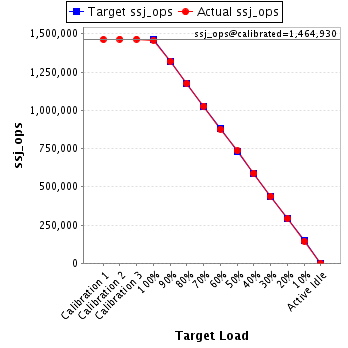

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,629
Calibration 2     1,436,042
Calibration 3     1,437,233
ssj_ops@calibrated=1,436,637
100% 99.7% 1,436,637 1,432,687
90% 90.1% 1,292,974 1,294,199
80% 80.2% 1,149,310 1,151,542
70% 70.0% 1,005,646 1,006,159
60% 60.0% 861,982 861,466
50% 50.2% 718,319 721,309
40% 40.0% 574,655 575,264
30% 30.2% 430,991 433,901
20% 20.0% 287,327 286,771
10% 10.0% 143,664 144,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,660
Calibration 2     1,424,467
Calibration 3     1,430,633
ssj_ops@calibrated=1,427,550
100% 99.7% 1,427,550 1,423,794
90% 89.7% 1,284,795 1,280,901
80% 80.1% 1,142,040 1,142,989
70% 70.1% 999,285 1,000,592
60% 60.2% 856,530 858,776
50% 50.1% 713,775 715,360
40% 39.8% 571,020 568,392
30% 29.9% 428,265 427,222
20% 20.1% 285,510 286,840
10% 10.0% 142,755 143,023
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,376
Calibration 2     1,440,215
Calibration 3     1,440,859
ssj_ops@calibrated=1,440,537
100% 99.7% 1,440,537 1,436,727
90% 90.2% 1,296,483 1,299,703
80% 79.8% 1,152,430 1,150,171
70% 70.0% 1,008,376 1,007,952
60% 60.0% 864,322 864,866
50% 50.1% 720,269 721,260
40% 39.9% 576,215 575,446
30% 30.0% 432,161 432,110
20% 20.0% 288,107 288,533
10% 9.9% 144,054 143,153
Active Idle   0 0

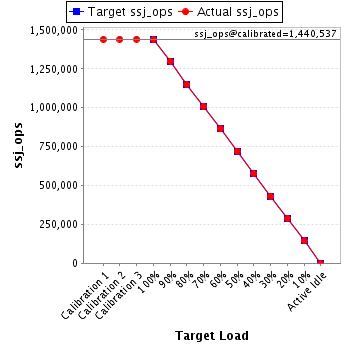

Graph of results
See the JVM Instance Performance Report for additional details.
