Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,739,236
ssj_ops@100% per JVM = 1,434,809
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,756,682
Calibration 2     5,751,645
Calibration 3     5,758,253
ssj_ops@calibrated=5,754,949
100% 99.7% 5,754,949 5,739,236
90% 89.9% 5,179,454 5,175,501
80% 79.8% 4,603,959 4,594,089
70% 70.0% 4,028,464 4,031,093
60% 60.0% 3,452,969 3,450,649
50% 49.8% 2,877,474 2,865,364
40% 40.0% 2,301,979 2,303,566
30% 29.9% 1,726,485 1,722,536
20% 19.9% 1,150,990 1,148,066
10% 10.0% 575,495 576,611
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE05.001 1,433,464
NODE05.002 1,442,809
NODE05.003 1,433,137
NODE05.004 1,429,826
ssj_ops@100% 5,739,236
ssj_ops@100% per JVM 1,434,809

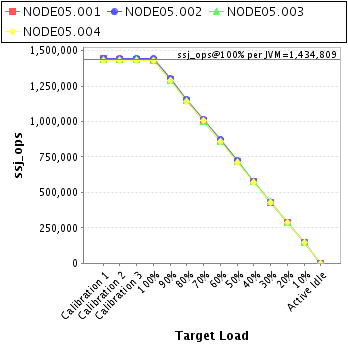

Graph of per-instance results
JVM 'NODE05.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,297
Calibration 2     1,437,564
Calibration 3     1,440,690
ssj_ops@calibrated=1,439,127
100% 99.6% 1,439,127 1,433,464
90% 90.1% 1,295,214 1,297,322
80% 79.7% 1,151,301 1,147,245
70% 70.0% 1,007,389 1,007,726
60% 59.8% 863,476 860,544
50% 49.8% 719,563 717,036
40% 40.1% 575,651 577,709
30% 30.0% 431,738 431,233
20% 20.0% 287,825 287,950
10% 10.0% 143,913 144,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,379
Calibration 2     1,445,806
Calibration 3     1,446,553
ssj_ops@calibrated=1,446,180
100% 99.8% 1,446,180 1,442,809
90% 89.9% 1,301,562 1,299,750
80% 79.9% 1,156,944 1,155,725
70% 70.2% 1,012,326 1,015,937
60% 60.2% 867,708 870,279
50% 49.9% 723,090 722,250
40% 40.0% 578,472 577,821
30% 29.8% 433,854 431,572
20% 20.0% 289,236 289,233
10% 9.9% 144,618 143,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,445
Calibration 2     1,437,216
Calibration 3     1,439,169
ssj_ops@calibrated=1,438,192
100% 99.6% 1,438,192 1,433,137
90% 89.9% 1,294,373 1,292,637
80% 80.0% 1,150,554 1,150,791
70% 69.8% 1,006,735 1,003,375
60% 60.0% 862,915 862,365
50% 49.8% 719,096 716,775
40% 40.0% 575,277 575,392
30% 30.1% 431,458 432,584
20% 19.9% 287,638 286,355
10% 10.1% 143,819 144,963
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE05.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,561
Calibration 2     1,431,059
Calibration 3     1,431,840
ssj_ops@calibrated=1,431,450
100% 99.9% 1,431,450 1,429,826
90% 89.8% 1,288,305 1,285,792
80% 79.7% 1,145,160 1,140,328
70% 70.1% 1,002,015 1,004,055
60% 59.9% 858,870 857,462
50% 49.6% 715,725 709,303
40% 40.0% 572,580 572,644
30% 29.8% 429,435 427,147
20% 19.9% 286,290 284,527
10% 10.0% 143,145 143,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
