Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,764,716
ssj_ops@100% per JVM = 1,441,179
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,788,835
Calibration 2     5,783,846
Calibration 3     5,795,421
ssj_ops@calibrated=5,789,634
100% 99.6% 5,789,634 5,764,716
90% 90.0% 5,210,670 5,213,531
80% 80.0% 4,631,707 4,634,435
70% 70.1% 4,052,744 4,058,912
60% 60.1% 3,473,780 3,476,980
50% 50.0% 2,894,817 2,894,750
40% 40.0% 2,315,854 2,316,951
30% 29.9% 1,736,890 1,733,693
20% 20.0% 1,157,927 1,156,228
10% 10.0% 578,963 579,756
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE04.001 1,431,564
NODE04.002 1,428,072
NODE04.003 1,454,598
NODE04.004 1,450,481
ssj_ops@100% 5,764,716
ssj_ops@100% per JVM 1,441,179

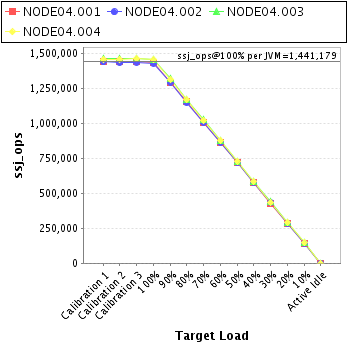

Graph of per-instance results
JVM 'NODE04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,598
Calibration 2     1,435,976
Calibration 3     1,438,809
ssj_ops@calibrated=1,437,392
100% 99.6% 1,437,392 1,431,564
90% 89.9% 1,293,653 1,292,345
80% 80.0% 1,149,914 1,150,596
70% 70.1% 1,006,175 1,007,494
60% 60.1% 862,435 863,629
50% 50.1% 718,696 720,611
40% 40.0% 574,957 574,671
30% 29.9% 431,218 429,936
20% 20.0% 287,478 286,781
10% 10.0% 143,739 143,305
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,999
Calibration 2     1,432,910
Calibration 3     1,435,643
ssj_ops@calibrated=1,434,276
100% 99.6% 1,434,276 1,428,072
90% 90.0% 1,290,849 1,291,386
80% 80.0% 1,147,421 1,148,014
70% 70.1% 1,003,993 1,004,762
60% 60.1% 860,566 862,668
50% 50.0% 717,138 717,619
40% 40.2% 573,711 576,187
30% 30.1% 430,283 431,327
20% 19.8% 286,855 284,045
10% 10.0% 143,428 143,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,459,342
Calibration 2     1,459,898
Calibration 3     1,463,224
ssj_ops@calibrated=1,461,561
100% 99.5% 1,461,561 1,454,598
90% 90.2% 1,315,405 1,318,622
80% 80.1% 1,169,249 1,170,023
70% 70.2% 1,023,093 1,026,254
60% 60.0% 876,937 876,557
50% 49.8% 730,780 727,586
40% 39.9% 584,624 583,063
30% 30.0% 438,468 438,504
20% 20.0% 292,312 291,864
10% 10.0% 146,156 146,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,454,897
Calibration 2     1,455,063
Calibration 3     1,457,745
ssj_ops@calibrated=1,456,404
100% 99.6% 1,456,404 1,450,481
90% 90.0% 1,310,764 1,311,178
80% 80.0% 1,165,123 1,165,803
70% 70.1% 1,019,483 1,020,402
60% 60.0% 873,843 874,126
50% 50.1% 728,202 728,935
40% 40.0% 582,562 583,030
30% 29.8% 436,921 433,926
20% 20.2% 291,281 293,538
10% 10.0% 145,640 146,277
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
