Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,768,461
ssj_ops@100% per JVM = 1,442,115
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 27, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,782,685
Calibration 2     5,780,682
Calibration 3     5,784,897
ssj_ops@calibrated=5,782,789
100% 99.8% 5,782,789 5,768,461
90% 90.0% 5,204,511 5,207,039
80% 79.9% 4,626,232 4,621,279
70% 70.0% 4,047,953 4,047,332
60% 60.0% 3,469,674 3,466,813
50% 50.1% 2,891,395 2,895,604
40% 40.0% 2,313,116 2,313,179
30% 30.0% 1,734,837 1,737,297
20% 20.0% 1,156,558 1,155,331
10% 10.0% 578,279 577,500
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE04.001 1,433,958
NODE04.002 1,444,300
NODE04.003 1,452,119
NODE04.004 1,438,083
ssj_ops@100% 5,768,461
ssj_ops@100% per JVM 1,442,115

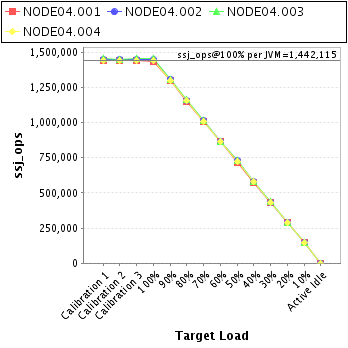

Graph of per-instance results
JVM 'NODE04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,596
Calibration 2     1,441,309
Calibration 3     1,438,055
ssj_ops@calibrated=1,439,682
100% 99.6% 1,439,682 1,433,958
90% 90.0% 1,295,714 1,296,041
80% 79.8% 1,151,745 1,149,125
70% 69.8% 1,007,777 1,004,984
60% 60.2% 863,809 866,068
50% 49.7% 719,841 716,066
40% 40.0% 575,873 575,433
30% 30.1% 431,905 433,341
20% 19.9% 287,936 286,995
10% 10.0% 143,968 144,414
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,010
Calibration 2     1,447,937
Calibration 3     1,447,935
ssj_ops@calibrated=1,447,936
100% 99.7% 1,447,936 1,444,300
90% 90.3% 1,303,143 1,308,127
80% 79.8% 1,158,349 1,155,734
70% 70.1% 1,013,555 1,014,348
60% 59.8% 868,762 866,203
50% 50.2% 723,968 726,968
40% 40.0% 579,174 579,522
30% 30.0% 434,381 434,261
20% 20.1% 289,587 290,651
10% 10.0% 144,794 144,539
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,453,017
Calibration 2     1,450,819
Calibration 3     1,457,001
ssj_ops@calibrated=1,453,910
100% 99.9% 1,453,910 1,452,119
90% 89.8% 1,308,519 1,305,957
80% 79.9% 1,163,128 1,162,261
70% 70.0% 1,017,737 1,017,311
60% 59.7% 872,346 868,401
50% 50.1% 726,955 728,169
40% 39.9% 581,564 580,698
30% 30.2% 436,173 438,593
20% 20.0% 290,782 290,937
10% 9.9% 145,391 144,235
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,062
Calibration 2     1,440,617
Calibration 3     1,441,906
ssj_ops@calibrated=1,441,262
100% 99.8% 1,441,262 1,438,083
90% 90.0% 1,297,136 1,296,914
80% 80.1% 1,153,009 1,154,159
70% 70.1% 1,008,883 1,010,689
60% 60.1% 864,757 866,142
50% 50.3% 720,631 724,401
40% 40.1% 576,505 577,526
30% 29.9% 432,379 431,102
20% 19.9% 288,252 286,748
10% 10.0% 144,126 144,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
