SPECpower_ssj2008

Quanta Computer Inc. QuantaGrid D52BQ-2U			SPECpower_ssj2008 = 13,613 overall ssj_ops/watt
Test Sponsor:	Quanta Computer Inc.	SPEC License #:	9050	Test Method:	Single Node
Tested By:	Quanta Computer Inc.	Test Location:	Taoyuan, TW, R.O.C	Test Date:	Mar 12, 2019
Hardware Availability:	Apr-2019	Software Availability:	Oct-2018	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Quanta Computer Inc.
Model:	QuantaGrid D52BQ-2U
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L 2.70 GHz
CPU Characteristics:	28 core, 2.70GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	96
# and size of DIMM:	12 x 8 GB
Memory Details:	8GB 1Rx8 PC4-2666V-RD1-12-MA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	ARTESYN MC800B6-3-4R-02
Disk Drive:	1 x 240G SATA SSD,Quanta P/N ABSAK240000
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Quanta Ethernet Controller I350-T2, 2-port
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced power plan in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3.9600 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFFFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	3B12
Management Firmware Version:	4.55
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Updates 2K12 R2 KB4462926 Monthly Rollup for mitigation patches

See SUT Notes

Specpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this java version
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
Maximum processor state set to 95%
Display set to turn off after 1 minute
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Protected against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Oct 19, 2018)

Software
Operating System (OS):	Microsoft Windows Server 2012 Datacenter 64-bit
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.7.0_25
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310
Serial Number:	C2PM12064V
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	NML (National Measurement Laboratory)
Accredited by:	Electronics Testing Center,Taiwan
Calibration Label:	Q10680080
Date of Calibration:	16-Apr-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/T
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

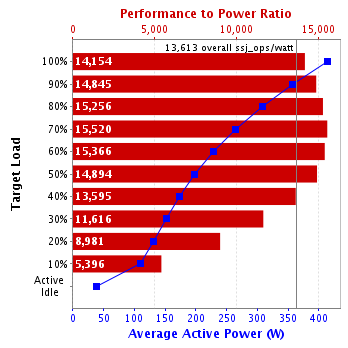

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	414	23.0
90%	356	23.1
80%	309	23.2
70%	264	23.0
60%	229	22.8
50%	197	22.7
40%	173	22.7
30%	152	22.6
20%	131	22.6
10%	110	22.6
Active Idle	37.7	22.5

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	22.5	250

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
