Fujitsu FUJITSU Server PRIMERGY RX2540 M5 ssj_ops@100% = 4,657,126
ssj_ops@100% per JVM = 83,163
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 13, 2019
Hardware Availability: Jun-2019 Software Availability: Oct-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,654,892
Calibration 2     4,663,105
Calibration 3     4,668,376
ssj_ops@calibrated=4,665,740
100% 99.8% 4,665,740 4,657,126
90% 89.9% 4,199,166 4,195,308
80% 80.1% 3,732,592 3,736,211
70% 70.0% 3,266,018 3,265,708
60% 60.0% 2,799,444 2,799,049
50% 49.9% 2,332,870 2,327,926
40% 40.0% 1,866,296 1,864,928
30% 30.0% 1,399,722 1,398,828
20% 20.0% 933,148 930,994
10% 10.0% 466,574 465,123
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX2540 M5'
Set Identifier: RX2540 M5
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2540 M5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.30GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x SSD M. 240GB, S26361-F5706-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Power saver" power plan)
Operating System (OS): Microsoft Windows Server 2016 Standard
OS Version: Version 10.0.14393 Build 14393
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode), version 11
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:AllocatePrefetchInstr=0 -XX:MinJumpTableSize=18 -XX:UseAVX=0
JVM Affinity: start /NODE [0,2] /AFFINTY 0x3, 0xC, 0x30, 0xC0, 0xC000, 0x30000, 0xC0000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0xC0000000000, 0x300000000000, 0xC00000000000 /NODE [1,3] /AFFINTY 0x3, 0xC, 0x30, 0x3000, 0xC000, 0x30000, 0xC0000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0xC0000000000, 0x300000000000, 0xC00000000000
JVM Instances: 56
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.8.0
Management Firmware Version: 2.00c
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4462928 KB4132216
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
Fujitsu.001 81,814
Fujitsu.002 84,970
Fujitsu.003 83,359
Fujitsu.004 82,302
Fujitsu.005 83,305
Fujitsu.006 83,626
Fujitsu.007 83,233
Fujitsu.008 85,349
Fujitsu.009 84,902
Fujitsu.010 83,934
Fujitsu.011 82,614
Fujitsu.012 82,104
Fujitsu.013 80,374
Fujitsu.014 82,488
Fujitsu.015 84,375
Fujitsu.016 83,907
Fujitsu.017 81,145
Fujitsu.018 84,191
Fujitsu.019 82,377
Fujitsu.020 84,430
Fujitsu.021 82,344
Fujitsu.022 83,121
Fujitsu.023 84,142
Fujitsu.024 82,847
Fujitsu.025 80,257
Fujitsu.026 83,773
Fujitsu.027 83,616
Fujitsu.028 83,498
Fujitsu.029 84,497
Fujitsu.030 83,756
Fujitsu.031 82,056
Fujitsu.032 82,747
Fujitsu.033 83,826
Fujitsu.034 84,926
Fujitsu.035 82,964
Fujitsu.036 83,972
Fujitsu.037 80,056
Fujitsu.038 81,836
Fujitsu.039 83,648
Fujitsu.040 84,171
Fujitsu.041 84,466
Fujitsu.042 83,031
Fujitsu.043 81,751
Fujitsu.044 82,413
Fujitsu.045 81,062
Fujitsu.046 82,178
Fujitsu.047 82,050
Fujitsu.048 83,969
Fujitsu.049 85,219
Fujitsu.050 82,769
Fujitsu.051 84,380
Fujitsu.052 82,815
Fujitsu.053 83,616
Fujitsu.054 82,486
Fujitsu.055 83,374
Fujitsu.056 84,698
ssj_ops@100% 4,657,126
ssj_ops@100% per JVM 83,163

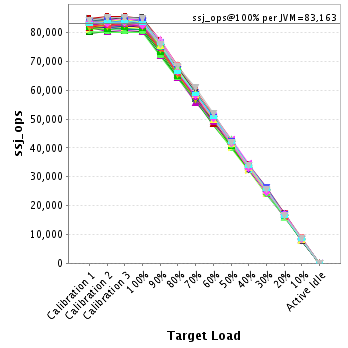

Graph of per-instance results
JVM 'Fujitsu.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,029
Calibration 2     82,405
Calibration 3     81,908
ssj_ops@calibrated=82,156
100% 99.6% 82,156 81,814
90% 89.6% 73,941 73,622
80% 80.6% 65,725 66,193
70% 71.5% 57,510 58,781
60% 60.0% 49,294 49,279
50% 49.5% 41,078 40,705
40% 39.7% 32,863 32,619
30% 30.2% 24,647 24,834
20% 20.5% 16,431 16,874
10% 10.2% 8,216 8,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,921
Calibration 2     84,301
Calibration 3     84,686
ssj_ops@calibrated=84,493
100% 100.6% 84,493 84,970
90% 90.2% 76,044 76,200
80% 80.7% 67,595 68,222
70% 69.7% 59,145 58,888
60% 61.2% 50,696 51,732
50% 50.4% 42,247 42,557
40% 40.0% 33,797 33,816
30% 30.6% 25,348 25,842
20% 19.4% 16,899 16,353
10% 10.0% 8,449 8,447
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

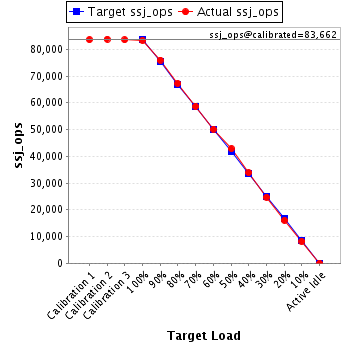

JVM 'Fujitsu.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,578
Calibration 2     83,801
Calibration 3     83,524
ssj_ops@calibrated=83,662
100% 99.6% 83,662 83,359
90% 90.8% 75,296 75,998
80% 80.4% 66,930 67,255
70% 70.2% 58,564 58,730
60% 60.0% 50,197 50,181
50% 51.2% 41,831 42,864
40% 40.5% 33,465 33,846
30% 29.6% 25,099 24,726
20% 19.3% 16,732 16,106
10% 9.8% 8,366 8,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,583
Calibration 2     82,916
Calibration 3     83,362
ssj_ops@calibrated=83,139
100% 99.0% 83,139 82,302
90% 90.3% 74,825 75,061
80% 79.7% 66,511 66,279
70% 69.8% 58,197 58,064
60% 59.9% 49,883 49,763
50% 49.4% 41,569 41,079
40% 39.9% 33,255 33,181
30% 30.1% 24,942 25,026
20% 20.0% 16,628 16,649
10% 10.1% 8,314 8,398
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,549
Calibration 2     83,857
Calibration 3     83,434
ssj_ops@calibrated=83,645
100% 99.6% 83,645 83,305
90% 90.2% 75,281 75,424
80% 79.3% 66,916 66,346
70% 70.2% 58,552 58,703
60% 60.1% 50,187 50,291
50% 50.5% 41,823 42,235
40% 39.9% 33,458 33,396
30% 29.3% 25,094 24,515
20% 19.5% 16,729 16,278
10% 10.6% 8,365 8,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,210
Calibration 2     83,492
Calibration 3     84,372
ssj_ops@calibrated=83,932
100% 99.6% 83,932 83,626
90% 89.6% 75,539 75,166
80% 80.3% 67,146 67,358
70% 70.2% 58,752 58,922
60% 60.6% 50,359 50,881
50% 49.7% 41,966 41,725
40% 39.7% 33,573 33,323
30% 29.5% 25,180 24,734
20% 20.1% 16,786 16,903
10% 9.8% 8,393 8,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,856
Calibration 2     83,456
Calibration 3     83,416
ssj_ops@calibrated=83,436
100% 99.8% 83,436 83,233
90% 90.7% 75,092 75,665
80% 79.9% 66,749 66,686
70% 69.7% 58,405 58,185
60% 59.0% 50,062 49,210
50% 50.4% 41,718 42,076
40% 39.9% 33,374 33,315
30% 29.2% 25,031 24,358
20% 19.9% 16,687 16,567
10% 10.2% 8,344 8,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,841
Calibration 2     84,859
Calibration 3     85,270
ssj_ops@calibrated=85,064
100% 100.3% 85,064 85,349
90% 89.0% 76,558 75,704
80% 80.1% 68,051 68,145
70% 69.9% 59,545 59,454
60% 59.8% 51,039 50,910
50% 49.8% 42,532 42,351
40% 39.4% 34,026 33,555
30% 29.5% 25,519 25,100
20% 19.7% 17,013 16,718
10% 9.9% 8,506 8,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,801
Calibration 2     85,388
Calibration 3     85,589
ssj_ops@calibrated=85,488
100% 99.3% 85,488 84,902
90% 90.4% 76,940 77,313
80% 80.0% 68,391 68,408
70% 70.1% 59,842 59,959
60% 59.8% 51,293 51,111
50% 49.1% 42,744 41,937
40% 39.9% 34,195 34,084
30% 30.8% 25,647 26,352
20% 20.0% 17,098 17,103
10% 9.8% 8,549 8,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,933
Calibration 2     83,388
Calibration 3     83,708
ssj_ops@calibrated=83,548
100% 100.5% 83,548 83,934
90% 89.2% 75,193 74,512
80% 79.1% 66,838 66,112
70% 70.5% 58,484 58,921
60% 60.6% 50,129 50,657
50% 49.3% 41,774 41,206
40% 39.9% 33,419 33,377
30% 29.6% 25,064 24,765
20% 20.1% 16,710 16,810
10% 9.7% 8,355 8,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

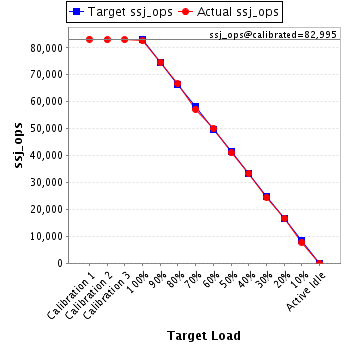

JVM 'Fujitsu.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,218
Calibration 2     83,006
Calibration 3     82,985
ssj_ops@calibrated=82,995
100% 99.5% 82,995 82,614
90% 90.0% 74,696 74,688
80% 80.3% 66,396 66,639
70% 68.9% 58,097 57,171
60% 60.3% 49,797 50,037
50% 49.4% 41,498 41,015
40% 40.2% 33,198 33,384
30% 29.6% 24,899 24,534
20% 20.1% 16,599 16,657
10% 9.4% 8,300 7,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,065
Calibration 2     82,887
Calibration 3     82,780
ssj_ops@calibrated=82,834
100% 99.1% 82,834 82,104
90% 90.0% 74,550 74,513
80% 79.9% 66,267 66,161
70% 69.0% 57,984 57,124
60% 59.8% 49,700 49,517
50% 50.2% 41,417 41,541
40% 39.2% 33,133 32,465
30% 30.1% 24,850 24,909
20% 19.3% 16,567 15,994
10% 10.1% 8,283 8,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,701
Calibration 2     80,431
Calibration 3     80,607
ssj_ops@calibrated=80,519
100% 99.8% 80,519 80,374
90% 89.4% 72,467 72,013
80% 80.0% 64,415 64,412
70% 69.4% 56,363 55,878
60% 61.0% 48,311 49,129
50% 50.1% 40,260 40,374
40% 40.3% 32,208 32,452
30% 29.8% 24,156 24,010
20% 19.7% 16,104 15,853
10% 10.1% 8,052 8,117
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

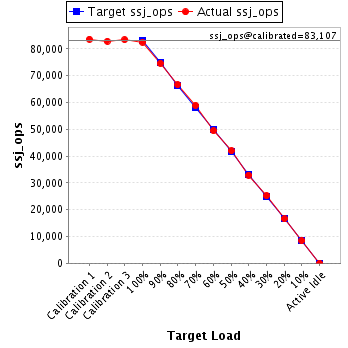

JVM 'Fujitsu.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,605
Calibration 2     82,825
Calibration 3     83,389
ssj_ops@calibrated=83,107
100% 99.3% 83,107 82,488
90% 89.8% 74,796 74,591
80% 80.2% 66,486 66,625
70% 70.9% 58,175 58,890
60% 59.5% 49,864 49,423
50% 50.5% 41,554 41,969
40% 39.6% 33,243 32,923
30% 30.3% 24,932 25,177
20% 19.9% 16,621 16,576
10% 10.2% 8,311 8,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,335
Calibration 2     84,439
Calibration 3     84,366
ssj_ops@calibrated=84,403
100% 100.0% 84,403 84,375
90% 90.2% 75,962 76,140
80% 78.6% 67,522 66,381
70% 70.5% 59,082 59,535
60% 59.5% 50,642 50,239
50% 49.5% 42,201 41,817
40% 39.3% 33,761 33,171
30% 29.9% 25,321 25,260
20% 20.3% 16,881 17,141
10% 10.1% 8,440 8,548
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,712
Calibration 2     83,665
Calibration 3     83,575
ssj_ops@calibrated=83,620
100% 100.3% 83,620 83,907
90% 90.2% 75,258 75,442
80% 81.1% 66,896 67,849
70% 70.3% 58,534 58,821
60% 60.5% 50,172 50,612
50% 49.6% 41,810 41,479
40% 39.6% 33,448 33,082
30% 30.0% 25,086 25,111
20% 20.5% 16,724 17,161
10% 9.8% 8,362 8,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,285
Calibration 2     81,652
Calibration 3     81,047
ssj_ops@calibrated=81,349
100% 99.7% 81,349 81,145
90% 89.6% 73,215 72,906
80% 80.8% 65,080 65,769
70% 70.0% 56,945 56,974
60% 60.6% 48,810 49,274
50% 50.2% 40,675 40,856
40% 40.4% 32,540 32,865
30% 29.3% 24,405 23,872
20% 19.7% 16,270 16,060
10% 10.1% 8,135 8,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,727
Calibration 2     83,752
Calibration 3     83,889
ssj_ops@calibrated=83,821
100% 100.4% 83,821 84,191
90% 90.3% 75,439 75,697
80% 79.7% 67,057 66,802
70% 70.1% 58,675 58,755
60% 59.6% 50,292 49,928
50% 50.8% 41,910 42,610
40% 39.5% 33,528 33,094
30% 30.1% 25,146 25,215
20% 19.7% 16,764 16,520
10% 9.8% 8,382 8,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

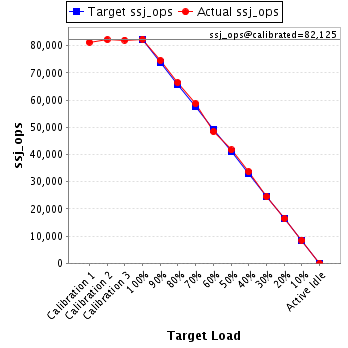

JVM 'Fujitsu.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,272
Calibration 2     82,195
Calibration 3     82,056
ssj_ops@calibrated=82,125
100% 100.3% 82,125 82,377
90% 90.7% 73,913 74,525
80% 80.9% 65,700 66,417
70% 71.4% 57,488 58,614
60% 58.9% 49,275 48,396
50% 50.8% 41,063 41,694
40% 40.9% 32,850 33,602
30% 29.8% 24,638 24,451
20% 20.0% 16,425 16,430
10% 10.3% 8,213 8,452
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,922
Calibration 2     84,645
Calibration 3     84,449
ssj_ops@calibrated=84,547
100% 99.9% 84,547 84,430
90% 89.3% 76,093 75,493
80% 79.6% 67,638 67,314
70% 69.2% 59,183 58,494
60% 60.2% 50,728 50,905
50% 50.7% 42,274 42,899
40% 41.0% 33,819 34,673
30% 29.9% 25,364 25,289
20% 20.0% 16,909 16,920
10% 10.1% 8,455 8,502
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,754
Calibration 2     83,202
Calibration 3     83,017
ssj_ops@calibrated=83,109
100% 99.1% 83,109 82,344
90% 88.6% 74,799 73,674
80% 80.3% 66,488 66,759
70% 70.3% 58,177 58,418
60% 59.8% 49,866 49,684
50% 49.1% 41,555 40,805
40% 40.6% 33,244 33,755
30% 29.8% 24,933 24,793
20% 19.8% 16,622 16,430
10% 10.0% 8,311 8,310
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,996
Calibration 2     83,181
Calibration 3     83,082
ssj_ops@calibrated=83,132
100% 100.0% 83,132 83,121
90% 88.8% 74,818 73,846
80% 81.8% 66,505 67,983
70% 69.5% 58,192 57,759
60% 59.3% 49,879 49,322
50% 50.6% 41,566 42,061
40% 40.1% 33,253 33,318
30% 29.8% 24,939 24,752
20% 19.7% 16,626 16,387
10% 10.1% 8,313 8,431
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,475
Calibration 2     84,254
Calibration 3     84,175
ssj_ops@calibrated=84,214
100% 99.9% 84,214 84,142
90% 89.1% 75,793 75,070
80% 80.6% 67,372 67,856
70% 70.0% 58,950 58,967
60% 59.5% 50,529 50,124
50% 50.0% 42,107 42,110
40% 40.3% 33,686 33,946
30% 30.0% 25,264 25,294
20% 20.0% 16,843 16,807
10% 9.5% 8,421 8,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,563
Calibration 2     82,543
Calibration 3     82,974
ssj_ops@calibrated=82,758
100% 100.1% 82,758 82,847
90% 89.7% 74,482 74,202
80% 80.4% 66,206 66,504
70% 69.0% 57,931 57,082
60% 60.0% 49,655 49,683
50% 50.3% 41,379 41,625
40% 40.3% 33,103 33,324
30% 30.1% 24,827 24,928
20% 20.3% 16,552 16,791
10% 10.2% 8,276 8,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

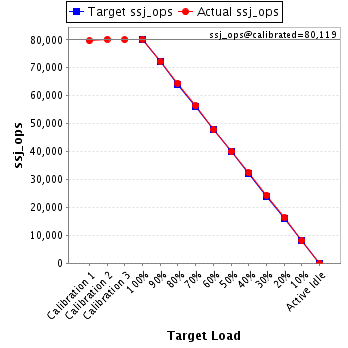

JVM 'Fujitsu.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,657
Calibration 2     80,204
Calibration 3     80,033
ssj_ops@calibrated=80,119
100% 100.2% 80,119 80,257
90% 90.1% 72,107 72,176
80% 80.5% 64,095 64,463
70% 70.5% 56,083 56,475
60% 59.7% 48,071 47,851
50% 49.9% 40,059 40,018
40% 40.4% 32,047 32,334
30% 30.5% 24,036 24,411
20% 20.3% 16,024 16,253
10% 10.1% 8,012 8,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,485
Calibration 2     83,559
Calibration 3     83,516
ssj_ops@calibrated=83,537
100% 100.3% 83,537 83,773
90% 89.6% 75,184 74,825
80% 80.4% 66,830 67,202
70% 70.6% 58,476 58,978
60% 59.4% 50,122 49,634
50% 49.1% 41,769 41,047
40% 40.6% 33,415 33,903
30% 29.5% 25,061 24,667
20% 20.0% 16,707 16,696
10% 10.0% 8,354 8,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,200
Calibration 2     83,683
Calibration 3     83,594
ssj_ops@calibrated=83,638
100% 100.0% 83,638 83,616
90% 89.7% 75,275 75,003
80% 79.4% 66,911 66,449
70% 70.4% 58,547 58,918
60% 60.7% 50,183 50,799
50% 49.0% 41,819 40,954
40% 39.7% 33,455 33,213
30% 29.7% 25,092 24,802
20% 19.7% 16,728 16,464
10% 10.3% 8,364 8,581
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

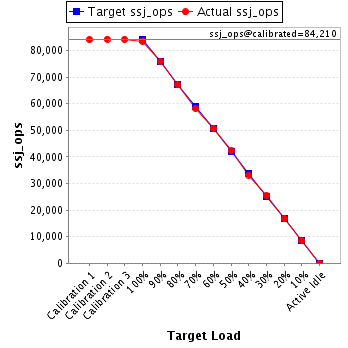

JVM 'Fujitsu.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,099
Calibration 2     84,251
Calibration 3     84,168
ssj_ops@calibrated=84,210
100% 99.2% 84,210 83,498
90% 90.0% 75,789 75,806
80% 79.7% 67,368 67,138
70% 69.1% 58,947 58,216
60% 60.2% 50,526 50,729
50% 50.3% 42,105 42,318
40% 39.4% 33,684 33,176
30% 30.2% 25,263 25,445
20% 19.9% 16,842 16,779
10% 10.2% 8,421 8,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,137
Calibration 2     84,993
Calibration 3     85,144
ssj_ops@calibrated=85,069
100% 99.3% 85,069 84,497
90% 89.9% 76,562 76,464
80% 80.5% 68,055 68,492
70% 70.2% 59,548 59,679
60% 60.7% 51,041 51,626
50% 50.2% 42,534 42,663
40% 39.2% 34,027 33,376
30% 29.9% 25,521 25,456
20% 20.3% 17,014 17,250
10% 10.3% 8,507 8,768
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,314
Calibration 2     83,912
Calibration 3     84,193
ssj_ops@calibrated=84,052
100% 99.6% 84,052 83,756
90% 91.0% 75,647 76,458
80% 79.6% 67,242 66,907
70% 70.5% 58,837 59,271
60% 60.1% 50,431 50,522
50% 49.7% 42,026 41,746
40% 39.2% 33,621 32,964
30% 30.1% 25,216 25,307
20% 20.1% 16,810 16,928
10% 9.9% 8,405 8,302
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,808
Calibration 2     82,219
Calibration 3     82,071
ssj_ops@calibrated=82,145
100% 99.9% 82,145 82,056
90% 89.3% 73,930 73,318
80% 80.3% 65,716 65,923
70% 70.7% 57,501 58,042
60% 60.2% 49,287 49,436
50% 49.8% 41,072 40,876
40% 40.0% 32,858 32,876
30% 30.0% 24,643 24,657
20% 19.5% 16,429 15,986
10% 9.9% 8,214 8,172
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,351
Calibration 2     83,323
Calibration 3     83,349
ssj_ops@calibrated=83,336
100% 99.3% 83,336 82,747
90% 90.2% 75,002 75,196
80% 80.4% 66,669 67,028
70% 69.8% 58,335 58,134
60% 60.0% 50,001 49,984
50% 49.7% 41,668 41,383
40% 40.3% 33,334 33,605
30% 30.0% 25,001 25,015
20% 19.9% 16,667 16,543
10% 10.1% 8,334 8,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

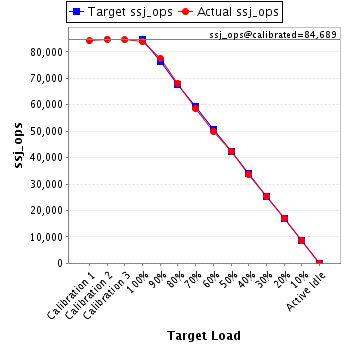

JVM 'Fujitsu.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,146
Calibration 2     84,828
Calibration 3     84,551
ssj_ops@calibrated=84,689
100% 99.0% 84,689 83,826
90% 91.6% 76,220 77,537
80% 80.5% 67,751 68,151
70% 69.0% 59,283 58,460
60% 58.9% 50,814 49,891
50% 50.0% 42,345 42,384
40% 39.7% 33,876 33,623
30% 29.8% 25,407 25,239
20% 20.0% 16,938 16,912
10% 10.1% 8,469 8,515
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,301
Calibration 2     84,856
Calibration 3     85,183
ssj_ops@calibrated=85,020
100% 99.9% 85,020 84,926
90% 89.5% 76,518 76,060
80% 79.8% 68,016 67,809
70% 70.0% 59,514 59,493
60% 59.3% 51,012 50,378
50% 50.1% 42,510 42,612
40% 40.0% 34,008 34,015
30% 30.1% 25,506 25,619
20% 20.0% 17,004 16,977
10% 10.0% 8,502 8,519
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

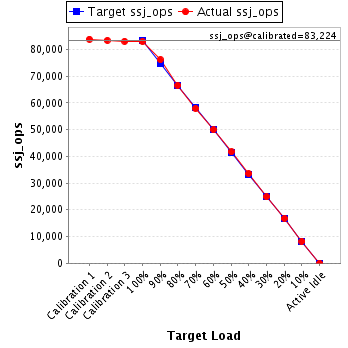

JVM 'Fujitsu.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,830
Calibration 2     83,383
Calibration 3     83,064
ssj_ops@calibrated=83,224
100% 99.7% 83,224 82,964
90% 91.5% 74,901 76,172
80% 80.0% 66,579 66,557
70% 69.6% 58,256 57,937
60% 60.0% 49,934 49,957
50% 50.1% 41,612 41,674
40% 40.3% 33,289 33,544
30% 29.8% 24,967 24,828
20% 20.2% 16,645 16,804
10% 9.9% 8,322 8,205
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,021
Calibration 2     84,017
Calibration 3     84,149
ssj_ops@calibrated=84,083
100% 99.9% 84,083 83,972
90% 89.3% 75,675 75,118
80% 80.5% 67,266 67,715
70% 69.2% 58,858 58,170
60% 59.7% 50,450 50,198
50% 49.7% 42,042 41,748
40% 40.4% 33,633 33,969
30% 31.3% 25,225 26,294
20% 20.0% 16,817 16,812
10% 10.0% 8,408 8,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,313
Calibration 2     80,139
Calibration 3     80,113
ssj_ops@calibrated=80,126
100% 99.9% 80,126 80,056
90% 89.5% 72,114 71,728
80% 80.0% 64,101 64,112
70% 71.0% 56,088 56,883
60% 60.0% 48,076 48,109
50% 49.6% 40,063 39,734
40% 40.1% 32,051 32,132
30% 29.8% 24,038 23,915
20% 20.3% 16,025 16,249
10% 9.7% 8,013 7,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,997
Calibration 2     81,797
Calibration 3     81,579
ssj_ops@calibrated=81,688
100% 100.2% 81,688 81,836
90% 90.0% 73,519 73,559
80% 80.2% 65,350 65,514
70% 70.8% 57,182 57,817
60% 59.6% 49,013 48,715
50% 49.2% 40,844 40,152
40% 39.5% 32,675 32,307
30% 29.4% 24,506 24,020
20% 20.4% 16,338 16,662
10% 9.5% 8,169 7,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,018
Calibration 2     83,788
Calibration 3     83,673
ssj_ops@calibrated=83,731
100% 99.9% 83,731 83,648
90% 89.3% 75,358 74,754
80% 79.3% 66,985 66,365
70% 70.3% 58,611 58,850
60% 59.4% 50,238 49,721
50% 49.3% 41,865 41,269
40% 40.1% 33,492 33,579
30% 29.5% 25,119 24,693
20% 19.9% 16,746 16,701
10% 10.3% 8,373 8,631
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,122
Calibration 2     83,844
Calibration 3     83,944
ssj_ops@calibrated=83,894
100% 100.3% 83,894 84,171
90% 89.3% 75,505 74,921
80% 81.1% 67,115 68,028
70% 69.4% 58,726 58,209
60% 60.4% 50,336 50,637
50% 50.0% 41,947 41,927
40% 38.7% 33,558 32,457
30% 29.6% 25,168 24,865
20% 20.3% 16,779 17,041
10% 10.1% 8,389 8,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,021
Calibration 2     83,824
Calibration 3     83,952
ssj_ops@calibrated=83,888
100% 100.7% 83,888 84,466
90% 90.1% 75,499 75,555
80% 80.8% 67,110 67,820
70% 70.1% 58,722 58,800
60% 59.9% 50,333 50,246
50% 49.1% 41,944 41,224
40% 40.5% 33,555 33,989
30% 30.4% 25,166 25,502
20% 19.9% 16,778 16,655
10% 10.0% 8,389 8,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

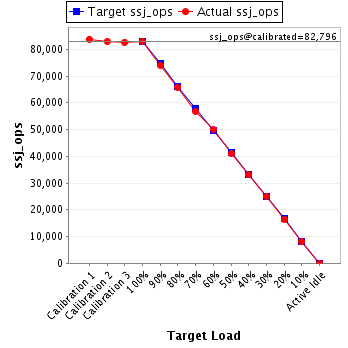

JVM 'Fujitsu.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,769
Calibration 2     82,942
Calibration 3     82,650
ssj_ops@calibrated=82,796
100% 100.3% 82,796 83,031
90% 89.5% 74,517 74,086
80% 79.5% 66,237 65,850
70% 68.5% 57,957 56,694
60% 60.2% 49,678 49,861
50% 49.4% 41,398 40,917
40% 39.9% 33,119 33,010
30% 30.1% 24,839 24,917
20% 19.9% 16,559 16,507
10% 9.7% 8,280 7,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

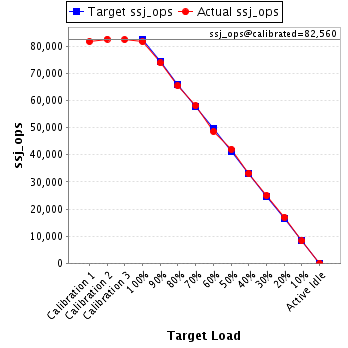

JVM 'Fujitsu.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,795
Calibration 2     82,649
Calibration 3     82,472
ssj_ops@calibrated=82,560
100% 99.0% 82,560 81,751
90% 89.5% 74,304 73,909
80% 79.3% 66,048 65,470
70% 70.4% 57,792 58,095
60% 58.9% 49,536 48,606
50% 50.9% 41,280 42,043
40% 40.2% 33,024 33,168
30% 30.3% 24,768 24,992
20% 20.6% 16,512 16,966
10% 10.0% 8,256 8,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,776
Calibration 2     81,686
Calibration 3     82,023
ssj_ops@calibrated=81,854
100% 100.7% 81,854 82,413
90% 90.9% 73,669 74,415
80% 79.7% 65,484 65,254
70% 69.4% 57,298 56,825
60% 60.6% 49,113 49,583
50% 50.2% 40,927 41,107
40% 39.8% 32,742 32,574
30% 30.1% 24,556 24,625
20% 20.3% 16,371 16,640
10% 9.8% 8,185 7,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,544
Calibration 2     80,986
Calibration 3     81,506
ssj_ops@calibrated=81,246
100% 99.8% 81,246 81,062
90% 89.8% 73,121 72,944
80% 79.4% 64,997 64,485
70% 70.6% 56,872 57,339
60% 60.3% 48,748 48,967
50% 49.5% 40,623 40,239
40% 40.1% 32,498 32,540
30% 30.7% 24,374 24,918
20% 19.8% 16,249 16,095
10% 9.9% 8,125 8,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,757
Calibration 2     82,036
Calibration 3     82,613
ssj_ops@calibrated=82,324
100% 99.8% 82,324 82,178
90% 89.8% 74,092 73,949
80% 79.6% 65,860 65,508
70% 68.9% 57,627 56,717
60% 61.1% 49,395 50,275
50% 50.1% 41,162 41,227
40% 40.0% 32,930 32,932
30% 30.2% 24,697 24,845
20% 20.1% 16,465 16,551
10% 10.0% 8,232 8,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,995
Calibration 2     82,102
Calibration 3     82,741
ssj_ops@calibrated=82,422
100% 99.5% 82,422 82,050
90% 90.3% 74,179 74,425
80% 80.3% 65,937 66,215
70% 69.6% 57,695 57,403
60% 58.9% 49,453 48,551
50% 50.5% 41,211 41,625
40% 39.7% 32,969 32,708
30% 30.5% 24,726 25,123
20% 20.2% 16,484 16,620
10% 10.0% 8,242 8,248
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,193
Calibration 2     83,963
Calibration 3     84,192
ssj_ops@calibrated=84,077
100% 99.9% 84,077 83,969
90% 89.5% 75,669 75,219
80% 79.6% 67,262 66,942
70% 69.6% 58,854 58,547
60% 60.7% 50,446 51,027
50% 49.5% 42,039 41,631
40% 40.4% 33,631 33,930
30% 30.2% 25,223 25,399
20% 19.6% 16,815 16,441
10% 9.7% 8,408 8,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,033
Calibration 2     84,430
Calibration 3     85,059
ssj_ops@calibrated=84,745
100% 100.6% 84,745 85,219
90% 89.6% 76,270 75,943
80% 80.3% 67,796 68,009
70% 69.8% 59,321 59,164
60% 59.7% 50,847 50,628
50% 49.2% 42,372 41,676
40% 39.7% 33,898 33,607
30% 29.9% 25,423 25,371
20% 20.2% 16,949 17,095
10% 9.4% 8,474 7,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,430
Calibration 2     82,521
Calibration 3     83,016
ssj_ops@calibrated=82,768
100% 100.0% 82,768 82,769
90% 89.8% 74,491 74,354
80% 79.4% 66,215 65,732
70% 70.1% 57,938 58,022
60% 60.0% 49,661 49,674
50% 50.3% 41,384 41,631
40% 40.0% 33,107 33,106
30% 30.2% 24,830 25,030
20% 19.6% 16,554 16,216
10% 10.2% 8,277 8,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,741
Calibration 2     83,926
Calibration 3     83,902
ssj_ops@calibrated=83,914
100% 100.6% 83,914 84,380
90% 89.6% 75,522 75,158
80% 80.1% 67,131 67,211
70% 69.8% 58,740 58,580
60% 60.1% 50,348 50,401
50% 50.5% 41,957 42,348
40% 40.3% 33,565 33,830
30% 30.6% 25,174 25,644
20% 20.0% 16,783 16,774
10% 9.7% 8,391 8,109
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,622
Calibration 2     83,373
Calibration 3     83,598
ssj_ops@calibrated=83,485
100% 99.2% 83,485 82,815
90% 89.9% 75,137 75,027
80% 80.3% 66,788 67,075
70% 70.1% 58,440 58,505
60% 60.1% 50,091 50,215
50% 49.2% 41,743 41,099
40% 40.5% 33,394 33,773
30% 29.0% 25,046 24,245
20% 19.7% 16,697 16,458
10% 9.7% 8,349 8,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,476
Calibration 2     83,658
Calibration 3     84,400
ssj_ops@calibrated=84,029
100% 99.5% 84,029 83,616
90% 89.9% 75,626 75,551
80% 79.9% 67,223 67,115
70% 69.8% 58,820 58,636
60% 59.5% 50,417 49,978
50% 49.5% 42,014 41,586
40% 39.7% 33,612 33,349
30% 30.2% 25,209 25,364
20% 20.1% 16,806 16,857
10% 9.9% 8,403 8,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,832
Calibration 2     82,959
Calibration 3     83,481
ssj_ops@calibrated=83,220
100% 99.1% 83,220 82,486
90% 91.5% 74,898 76,113
80% 79.8% 66,576 66,437
70% 69.9% 58,254 58,202
60% 60.1% 49,932 50,055
50% 49.9% 41,610 41,525
40% 39.5% 33,288 32,868
30% 29.4% 24,966 24,486
20% 20.6% 16,644 17,164
10% 10.1% 8,322 8,391
Active Idle   0 0

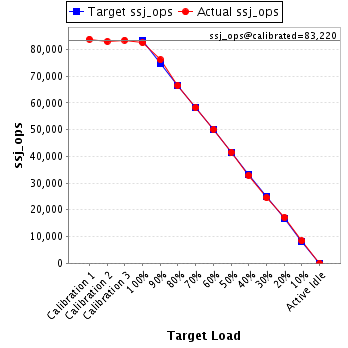

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,050
Calibration 2     83,624
Calibration 3     83,687
ssj_ops@calibrated=83,655
100% 99.7% 83,655 83,374
90% 91.2% 75,290 76,290
80% 79.4% 66,924 66,418
70% 70.2% 58,559 58,740
60% 60.6% 50,193 50,679
50% 50.3% 41,828 42,078
40% 40.5% 33,462 33,876
30% 30.8% 25,097 25,728
20% 19.5% 16,731 16,325
10% 9.9% 8,366 8,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Fujitsu.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,130
Calibration 2     85,093
Calibration 3     85,101
ssj_ops@calibrated=85,097
100% 99.5% 85,097 84,698
90% 89.1% 76,587 75,810
80% 80.3% 68,077 68,344
70% 71.5% 59,568 60,817
60% 60.9% 51,058 51,829
50% 49.2% 42,548 41,874
40% 40.0% 34,039 34,032
30% 30.0% 25,529 25,566
20% 19.4% 17,019 16,483
10% 10.1% 8,510 8,579
Active Idle   0 0

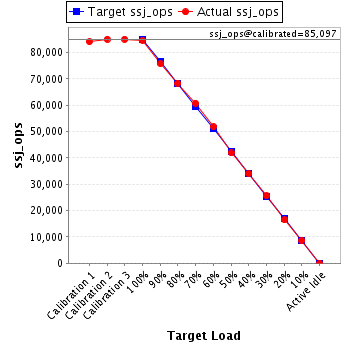

Graph of results
See the JVM Instance Performance Report for additional details.
